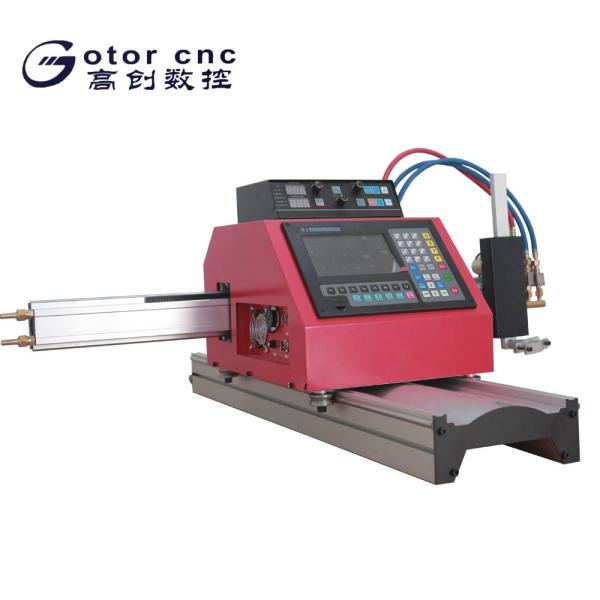

Stepper Motor Portable CNC Plasma Cutting Machine For Metal 1500*3000

    Buy cheap Stepper Motor Portable CNC Plasma Cutting Machine For Metal 1500*3000 from wholesalers

    Buy cheap Stepper Motor Portable CNC Plasma Cutting Machine For Metal 1500*3000 from wholesalers
    • Buy cheap Stepper Motor Portable CNC Plasma Cutting Machine For Metal 1500*3000 from wholesalers

    Stepper Motor Portable CNC Plasma Cutting Machine For Metal 1500*3000

    Ask Lasest Price
    Brand Name : gaochuang
    Model Number : GC-1530
    Certification : CE ISO9001
    Price : 1699~1999 USD
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 100 set per month
    Delivery Time : 5-8 working day
    • Product Details
    • Company Profile

    Stepper Motor Portable CNC Plasma Cutting Machine For Metal 1500*3000

    High Quality Portable Cnc Metal Cutter Machine Plasma Cutting Machine

    Product Application

    Portable cnc flame/plasma cutting machine portable cnc flame/plasma cutting machine can be programmed to cut any plane shape parts composed of beeline and arc ,which are same as large gantry cutting machines . It is equipped with a 5.7 inch LED with dynamic and static graphical display .It is directly perceived and very easy to learn .It can be programmed to cutting parts directly , and also can be operated in computer translating instructions into a program file by CAD program , and then deducing it via U hardware .The standard positioning of this machine is flame cutting ,external hanging plasma cutter is also workable

    For the Date Paramete


    Technical specification
    ModelGC-1530
    VoltageAC 220/±10%VAC 50/60Hz
    Cutting modeO2/C3H8 or C2H2
    Effective cutting range(mm)1500*3000
    Cutting speed(mm/min)0-8000mm/min
    Cutting thickness(Plasma)0-20mm
    Move precision±0.2mm/m
    Plasma THCYES
    Processing thickness(mm)0-15mm
    Cutting systemShanghai Fangling F2100B control system
    Host weight(kg)33
    Gas pressure(Mpa)Max.0.1
    Oxygen pressure(Mpa)Max.0.7
    Type of gasC3H8 C2H2
    Emergency stopYes
    Working temperature-5~45℃
    Power8.5kw
    ARCUntouched arc striking
    Processing MaterialsIron, stainless steel, carbon steel, copper sheets; aluminum sheets, galvanized sheets, Titanium plates and other kinds metal

    Main Features

    1. Plasma power

    Huayuan 100A power

    Famous brand made in china, low price, Cutting thickness 0.3-22mm

    2. Controller system

    Beijing Start control system,

    configured 7-inch high-resolution true color LCD display. can be dynamically cut graphics running track.

    3. Motor

    450B stepper motors

    With high quality & stronger power, ensure machine work very well.

    4. Driver

    Leadshine 860H Drivers

    It can run with smaller noise, lower heating, smoother movement and have better performances at higher speed.Save human strength and save time.

    5. Automatic Arc Pressure adjustable

    Beijing Start

    Adjust the torch height during cutting. Perforated height self-positioning

    6. softwareFastCam
    nesting software for machine. Using it, and finally export G code, then can be recognized by machine

    1) This is the first time I use this kind of machine, is it easy operate?

    There are guide video that show how to use machine and english instruction book send to you with machine.

    If there is still have any question, we will provide free professinal guide for you until you could use machine well.

    2) If machine have any problem after I ordered it, how could I do?

    Free parts send to you in machine warranty period if machine have any problem.

    Free after-sales service life for machine, please feel free contact us if your machine have any problem.

    3) MOQ ?

    Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
