KD series 4.3/7/10 inch HMI

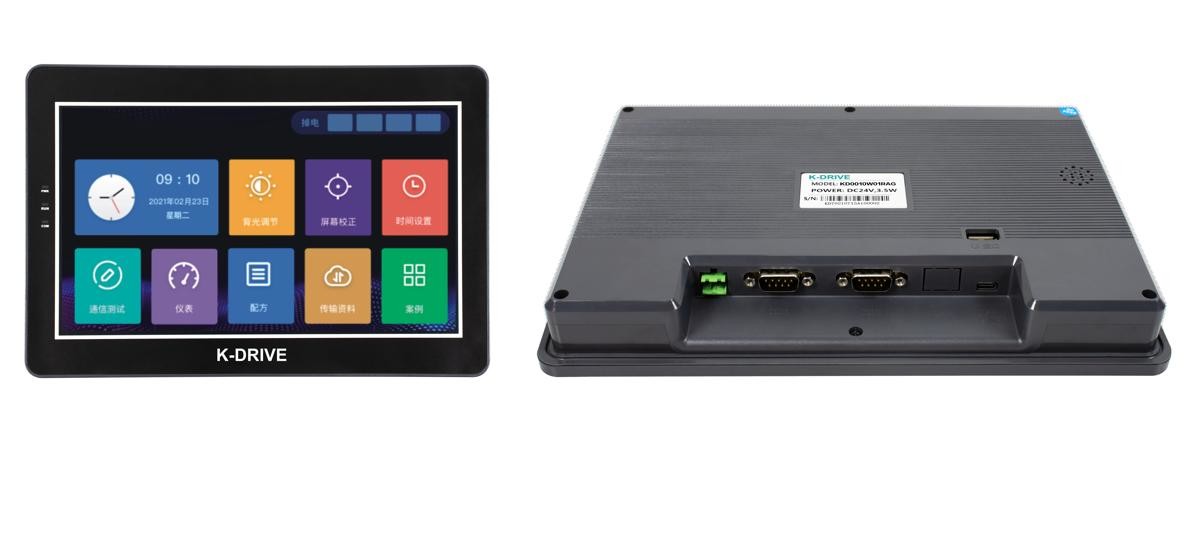

7.0" TFT Color HMI Ethernet Port Touch Screen All in One Integrated
Digital and Analog Input Output
Brand: K-Drive
Certificate: CE, RoHS
Advantages
Thanks to sophisticated engineers, scientific producing
workmanship, rigorous quality control systems and management team,
K-Drive frequency inverters are equipped with advanced features.
4.3 inch
7 inch
10 inch
Applications
Why choose K-Drive HMI?
In the trend of advocating smart and simple industrial automation,
environmentally friendly products, value-added solutions, K-Drive,
as one of the world's leading drive manufacturers aggressively
investing in R&D, production, and continuous quality
improvement, is well positioned to provide its customers with
technology-driven, performance-outstanding products such as VFDs,
wind power converters, servo drives, HEV/EV drives, helping its
customers save energy and increase industrial productivity with
sustainability on the one hand, and enhancing their entire
value-chain quality, delivery, and services on the other hand.
K-Drive VS Other brands
| Performance | Common brands | K-Drive |
|---|
| Applicable motors | Asynchronous motors | Asynchronous /synchronous motors |
| Starting torque | 2.0Hz, 150% (sensor-less vector control) 0Hz, 180% (closed-loop
vector control) | 0.5Hz, 180% (sensor-less vector control) 0Hz, 200% (closed-loop
vector control) |
| Speed adjustable range | 1:100 (SVC), 1:1000 (VC) | 1:200 (SVC), 1:1000 (VC) |
| Ambient temperature (no derating required) | -10-40ºC | -10-50ºC (for most of the models) |
| Rated input voltage | 208VAC-400VAC | 208VAC-480VAC |
| Communication | Modbus RTU//ASCII | Modbus RTU//ASCII Profibus-DP, CANopen, etc. |
| Position control (fixed length, or angular positioning) | × | √ |
| Field weakening control | × | √ |
| Autotune online | Online | Online & Offline |
| Short-time ramp-up | Trip | No trip |
| Customized features (software and/or hardware) | Unprocurable or no experience | Procurable with rich experience |
Production
In production, rigorous quality control is implemented on
components, circuit boards, and the finished goods, assuring
products without defects.
Packaging and logistics
All drives are well packed before shipment, fit for air shipment,
sea transportation, and express delivery. Customers are able to
call its own nominated forwarder or consult K-Drive logistics
department for worldwide shipment services.
* Low-power inverters are packed in cardboard box, and others are
in plywood cases.
* Plenty of transportation procurable globally in accordance with
customer demand or K-Drive expertise.
How to select human-machine interface ?
HMI (Human-Machine Interface) and Inverter can work together in
various industrial applications such as factory automation,
robotics, and HVAC systems.
An HMI is a graphical interface that allows operators to interact
with machines and systems. It typically includes a display screen,
input buttons, and a touchpad or mouse. The HMI can be used to
monitor the status of the system, adjust its settings, and provide
feedback to the operator.
On the other hand, an Inverter is an electronic device that
converts DC (direct current) into AC (alternating current). In
industrial applications, it is often used to control the speed of
electric motors by varying the frequency of the AC output.
When an HMI and Inverter are used together, the HMI can be used to
send commands to the Inverter, such as setting the speed of the
motor. The Inverter, in turn, can send feedback to the HMI about
the status of the motor, such as its speed, current, and
temperature.
This two-way communication between the HMI and Inverter allows
operators to monitor and control the motor speed and other
parameters in real-time, ensuring that the system operates
efficiently and safely.
