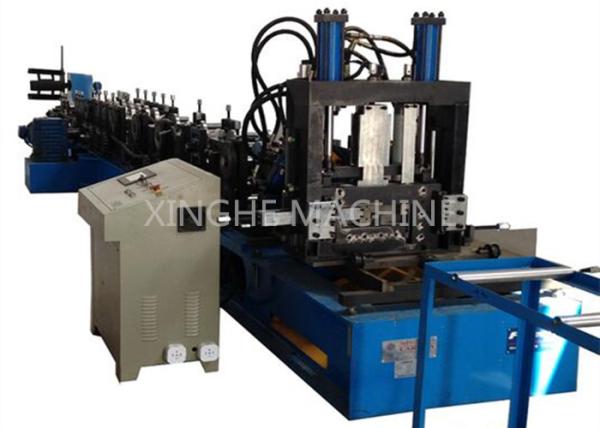

    80-300mm CZ Purlin Roll Forming Machine For 1.5-4mm Thickness Purlin

    Ask Lasest Price
    Brand Name : XINGHE
    Model Number : XH-C purlin
    Certification : BV,SGS, CE,ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 30 SETS / MONTH
    Delivery Time : 20 Working days
    • Product Details
    • Company Profile

    80-300mm CZ Purlin Roll Forming Machine For 1.5-4mm Thickness Purlin

    1. The Chart of Process flow

    80-300mm C Z Purlin Roll Forming Machine For 4mm Thickness Purlin

    Manual de-coiler --- Electric Feeding --- Servo motor feeding ----oll Forming Machine------Computer Control Cabinet---Automatic cutting Mechanism ---Run-out Tables

    2. The equipment including

    Roll forming machine1 set
    Hydraulic cutter1 set
    Electrical control system1 set
    Hydraulic system1 set
    Normal run out table3 PC 1m*1m
    Manual de-coiler1 set Max. loading 5 T

    3 Technical specification and details

    (1) Hydraulic Ue-coiler

    Un-power: manual de-coiler; Max. Capacity: 7T

    Suit for coil inner diameter: 508mm, suitable coil Max. out diameter: 1000mm

    Manual power expands the coil inner surface.


    (2) Roll forming machine


    Description
    Product NameC/Z Purlin Rool Forming Machine
    Machine Size11000mm*1500mm*1000mm(Actual size based)
    Machine WeightAbout 10 T
    Frame Materials350H steel
    Middle plate thickness14mm
    Forming ShaftDiameter80mm
    Material40Cr Heat treatment
    Forming rollerGr15Bearing steel, whole quenching, HRC58
    Cutting SystemHydraulic Cutting
    Drive mode6 points sprocket, chain / 1 inch sprocket, chain
    Main Engine power11.0W with cycloidal reducer
    Fast moving motor power2.2kw/set (A total of one)
    Forming Rows18 rows
    Forming Speed10-16m/min
    Pressing Thickness1.5-3mm
    Coil materialGalvanized Coils: Q195-Q235
    Punching die, cutting machine blade materialHigh quality Cr12MoV
    Punching, cutting machine cylinder number2
    Hydraulic station power5.5kw
    Hydraulic pressureMax30Mp
    Electric Control SystemInternational, domestic brands, mainly by Panasonic, Yaskawa, OMRON brand
    TransducerSIEMENS
    EncoderOMRON
