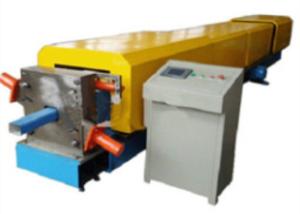

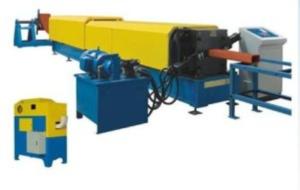

1. Square Downspout Roll Forming Machine Applied Range:
The color steel sheet is widely used in villa , holiday village ,
gardening industrial building , storage , scenic tourist area ,
pavilions , hotel , exhibition hall and so on . And we are emphasis
on the detail and the technical update constantly.
2. Square Downspout Roll Forming Machine Components:
Uncoiler, Coil sheet guiding device, Main roll forming system,Post
cutting device,Hydraulic station, PLC control system and Support
table.
3. Square Downspout Roll Forming Machine Working Flow:
manual uncoiler—Roll forming machine—computer control
system—hydraulic control system—form cutter
4. Main parameter
material | coating rolled steel, etc |
thickness | 0.4-1mm |
Forming specifications | depending on specific requirements of customers |
Forming speed | 10-15m/min |
Main motor power | 5.5-7.5 kw |
Cutting mode | pneumatic flying saw tracking cutting |
Rolling material | 45# steel |
Diameter of the roller | Φ80mm |
Control system | PLC systems from Mitsubishi and Panasonic products |
Optional accessories | hydraulic uncoiler |
5. Supply List
A. Decoiler
1) Decoil speed: according to forming machine
2) Capacity: 5T
3) Max width of coil: 500mm
4) Max outside diameter of coil: 1300mm
5) Inside diameter of coil: 500mm
6) Dimension: 900mm*1100mm*1200mm
B. Feeding oriented plate
C. Forming system
1) Motor power: 5.5kw
2) Forming system is constituted by frame, chain, cold forming
molds, and so on.
3) Frame is welded by complete steel.
4) Material of molds is bearing steel, which is produced precisely
and chromium plated.
5) Molds are supported by connected medium plate.
6) Cycloid reduction motor
7) Thickness of forming sheet could be adjusted.
D. Cutting system
1) Cutting system is constituted by frame, cutting mold, oriented
set, hydraulic pump station and so on.
2) Material of blade: Cr12
3) Shape of blade is depending on shape of panel side view.
4) Motor power: 3kw, provided by pump station.
E. Output bearing plate
1) Width of plate: depending on width of panel
2) Length of plate: 2m
3) Number of shelves: 2 set
4) Material: welded by triangle steel
5) Rollers on the top side.
6) Height of shelf could be adjusted.
F. Hydraulic system
1) Independent outside installed hydraulic pump station, which
provide power for cutting system
2) Main parts are famous brand.
4. Quality & test standard
Quality of whole line is according to company standard.
Testing standard: Put forward objection in 30 days after adjusted
the machine well.
