Stable N1914A Agilent Power Meter Single Channel Radio Frequency

    Buy cheap Stable N1914A Agilent Power Meter Single Channel Radio Frequency from wholesalers

    Buy cheap Stable N1914A Agilent Power Meter Single Channel Radio Frequency from wholesalers
    • Buy cheap Stable N1914A Agilent Power Meter Single Channel Radio Frequency from wholesalers
    • Buy cheap Stable N1914A Agilent Power Meter Single Channel Radio Frequency from wholesalers
    • Buy cheap Stable N1914A Agilent Power Meter Single Channel Radio Frequency from wholesalers

    Stable N1914A Agilent Power Meter Single Channel Radio Frequency

    Ask Lasest Price
    Brand Name : Agilent
    Model Number : N1914A
    Certification : FCC
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : in stock
    • Product Details
    • Company Profile

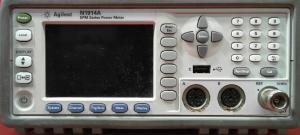

    Stable N1914A Agilent Power Meter Single Channel Radio Frequency

    N1914A Agilent RF Power Meter


    Description of N1914A RF Power Meter


    • Frequency range of 9 kHz to 110 GHz (sensor dependent)
    • Wide dynamic range of -70 to +44 dBm (sensor dependent)
    • Speed improvement by 2X for E-Series sensors: up to 400 readings/sec
    • Go beyond GPIB with LAN LXI-C and USB connectivity
    • Enhanced user interface with high-resolution color display and numeric keypad
    • Code-compatible with 438A power meter
    • Increased measurement channels: up to three channels with two additional U2000 Series power sensors connected using the optional USB hosts
    • Automated frequency/power sweep measurements with the optional external trigger in/out feature

    The Agilent N1914A offers powerful features, yet is code compatible with the popular Agilent E4418B and Agilent E4419B EPM power meters. With a reading rate at twice the speed (E-Series power sensors), flexibility of GPIB, LAN LXI-C or USB connectivity, making average power measurements has never been easier. You can connect two additional Agilent U2000 Series power sensors to the power meter via the optional USB hosts, transforming the Agilent N1914A into a 3-channel or 4-channel power meter. Plus, the new color display lets you view and analyze test data more easily.


    List of options
    004Delete Power Sensor Cable
    005Include Power Sensor Cable, 11730A Length 5-Ft (1.5m)
    0L1English language user guide, printed
    101Dual Channel Average Power Meter
    102Dual Channel Average Power Meter, Battery
    103Dual Channel Average Power Meter, Battery, 2 Rears USB Ports
    104Dual Channel Average Power Meter, VGA
    105Dual Channel Average Power Meter, Battery, 1 Front 1 Rear USB Ports, VGA
    106Dual Channel Average Power Meter, 1 Front 1 Rear USB Ports
    107Dual Channel Average Power Meter, External Trigger IN/OUT
    108Parallel Rear Panel Sensor Input Connectors and Front Panel Reference Calibrator Connector, 2 Rear USB Ports
    109Parallel Rear Panel Sensor Input Connectors and Rear Panel Reference Calibrator Connector, 2 Rear USB Ports
    111Dual Channel Average Power Meter, Battery, 1 Front 1 Rear USB Ports
    112Dual Channel Average Power Meter; Battery; 1 Front 1 Rear USB Ports; VGA; External Trigger IN/OUT
    11730ASensor Cable 1.5m/5ft (11730A)
    11730BSensor Cable 3m/10ft (11730B)
    11730CSensor Cable 6.1m/20ft (11730C)
    11730DSensor Cable 15.2m/50ft (11730D
    11730ESensor Cable 30.5m/100ft (11730E)
    127Dual Channel Average Power Meter; Battery; External Trigger IN/OUT
    167Dual Channel Average Power Meter; 1 Front 1 Rear USB Ports; External Trigger IN/OUT
    1A7ISO17025 Compliant Calibration Test Data
    200Code Compatibility for 438A
    201Single channel average power meter with VGA, trigger in/out, 1 front and 1 rear USB port
    300Battery pack - spare
    34131ATransit case for half-rack 2U high instruments (e.g., 34401A)
    34141AYellow soft carry/operating case
    34161AAccessory pouch for 34401A, 33120/250A, 34970A, 53131A, etc.
    908Rackmount kit - 1 unit with blank filler included
    909Rackmount kit for 2 units side by side
    A6JANSI Z540-1-1994 Calibration
    A6JANSI/NCSL Z540 Compliance Calibration
    C01Front calibrator, front sensor
    C02Front calibrator, parallel front and rear sensor
    C03Rear calibrator, parallel front and rear sensor
    N1918APower Analysis Manager -N1918A
    N1918A-100N1918A Power Analyzer (with PC License)
    N1918A-200N1918A Power Analyzer (with USB License Key)
    N6902AStandalone Upgrades for N1914A
    N6902A-1FPPerpetual License - Code Compatibility for 438A
    R-50C-011-3Agilent Calibration - 3 years
    R-50C-011-5Agilent Calibration - 5 years
    R-50C-021-3ANSI Z540-1-1994 Calibration - 3 years
    R-50C-021-5ANSI Z540-1-1994 Calibration - 5 years
    R-51B-001-3CReturn to Agilent Warranty - 3 years
    R-51B-001-5CReturn to Agilent Warranty - 5 years
    R-51B-001-CReturn to Agilent Warranty - 1 year


    FAQ:
    1.Can you ship order to Canada or Australia ?
    Yes,we can .We send orders worldwide .
    2. What delivery method do you use ? and delivery time ?
    We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
    3. What is your payment term?
    100% T/T payment before shipment.
    4. How can I ask any other question ?
    You can contact us online or leave us messages below .
