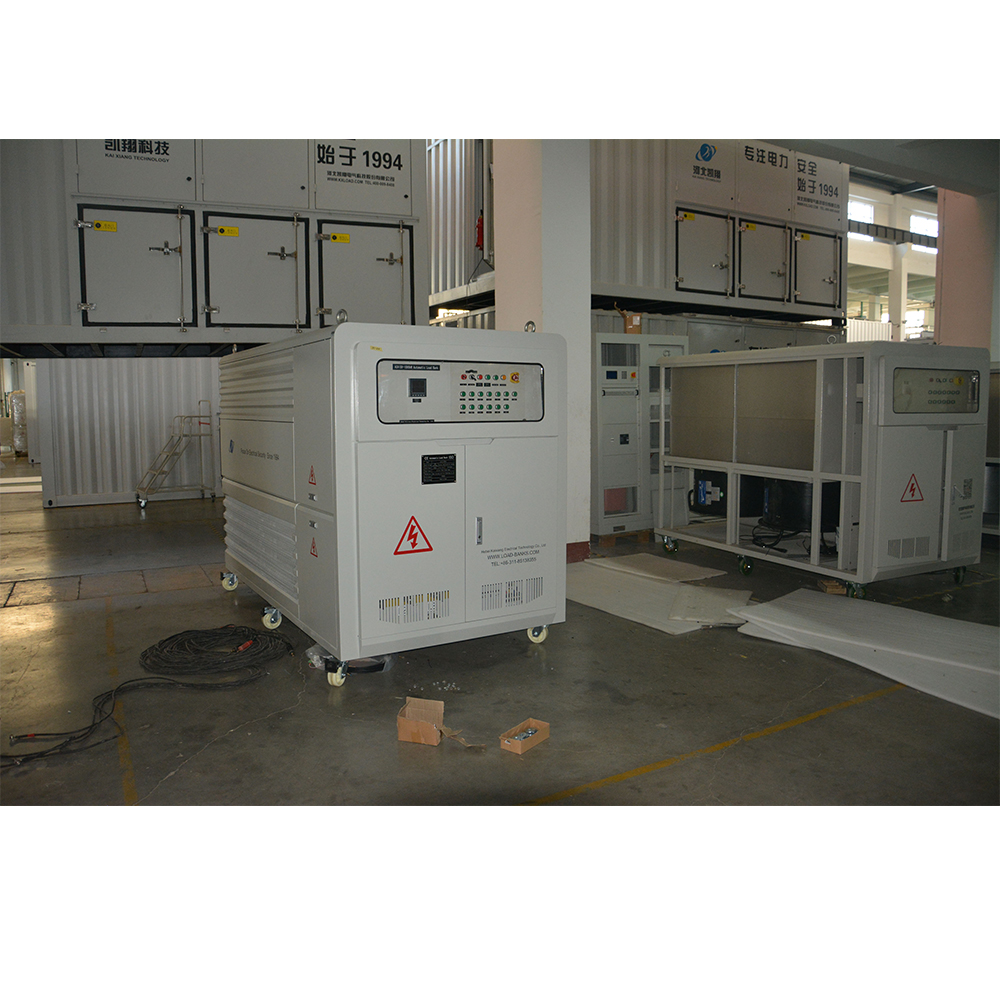

    High Power Density 3 Phase Load Bank Electrical Load Testing Equipment With Phase Voltage

    Ask Lasest Price
    Brand Name : KAIXIANG
    Model Number : 500KW
    Certification : ISO9001
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20 SETS ONE MONTH
    Delivery Time : ONE MONTH AFTER GET DEPOSIT
    • Product Details
    • Company Profile

    High Power Density 3 Phase Load Bank Electrical Load Testing Equipment With Phase Voltage


    High Power Density AC 500kw Load Bank Orange 3 Phase Load Bank With Phase Voltage

    Product Description

    Automatic AC load bank main used to test the capability and aging degree for high-power ups on-line, inverter, switch power and diesel generator set for electric power, telecom department and manufacturer. It can ensure the reliability of constant power charge that adopts uniformly stepped power input, energy consumption work model and forced air-cooling model. It is of high power density, no red hot phenomenon and automatic protection function overheated. It can’t be overheated and broken when the fans stop working. The complete machine can be operated simply and maintain convenient that adopts module design. It can test voltage and current according to client’s request, and provide scientific test measures for high-power AC equipment.


    Technical Parameters


    Rating Voltage/Frequency500Kw at 220VAC, 3 phase 4 wire, 50 Hz, phase voltage127V.
    Max Load PowerResistive load:510kW
    Load Steps11 steps, Resistive load:1kW,2kW,2kW,5kW,10kW,20kW,20kW,50kW, 100kW, 100kW, 200kW min load step: 1 kW
    PF(Power Factor)1
    Load Accuracy (each step)±5%
    Load Accuracy (overall)3%
    Display Precision0.5 grade
    Control Power380VAC, 3 phase 4 wire, 50 Hz, phase voltage220V (with a small transformer: change 277V to 220VAC Single phase
    Wire Connection

    Load power supply input——star coupling

    Control power supply input——terminal block

    InsulationF
    Way of WorkingContinuous Work
    CoolingFan forced cooling, horizontal inlet air and vertical outlet cooling
    Casing ColorGrey(RAL7035)
    Dimensions1460 mm*1980mm*1800mm(length*wide*high)
    WeightAbout 750kgs
    Temperature-10℃~+50℃
    Relative Humidity≤95%
    Altitude≤2500 meter
    ContactorSchneider
    FuseDELIXI
    Alloy Resistance(self-developed)


    Product Advantage

    Real-time parameter: Current, voltage, power, power factor, frequency, time, etc could be displayed by software.
    Safety monitoring: User can know the working conditions of load bank through software indicating light. When in abnormal stop protection, software will indicate the reasons of stopping.


    Application

    Manufacturers of standby power generators commonly use load banks to test and tune newly assembled units. When the generator has been set up in a test cell within the factory, a test engineer uses the load bank to apply a discrete, selectable electrical load to the generator and measure the response stability and endurance. During this process, the test engineer calibrates and adjusts the generator performance to ensure it meets the intended product specifications and tolerances.
