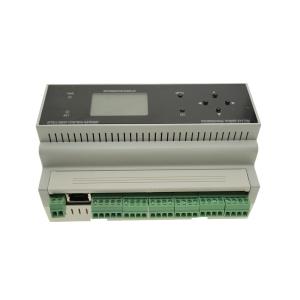

The DIN-CP1 is a intelligent control processor designed for
intelligent lighting and automation applications. DIN rail mounting
enables modular installation alongside OKYSTAR DIN rail lighting
and automation control modules and other third-party DIN rail
mountable devices.
The DIN-CP1 includes LCD display screen,button,which is able to
Inquiry the system power state,system configuration parameters.
I/O 1 – 4 | (1) 5-pin 3.81mm detachable terminal block comprising (4) digital
input/out put ports (referenced to GND) |
| Digital Input | Rated for 0-24 Volts DC, input impedance 20k ohms, logic threshold
1.25 Volts DC |
| Digital Output | 250 mA sink from maximum 24 Volts DC, catch diodes for use with
“real world” loads |
COM 1 – 5 | (5) 4-pin 3.81mm detachable terminal blocks Bidirectional RS-485
ports; Up to 115.2k baud |
| LAN | (1) 8-wire RJ45 with 2 LED indicators; 10BaseT Ethernet port; Green
LED indicates link status;Yellow LED indicates Ethernet activity |
DC-NET Power Usage | 2 Watts (0.08 Amps @ 24 Volts DC)when line power is not available |
The DIN-CP1 includes 1pcs built-In ethernet network communication
port, 4pcs IO control ports, 5pcs RS-485 BUS communication
ports.
Ethernet network communication ports support 8pcs TCP and 8pcs UDP
ports connection to control third-party devices . Each
TCP/UDP connection can be configured as sever or client way.
Ethernet network communication port provides an upward connection
TCP/UDP port, which can connect the computer , central
control system, compatible with AMX, Crestron, C4 and all
third-party control system network connection.
Ethernet network communication port provides an upward connection
TCP/UDP port, which can connect the computer , central
control system, compatible with AMX, Crestron, C4 and all
third-party control system network connection.
The DIN-CP1 has 5-way RS-485 BUS communication port, supports
DC-Net BUS protocol, DMX protocol, ModBUS RTU protocol, ModBUS
Ascii protocol, third-party protocols and other control protocols;
it supports multiple types of control panels, sensor access to
control third-party equipment The IO control port supports rising
edge, falling edge, high level or low level mode trigger.
Use html web configuration programming method, the programming
interface is stored in the host. You can make configuration
programming to control the host by login in PC web browser. The
entire programming process is simple and intuitive, which breaks
the traditional written in the programming software programming
language / graphical programming way, minimizes the program
ming capabilities of device use RS and ensures the flexibility of
device applications.
The DIN-CP1 supports up to 128 devices connection, management and
controlling. The device types include DC-Net BUS
devices, DMX devices, ModBUS Input/Output devices, and other
third-party Input/Output devices.
The DIN-CP1 built-in calendar clock, supports 10 groups scheduled
task operations.
Package:
Different package at optional:
1. Retailing Package:Paper Package
2. Bulking Packing:Colorful Package
3. Retailing Box package design according to your requirement(
Order > 1000PCS)
