    8Ch fiber video media converter PTZ Data RS485 RS232 RS422 Optional

    Ask Lasest Price
    Brand Name : E-link
    Model Number : LNK-8ACT
    Certification : ROHS,FCC,CE
    Price : negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 1000 pairs/month
    Delivery Time : 5-12 working days
    • Product Details
    • Company Profile

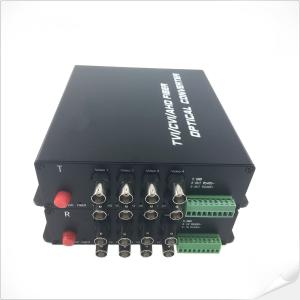

    8Ch fiber video media converter PTZ Data RS485 RS232 RS422 Optional

    8Ch Fiber Video Media Converter PTZ Data RS485 RS232 RS422 Optional


    8Ch HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fiber Converter


    Video Optical Converter Advantages

    ►Video format 25/30/50/60fps@720P & 25/30fps@1080P.

    ►Support transmission of combined AHD, HDCVI, HD-TVI or CVBS signal

    ►Controlling PTZ data RS485 simultaneously though fiber optical cable

    ►Wide-range temperature application: -15ºC ~65ºC


    Technical Indexes

    Optical connector

    FC (default), ST or SC (optional)

    Transmission Distance

    0~550M (MM) / 0~80KM (SM) (Default distance is 20Km)

    Video

    Number of Channels

    8

    Video Bandwidth

    50MHz

    Sampling Bandwidth

    8bit

    Sampling Frequency

    108MHz

    Connector

    BNC

    PTZ Data

    Protocol

    Default: RS485 (RS232/RS422 Optional)

    Connector

    3pins Terminal Blocks

    Data Rate

    0-200Kbps

    Directions

    Default :Simplex from Rx to Tx (BIDI duplex optional)

    Electrical and Mechanical

    Input Power:

    DC5V 2A

    Power Consumption:

    ≤6W

    Overview

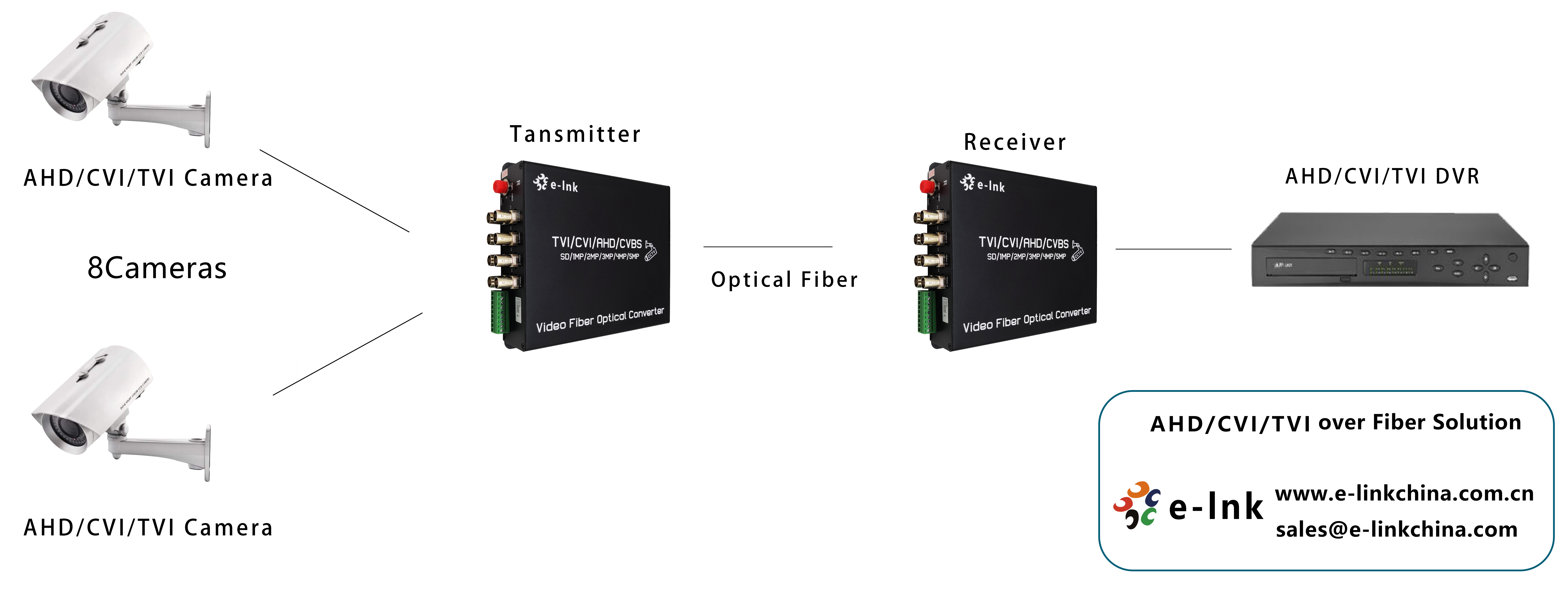

    E-link 8Ch AHD/CVI/TVI/CVBS Fiber optic transceiver can simultaneously transmit 8 channels AHD, HD-CVI, HD-TVI or CVBS Video over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment.

    Ordering Information

    Model

    Details

    LNK-8ACT-M

    8-Ch HD-AHD/CVI/TVI/CVBS video (720P, 960P HD-AHD/CVI/TVI Camera), 1km, Multimode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs

    LNK-8ACT-MR

    8-Ch HD-AHD/CVI/TVI/CVBS video (720P, 960P HD-AHD/CVI/TVI Camera) + 1-Ch Backward Data RS485 (for PTZ Cameras), 1km, Multimode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs

    LNK-8ACT-20

    8-Ch HD-AHD/CVI/TVI/CVBS video (720P, 960P HD-AHD/CVI/TVI Camera), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs

    LNK-8ACT-20R

    8-Ch HD-AHD/CVI/TVI/CVBS video (720P, 960P HD-AHD/CVI/TVI Camera) + 1-Ch Backward Data RS485 (for PTZ Cameras), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs

    LNK-8HACT-M

    8-Ch HD-AHD/CVI/TVI/CVBS video (1080P HD-AHD/CVI/TVI Camera), 500m, Multimode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs

    LNK-8HACT-MR

    8-Ch HD-AHD/CVI/TVI/CVBS video (1080P HD-AHD/CVI/TVI Camera) + 1-Ch Backward Data RS485 (for PTZ Cameras), 500m, Multimode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs

    LNK-8HACT-20

    8-Ch HD-AHD/CVI/TVI/CVBS video (1080P HD-AHD/CVI/TVI Camera), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs

    LNK-8HACT-20R

    8-Ch HD-AHD/CVI/TVI/CVBS video (1080P HD-AHD/CVI/TVI Camera) + 1-Ch Backward Data RS485 (for PTZ Cameras), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs
