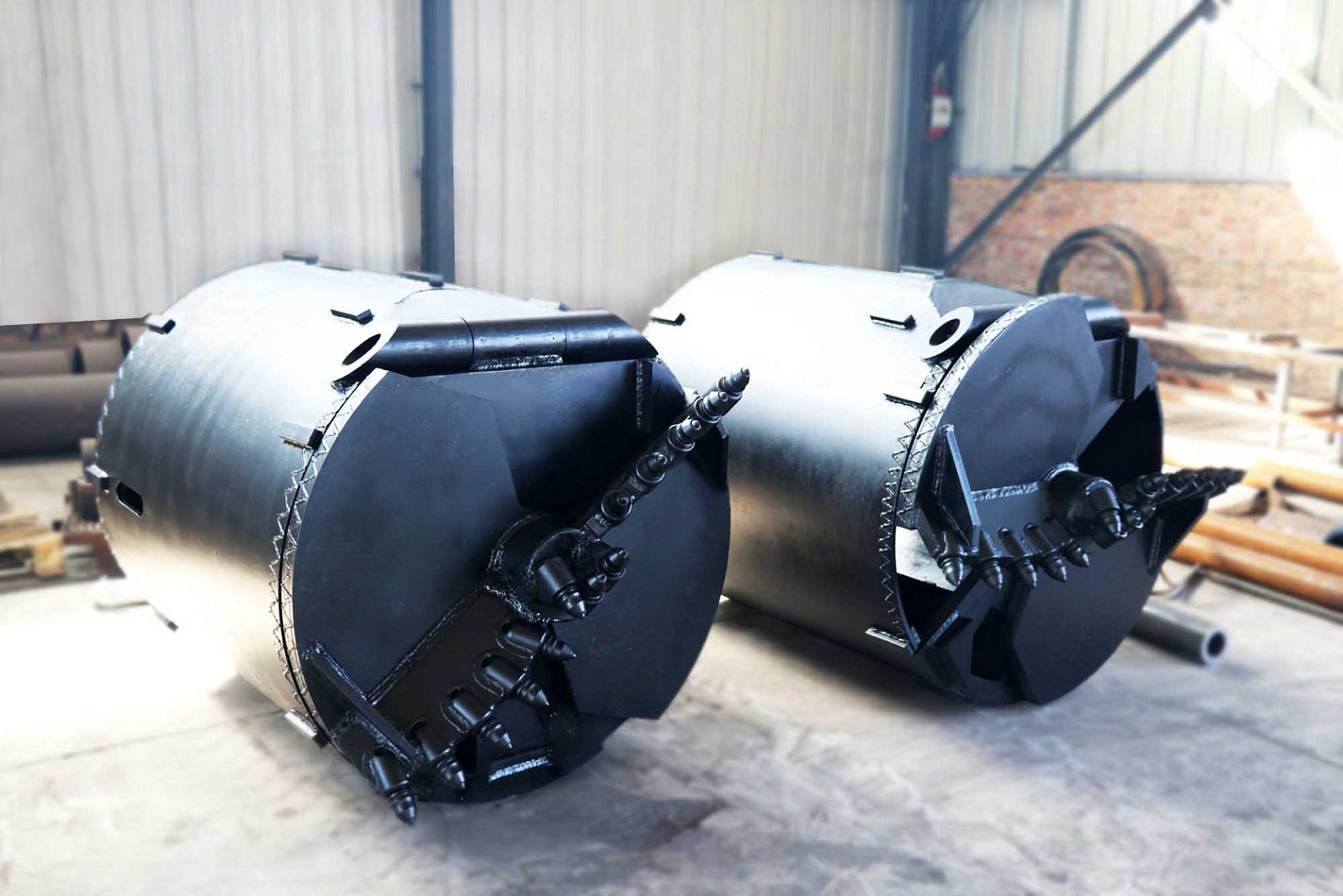

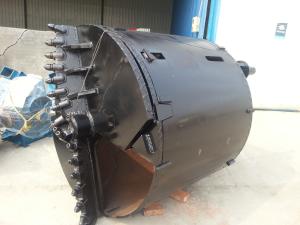

1200mm Diameter Rock Drilling Bucket with Bullet Teeth for Drill
Pipe Mud Handling
Product Description:
Introducing our 1200mm Diameter Rock Drilling Bucket, specifically
designed for efficient and reliable mud handling during drill pipe
operations. This robust bucket is equipped with bullet teeth,
ensuring exceptional performance in various drilling applications.
Key Features:
1. Versatile Barrel Design: The drilling bucket offers a choice
between a cylindrical barrel or a conical barrel (optional). This
design flexibility allows for adaptability to different drilling
conditions and project requirements.
2. Bottom Open System: The bucket provides the option of a
half-automatic or manual mechanic bottom open system. This system
ensures easy and efficient mud release during operations, with a
built-in ventilation pipe for enhanced functionality.
3. Enhanced Drilling Performance: The bucket is equipped with a
cast pilot featuring rock drilling bits and an arc guide plate
teeth arrangement. This configuration enhances drilling efficiency
and accuracy, while the double unlocking system ensures reliable
performance.
4. Efficient Ventilation: The drilling bucket features throughout
ventilation holes, allowing for effective mud flow and soil removal
during drilling operations. This helps maintain optimal drilling
conditions and improves overall productivity.
5. Wear Protection: Hard-facing strips are incorporated into the
design, providing effective wear protection against abrasive
materials encountered during drilling. This extends the bucket's
lifespan and reduces maintenance requirements.
6. Applicable Layers: The rock drilling bucket is suitable for
various ground layers, including gravel, pebble, and highly or
medium weathered rock. Its robust construction and bullet teeth
design enable efficient drilling in challenging conditions.
Choose our 1200mm Diameter Rock Drilling Bucket with Bullet Teeth
for reliable and efficient mud handling during drill pipe
operations. With its versatile barrel design, bottom open system,
enhanced drilling performance, efficient ventilation, wear
protection, and suitability for various ground layers, this
drilling bucket offers superior performance and durability. Contact
us today to explore how our product can enhance your drilling
operations.
Customizable Items
1. Cutting DIA. Custom : design various cutting diameter based on
demand, like φ850,φ1150 etc.
2. Shell HIT. Custom : design as demand, prolong or shorten,
increase of efficiency by drilling more.
3. Key Component Reinforce Custom : strengthen the key component to
extend life cycle;
4. Kelly Box Custom: custom Kelly box size based on the Kelly bar,
like 130*130, 150*150,200*200 etc;
Packaging Details for Drilling Bucket
1.100% inspection before shipment.
2. Wrapped with plastic film.
3. Fixed with iron support, wheel or pallet when necessary.
4. Packed with plastic cases and wooden cases for drilling bits,
clay teeth or other small accessories.
5.As clients' requirements.
| Technical Specification of Drilling Buckets with rock drilling
Teeth |
| drilling Dia. | Shell HIT | Shell Thickness | Weight |
| (mm) | (mm) | (mm) | (kg) |
| 600 | 1200 | 16 | 654 |
| 800 | 1200 | 16 | 926 |
| 900 | 1200 | 16 | 1100 |
| 1000 | 1200 | 16 | 1206 |
| 1200 | 1200 | 16 | 1510 |
| 1500 | 1200 | 16 | 2035 |
| 1800 | 1000 | 20 | 3370 |
| 2000 | 800 | 20 | 3784 |
| 3000 | 800 | 20 | 7200 |
Product Details
FAQ
1: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment
2: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic
Arm, drilling tools
3: What's your service ?
We can offer professional technical support and good after-sale
service to you.
Modification methods will be different according to different
models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and
hydraulic joints and others.
Before modifying, you need to confirm technical specification.
