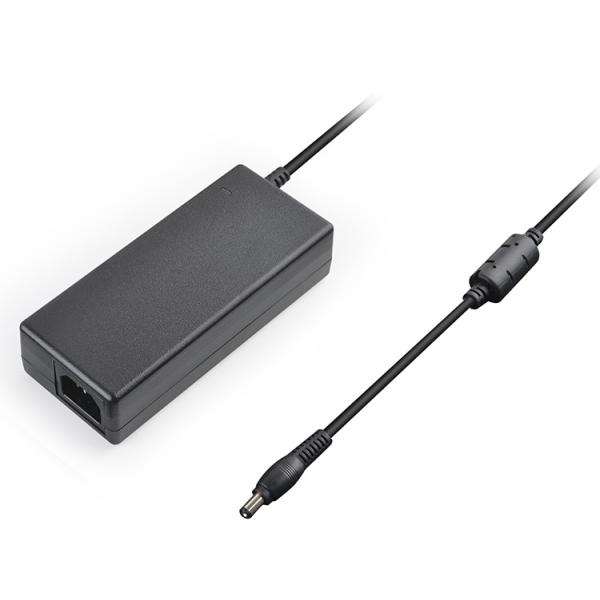

12V 8A Replacement Laptop Power Supply Adapter UL CE FCC PSE SAA Approved

Desktop AC Power Adapter

-100-240VAC Universal Input Range

-Meets Doe Efficiency Level VI

-Desktop Styles

-12V Single Output 8.3A

-Regulated Output with Low Ripple

-Impact-Resistant Polycarbonate Enclosure

-No load Power Consumption <0.25W

-Limited Power Source

-Certified to UL/EN/IEC60950-1

Specifications

Input Voltage Range

VAC

100-240Vac 50/60Hz

Inrush Current at 110VAC, 25℃

A

Input Current(Max)

A

2.5A(100VAC Input)

Power Factor

-

Meets EN61000-3-2

Leakage Current(220VAC 60Hz)

mA

Hold Up Time at 110VAC input, full load

ms

Temperature Coefficient

℃

±0.05%/℃

Voltage Accuracy

%

±2%

Adjustment Range

-

None

Min. Load

A

None

Total Regulation

-

±5%

Ripple & Noise

mV

120mV

Short Circuit Protection

%

Continuous - hiccup mode

Over Voltage Protection

℃

110-150% of nominal (Cycle input power to reset)

Efficiency at Average Load

-

88% min

Operation Temperature

-

0 to +60℃, derating linearly to 50% load above 40℃

Storage Temperature

-

-10 to +85℃

Humidity (non condensing)

-

10-90% RH

Cooling

-

Convection

Withstand Voltage

-

Input to Ground 1.5kVAC, Input to Output 3kVAC (Output is connected to Ground)

Vibration (non condensing)

-

23.52m/s2 (10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)

Shock

-

< 196.1 m/s2 (20G)

Safety Agency Certifications

-

UL60950-1, EN609501-1, IEC60950-1, CE Mark

DOE Regulation

-

VI

Off-Load Power Consumption

mW

<210mW

Conducted & Radiated EMI

-

EN55023-B, FCC Class B

Immunity

-

EN55024

Weight

G

480g

Size(WxLxH)

mm

140x60x30mm

Cable Length and Thickness

mm

1200mm

AC Input Connector

-

IEC 320-C6/C8/C14

Output Connector

mm

5.5x2.1mm (Accept more request)

MTBF 100%, 25℃

Hours

50,000 hours

Warranty

Years

3 years
