    8P8C Unshielded 1×5 Multiple-Port RJ45 Connector For Ethernet Switch

    Ask Lasest Price
    Brand Name : CSCE
    Model Number : 56A-15880011X01
    Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 150K pcs/day
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

    8P8C Unshielded 1×5 Multiple-Port RJ45 Connector For Ethernet Switch

    8P8C Unshielded 1×5 Multiple-Port RJ45 Connector For Ethernet Switch

    Product Details:


    Specification:Multiple-port RJ45Cross Part NO:56A-15880011X01
    Mounting:Thru-hole R/ASamples:Available 2-3 Pcs
    LED:WithoutFiles:PDF/3D/ISG/Stp/Step/Datashee

    Product Specification:


    Contact Resistance30milliohm Max
    Housing MaterialPBT/PA66/PA46
    Contact MaterialDiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
    Insulation Resistance500 MΩ MIN @ 500V DC.
    Withstand Voltage1000V AC 50Hz or 60Hz,1MIN.
    Mating/Unmating Force2.2KG.F MAX.
    Voltage Rating125v
    Operating Life750 Cycles MIN.
    Current Rating1.5A
    Insert MaterialUL94V-0
    Operation Temperature﹣40℃ to +85℃
    Retention Strength7.7KG.F MIN Between Jack And Plug
    Storage Temperature﹣40℃ to +85℃

    14Years Experience


    Our company since 2005 RJ45 network connector production in the past 14 years,only focus on RJ45 network connector design and development and production and sales.


    OEM Services


    For high-quality, high reliability and reasonable price RJ45 network connector products,and more than the word’s top 500 OEM manufacturers recognized.


    Production Ability


    The company’s own injection molding, stamping and automated assembly plant, a professional automated production and testing equipment, the company has established an independent laboratory.


    FAQ


    *Q: Can I get samples from you?

    A: We are honored to offer you samples for quality check.


    *Q: What parts are manufactured by you?

    A: All of frame parts are manufactured by us.


    *Q: What's the leading time? (How long do you need to prepare my goods?)

    A: 5 days for sample orders. 15 days for mass production orders (based on different quantities)


    *Q: How long do I need to wait before my goods arrive?

    A: 3-5 days for international express. 5-7 days for air transportation, 15-30 days for sea transportation.

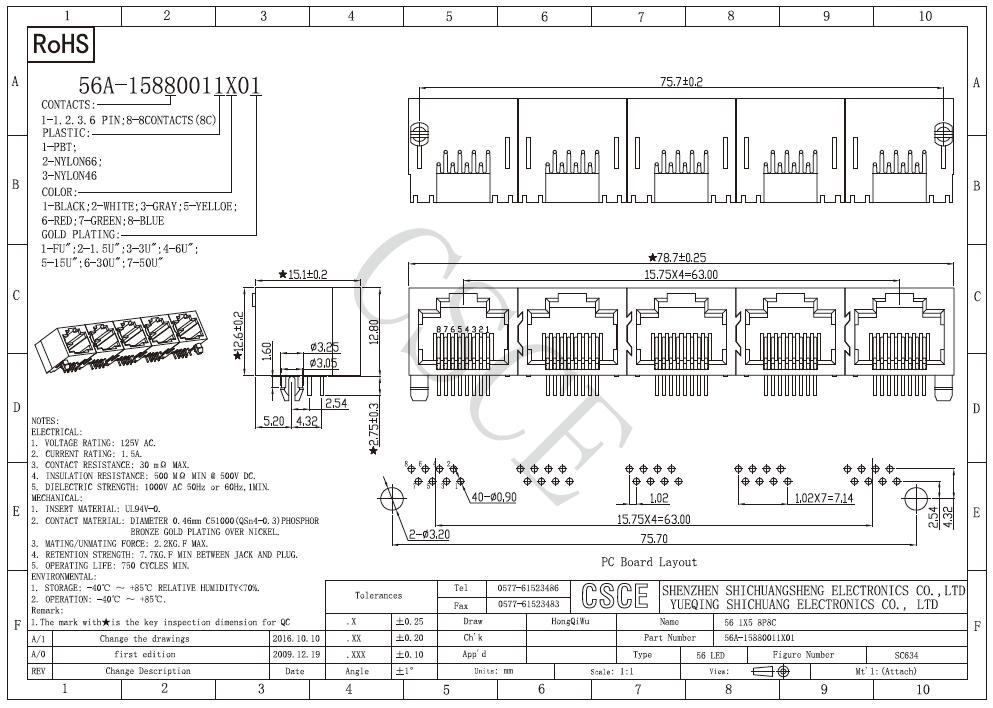

    Product Drawing:



    Quality 8P8C Unshielded 1×5 Multiple-Port RJ45 Connector For Ethernet Switch for sale
