Horizontal Wind Turbine Catalogue
3KW Low Start Wind Speed Solar Wind Hybrid System Eolic Wind
Generator
Overview
GREEF GH-3KW wind generator is the conversion of wind energy into mechanical
energy first and electric energy afterwards. This equipment can
fully make use of wind power to recharge a battery, and also can
saved energy into ac source alternating current. Without the
necessity of fuel, the GH-3KW wind generator is pollution free and far away from noise. The GH-3KW wind generator is generally applicable to the area which has good
condition but is far away from the power grid, or the power grid is
not normal. The GH-3KW generator can supply lighting, the television set, the searchlight,
the communication equipment, the power tool and other household
appliances.
Technical specification
| Model | GH-3KW |
| Performance | |
| Rated Power | 3000W |
| Max Power | 4000W |
| Start Wind Speed | 3m/s(6.72mph) |
| Rated Wind Speed | 10m/s(22.4mph) |
| Working Wind Speed | 4-25m/s (8.96-56 mph) |
| Safety Wind Speed | 50m/s(112mph) |
| Physical Parameters | |
| Blades Length | 1.9M(6.23ft) |
| Blades Rotor Diameter | 4M(13.12ft) |
| Blades Material &Quantity | FRP /3PCS |
| Top Weight | 150kg |
| Swept Area | 8.04m |
| Tower Height | 8m(26.24ft.) Free folding tower |
| Generator Parameters | |
| Generator Type | Permanent Magnet Generator |
| Rated Speed | 350RPM |
| Start Torque | 2.5N.M |
| Option Voltage | 48-240VAC |
| Protection Method | Electromagnetic Brake +PWM |
| Protection Grade | IP54 |
| Working Temperature | -40-50℃ |
| Life time | 20 Years |
Dimension
Power Curve

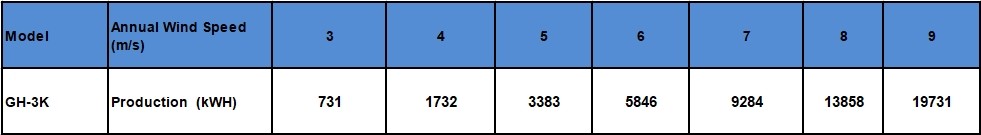

Annual Energy Production
This data will have ±10% difference according to real condition.
Pictures

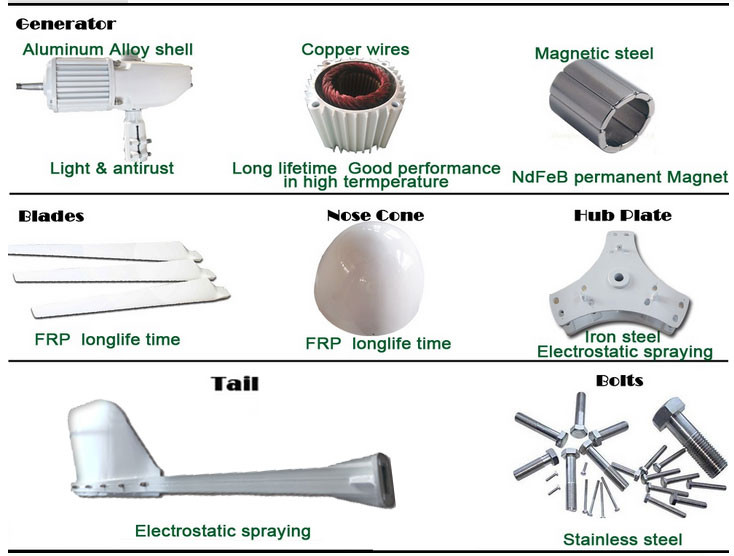

Accesses Details Pictures
If you have any request in package and shipping please tell our
sales we will do according to your request.
System Design Service
We can design different system for customers according their
request For example, on-grid or off-grid system , solar wind hybrid
system or solar wind diesel generator system like below
FAQ
1. Q: Does wind mill 3kw installation Easy ?
A: Very easy, every customer can doing by themselves, we will
supply all the components for installation and very detailed
installation manual.
2. Q: Does our wind is enough for wind mill 3kw ?
A: As our wind mill 3kw can start running at low wind speed 3m/s.
so your average annual wind speed is more than 10m/s then you can
use it .
3.Q:Which model wind generator is suitable for me?
A: 1. What appliance do you want to running by the system? How many
watts are they and their working time .
2. Your annual wind speed .
4.Q:Can I only buy parts not whole system?
A: Yes,for example you can manufacture tower in local , we can
supply you tower drawing .
