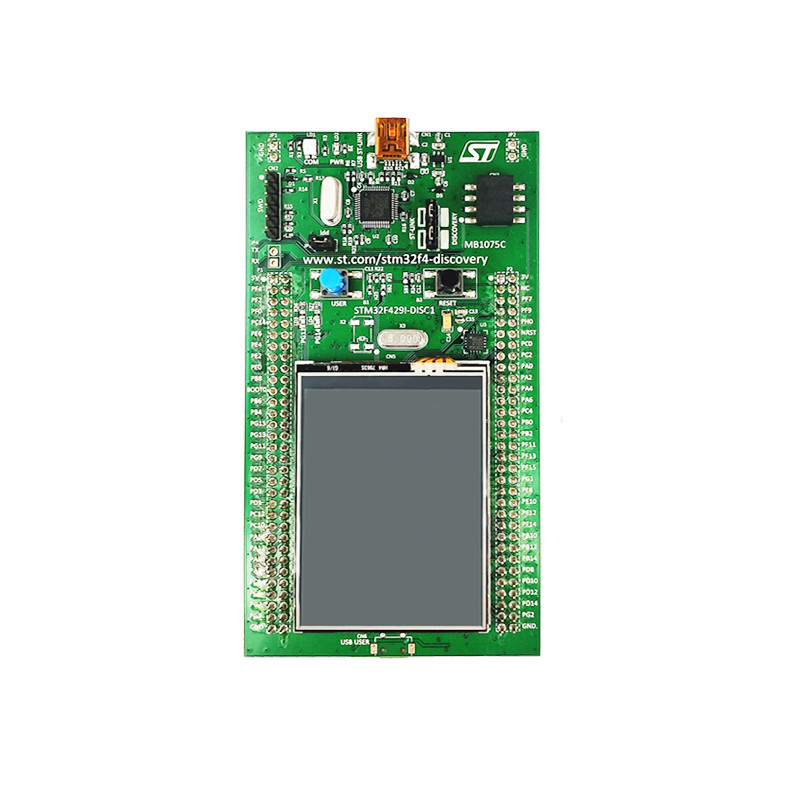

    STM32F429 MCU Discovery Arduino Development Board STM32F429I-DISCO

    Ask Lasest Price
    Brand Name : STMicroelectronics
    Model Number : STM32F429I-DISCO
    Price : US$29.50
    Payment Terms : T/T, Western Union
    Supply Ability : 500pcs/month
    Delivery Time : 5-14days
    • Product Details
    • Company Profile

    STM32F429 MCU Discovery Arduino Development Board STM32F429I-DISCO

    STM32F429 Discovery development module MCU 32-Bit Embedded Evaluation Board STM32F429I-DISCO


    STM32F429 Discovery series ARM Cortex -M4 MCU 32-Bit Embedded Evaluation Board STM32F429I-DISCO


    Description

    The 32F429IDISCOVERY Discovery kit leverages the capabilities of the STM32F429 high-performance microcontrollers,

    to allow users to develop rich applications easily with advanced graphic user interfaces


    Features

    • STM32F429ZIT6 microcontroller featuring

    2 Mbytes of Flash memory, 256 Kbytes of RAM

    in an LQFP144 package

    • 2.4" QVGA TFT LCD

    • USB OTG with Micro-AB connector

    • I3G4250D, ST MEMS motion sensor 3-axis

    digital output gyroscope

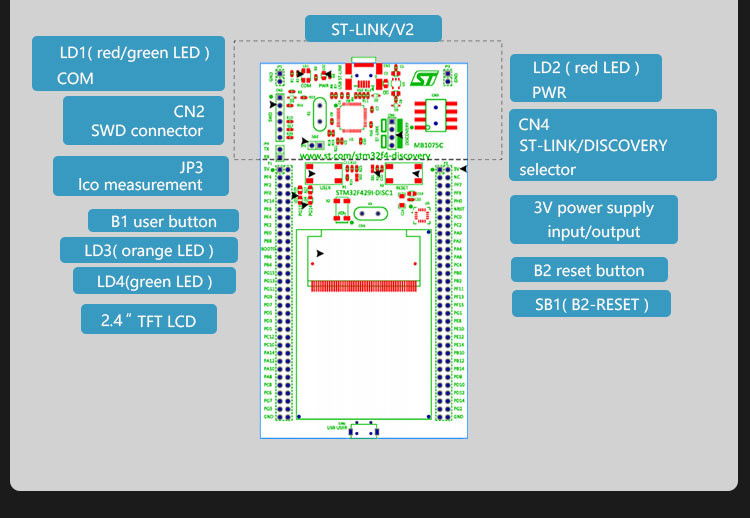

    • Six LEDs:

    – LD1 (red/green) for USB communication

    – LD2 (red) for 3.3 V power-on

    – Two user LEDs: LD3 (green), LD4 (red)

    – Two USB OTG LEDs: LD5 (green) VBUS

    and LD6 (red) OC (over-current)

    • Two push-buttons (user and reset)

    • 64-Mbit SDRAM

    • Extension header for LQFP144 I/Os for a quick

    connection to the prototyping board and an

    easy probing

    • On-board ST-LINK/V2-B

    • USB functions:

    – Debug port

    – Virtual COM port

    – Mass storage

    • Mbed Enabled™ (see http://mbed.org)

    • Board power supply: through the USB bus or

    from an external 3 V or 5 V supply voltage

    • Comprehensive free software including a

    variety of examples, part of STM32CubeF4

    MCU Package or STSW-STM32138, for using legacy standard libraries.


    CategoryDevelopment Boards, Kits, Programmers
     FamilyEvaluation Boards - Embedded - MCU, DSP
    MfrSTMicroelectronics
    SeriesSTM32F4
    PackageBox
    Board TypeEvaluation Platform
    TypeMCU 32-Bit
    Core ProcessorARM® Cortex®-M4
    PlatformDiscovery
    Utilized IC / PartSTM32F429
    Mounting TypeFixed
    ContentsBoard(s), LCD
