    Single Or Double Arm 2-30tons Decoiling Machine Easy to Operate

    Ask Lasest Price
    Brand Name : ZTZG
    Model Number : Uncoiler
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 200 sets/year
    Delivery Time : 120 days
    • Product Details
    • Company Profile

    Single Or Double Arm 2-30tons Decoiling Machine Easy to Operate

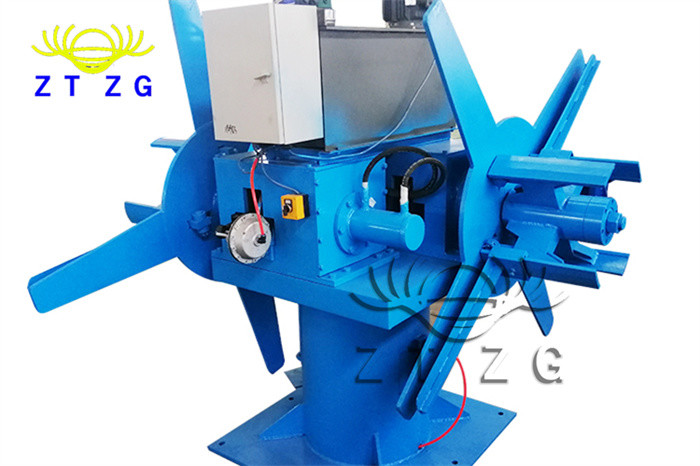

    Uncoiler Machine Introduction:
    Uncoiler is an important part of the preparation equipment before the welded pipe production line. It is mainly used to fix the steel strip and expand the steel strip to provide raw materials for the production line. Including single cone, double cone, double cone uncoiler.

    Machine Characteristics:
    Large load capacity, easy operation, high automation



    Technology
    The uncoiling machine core shaft is connected with four fan-shaped plates through four end faces with oblique dove-tail grooves. Each fan-shaped plate at the end is prevented from moving axially through a radial slide, but it can achieve radial expansion and contraction.




    Position in the Pipe Production Line
    Uncoiling →Shear & Welder → Accumulator → Forming → H.F. Induction Welding → Burr Removing→ Cooling → Sizing → Cutting → Run out table → Checking & Collecting → Accessing Warehouse

    Type of DecoilerFull automatic
    Weighing capacity10t
    Coil diameter range480-620mm
    Colorblue or according to your request
    Wide1250 mm
    Motor power5.5 kW
    Oil pump hydraulic motor4kw
    Weight6t
    Control systemPLC
    ZTZG Company Introduction

    FAQ

    Q: Are you a manufacturer?
    A: Yes, we are a manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also have our own R&D department. Welcome to visit us.
    Q: What kind of payment term do you do?
    A: We do T/T.
    Q: What info do you need before giving me the price and proposal?
    A: Since we design individual machines based on our customer's requirements, we need your desired products' basic dimensions, including all the pipe diameter(or tube length), thickness range, usage, raw material steel grade, coil weight, and degree of automation.
    Q: What should I do if I just start a new business?
    A: Contact us immediately, we provide a free consultant for pre-sales service. Also, we can help you solve the raw material (steel coil) purchase, worker training, international market price, and more.
    Q: How do you do QA?
    A: We have a special team to do strict QA, this is one of our strengths:
    (1)Every gearbox will be tested for 8 hours with oil inside to guarantee there is no leak.

    (2)Every shaft will be inspected for centering jumpiness.
    (3)Every roller will be checked to make sure it's in the range of tolerance critical parts will be inspected for all dimensions.
    Q: Why I should choose you? what are the differences between you and other Chinese suppliers?
    A: We are concentrating on pipe-making machines for more than 20 years. We have constructed many steady trading partners in Asia, Africa, the middle east, Europe, and South America throughout the years. Our innovative designed production line and every single unit of the production line are economical and practical.
