    RV16801NS Rotary Potentiometer Round Shape Vertical Mounting With Rotary Switch

    Ask Lasest Price
    Brand Name : SANNI
    Delivery Time : 25 Working days
    Payment Terms : T/T
    Supply Ability : 30000pcs/Month
    Model Number : RV16801NS
    Price : USD0.25~0.45 per pc
    • Product Details
    • Company Profile

    RV16801NS Rotary Potentiometer Round Shape Vertical Mounting With Rotary Switch

    RV16801NS Metal Shaft Rotary Potentiometer with Rotary Switch

    Application of Rotary Potentiometer


    Rotary Potentiometer is mainly suitable for communication products, walkie-talkie, multimedia audio, automobile power amplifier and other electronic equipment, but also can use household appliances, medical equipment, its main functions are: volume adjustment, light intensity adjustment, menu selection, speed adjustment, temperature adjustment, etc.


    Product Specification


    1.Electrical Characteristics
    Total resistance500Ω-2MΩ
    Total resistance tolerance50Ω~10KΩ:±30%/10KΩ~500KΩ:±20%/500KΩ~2MΩ:±30%
    Residual resistanceR≤10KΩ: 10ΩMax./10KΩ<R>500KΩ:20ΩMax./R≥500KΩ Nominal total resistance of 0.1% or less
    Rated PowerLinear taper:0.05W, Audio Taper 0.025W
    Insulation resistance100MΩ min. 250V DC
    Voltage proof250V AC for 1 minute
    Maximum operation voltage50V AC/10V DC
    2.Mechanical Characteristics
    Rotation stopper strengthMin:6.0Kgf
    Total rotation angle300o±5o
    Totational torque20-200gf.cm
    Key push-pull strengthMin:8Kgf
    Vibration10 to 55 to 10Hz/min.the amplitude is 1.5mm for all the frequencies in the 3 direction of X.Y an Z and for 2 hours respectively.
    Terminal Strength5N for 1 minute
    3.Switch Characteristics
    Switch TypeSPST
    Rated Power1A 16V DC
    Switch Torque500gf.cm Max
    Switch Angle40o Max
    Operating Life without load15000 cycles 100mΩ Max
    Operating life with load:as rating15000 cycles 200mΩ Max
    Initial contact resistance100mΩ Max
    Insulation resistance100MΩ min. 250V DC
    Voltage proof300V AC for 1 minute
    4.Environmental Performance
    Operating temperature range-10oC to +70oC
    Storage temperature range-40oC to +85oC
    5.Welding heat reference
    Reference for hand soldering260oC-280oC±10oC/3+1S

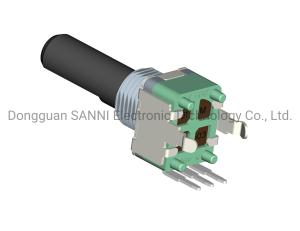

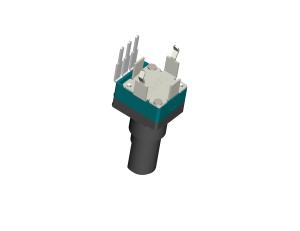

    RV16801NS Insulated Shaft Potentiometer with Rotary SwitchRV16801NS Insulated Shaft Potentiometer with Rotary SwitchRV16801NS Insulated Shaft Potentiometer with Rotary SwitchRV16801NS Insulated Shaft Potentiometer with Rotary SwitchRV16801NS Insulated Shaft Potentiometer with Rotary SwitchRV16801NS Insulated Shaft Potentiometer with Rotary Switch
