Curved Rails Moving Flat Cart Heavy Industry used Material Transfer
Cart
Description of Heavy Industry used Material Transfer Cart
The heavy industry used material transfer cart is powered by
diesel, the diesel generating set supplies to the traction motor
which is controlled by control system to make the car start, stop,
move forward, move backward, etc.
In addition, this kind of heavy industry used material transfer
cart can run on the straight railways or on the ‘S’ and arc-shaped
steel tracks or steel square bars. It is commonly applied in steel
plant, aluminum factory, plastic pipes factory, etc to transfer
rounded material, from producing line to store.
Other power supply mode is available if you need. In fact, all we
products can be design and produced according to your special use.
Specification of Heavy Industry used Material Transfer Cart
| Model | BQY-2t | BQY-20t | BQY-50t | BQY-100t | BQY-150t |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 |
| Height(H) | 450 | 550 | 650 | 900 | 1200 |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 |
| Wheel Diameter (mm) | 270 | 350 | 500 | 600 | 600 |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 |
| Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |

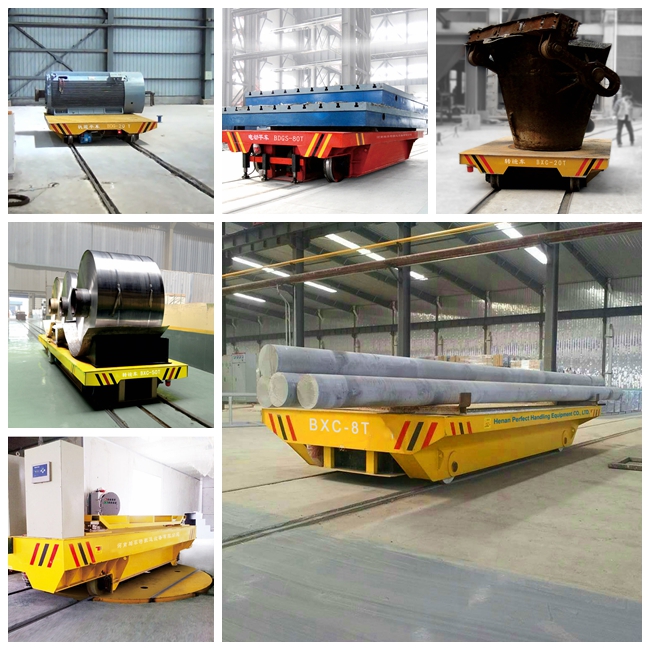

Application of Heavy Industry used Material Transfer Cart
The heavy industry used material transfer cart is designed for
transporting heavy cargoes or equipment from one bay to another in
factory both indoor and outdoor. The application fields include
metallurgy, foundry, new factory construction and shipbuilding and
so on.
Of course, the material transfer cart is an essential handling tool
or handling carriage for many manufacture and logistics. By
contrast, the material transfer cart has plenty of advantages: high
safety performance, competitive cost, save labor force and crane or
forklift and more environmental friendly.
Advantages of Heavy Industry used Material Transfer Cart
It can be used in the ferry condition, flammable, explosive
environment and other hostile environment
It is suitable for the long running distance transportation and
high using frequency
There is no strict requirements on the steel rail construction
With large loading capacity range from 1-300 tons
Box girder beam structure is deformable
