    Transport Simulation High Frequency Type Vibration Tester For LED Luminaire

    Ask Lasest Price
    Brand Name : ASLI
    Model Number : ES-6A
    Certification : CE
    Price : 40000 dollars per month
    Payment Terms : T/T
    Supply Ability : 30 Sets per Month
    Delivery Time : 40 working days
    • Product Details
    • Company Profile

    Transport Simulation High Frequency Type Vibration Tester For LED Luminaire

    ES-6 vibration test equipment.pdf


    Transport Simulation High Frequency Type Vibration Tester for LED Luminaire


    PRODUCT DESCRIPTION


    The high frequency vibration test system is widely used in the fields of national defense, weapon, aviation, spaceflight, communication, electronics, electric appliance, transportation and household appliances.

    According to the requirement, it can provide users with comprehensive test equipment in multiple environments such as climate and mechanics.


    Random Sine Electro-dynamic Vibration Mechanical Shaker Table for LED Luminaire can complete sinusoidal vibration test and broadband random vibration test respectively, and can complete classic (half sinusoid, trapezoid, back peak saw tooth) pulse and shock response spectrum test.The comprehensive test of mechanics and environment conditions can be carried out with a climate chamber.


    TECHNICAL PARAMETERS OF VIBRATION SYSTEM


    ItemDescription

    Force

    (Maximum)

    Sine600Kg.f peak
    Random600Kg.f r.ms
    Shock600Kg.f peak
    Frequency Range5~2500 Hz
    Max. Displacement(Peak to Peak) 51mm
    Max. Velocity1.8m/s
    Max. Acceleration100G (980 m/s2) without loading
    Vibration directionVertical and horizontal
    Armature Diameter200 mm
    Effective Armature Mass6kg
    Table screw17×M10
    Max. payload300kg
    Magnetic Leakage<10gauss
    Axial Vibration Isolation Frequency2.5HZ
    Allowable eccentric moment>300N.m
    Dimension1200mm*790mm*840mm (Head Expander is excluded)
    Weight1600kg (Slip Table is excluded)
    Power supplyAC 3-phase 380V/50Hz,18 KVA
    Grounding resistance≤4Ω
    Air compressor0.4-0.6Mpa (provided by customer)
    Cooling methodAir cooling

    Features
    Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability;
    Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation;
    High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion;
    Quick self-diagnosis with safety interlock, high safety reliability;
    Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance;
    Provide horizontal and vertical expansion platform for different application;
    Simple controller operation.

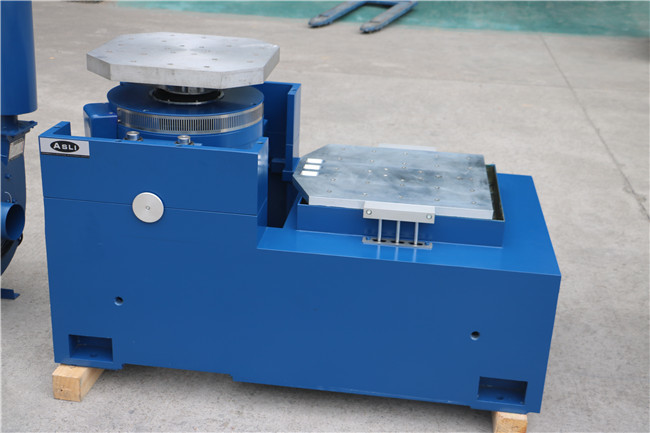

    Transport Simulation High Frequency Type Vibration Tester for LED Luminaire Pictures for reference:


    Any doubt or needs about Transport Simulation High Frequency Type Vibration Tester for LED Luminaire, please don't hesitate to send your inquiry.
