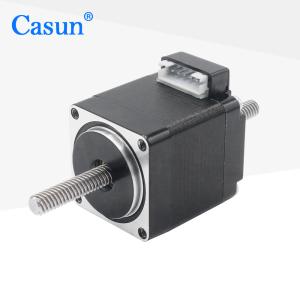

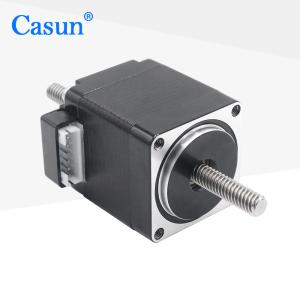

    Casun 0.67A Non Captive 3.75V Nema 11 Stepper Motor With Lead Screw Tr5X4 Bipolar

    Ask Lasest Price
    Brand Name : Casun
    Model Number : 28SHD0202-75TL
    Certification : CE,ROHS,ISO
    Price : $9.94-$12.8
    Payment Terms : D/A, T/T, L/C, D/P
    Supply Ability : 40000+PCS+Month
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    Casun 0.67A Non Captive 3.75V Nema 11 Stepper Motor With Lead Screw Tr5X4 Bipolar

    Casun 0.67A non captive motor 3.75V Nema 11 Stepper Motor with Lead Screw Tr5X4 Bipolar black


    NEMA11 through lead screw stepper motor with lead screw holding torque 50mN.m 0.12kg tr5*4 for 3D

    The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

    Use with a microstepping driver to reduce vibration and achieve higher step resolution.

    Choose a baseline version or request your own customized configuration.


    Features:

    • Bipolar or unipolar versions available

    • Hybrid stepper construction

    • Available in single or double shaft versions

    • CE and RoHS approved

    • Customizations on request

    Dimensions


    Motor Specifications

    Step Angel


    1.8 °

    Fram Size


    28mm

    Number of Phase


    2 Phase

    Rated Current


    0.67Amp

    Holding Torque


    50 mN.m

    Resistance


    5.6 ohm

    Inductance


    3.9mH

    Rotor Inertia


    9g-cm²

    Motor weight


    0.12kg

    Lead Screw


    Tr5X4

    Connection


    Bipolar


    Operating Specifications


    Step Angle: 1.8°

    Maximum Temperature :80°C maximum

    Ambient Temperature: -20 °C to 50°C

    Storage Temperature -20: °C to 100°C

    Humidity Range (%) :85% or less, non-condensing

    Magnet Wire Insulation :Class B 130 deg C

    Insulation Resistance :100M Ohm at 500 VDC

    Dielectric Strength :500 VDC for 1 min

    Shaft Radial Play:0.02Max. (450g-load)

    Shaft Axial Play:0.08Max. (450g-load)

    Max. radial force:28N (20mm from the flange)

    Max. axial force):10N


    Torque Curves


    Submodels


    ModelHolding TorqueStep AngleMotor LengthType of ShaftRated Current
    42SHD49500.13N.m1.8°20mmD Shaft-20mm1.0A
    42SHD40030.26N.m1.8°34mmD Shaft-20mm0.4A
    42SHD02610.45N.m1.8°40mmD Shaft-20mm1.68A
    42SHD44250.59N.m1.8°48mmD Shaft-24mm2.0A
    42SHD48130.8N.m1.8°60mmD Shaft-24mm2.1A

    Body LengthDiameter of ScrewPitchLength of Screw
    20 mm

    34 mm

    40 mm

    48 mm

    60 mm

    5220-1000 mm
    8
    6.351.27
    3.175
    6.35
    6.53
    6.35
    81
    2
    4
    8
    12

    Download


    If our standard motor cannot meet your needs,

    we can customize the motor according to your needs


    Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

    Options:
    Encoder | Brake | Gearbox | Shaft


    Please click the "Get a quote" button below to tell us your requirements.
