Computer Control SS Nuts Processing Machine For Walnut Shelling Sorting

    Buy cheap Computer Control SS Nuts Processing Machine For Walnut Shelling Sorting from wholesalers

    Buy cheap Computer Control SS Nuts Processing Machine For Walnut Shelling Sorting from wholesalers
    • Buy cheap Computer Control SS Nuts Processing Machine For Walnut Shelling Sorting from wholesalers

    Computer Control SS Nuts Processing Machine For Walnut Shelling Sorting

    Ask Lasest Price
    Brand Name : Jinguoyuan sorting robot
    Model Number : Walnut Processling Line
    Certification : CE Certificate
    Price : Negotiable
    Payment Terms : L/C, D/A, T/T
    Supply Ability : 5000 sets per year
    Delivery Time : Delivery time: 15-30 working days after receiving the deposit.
    • Product Details
    • Company Profile

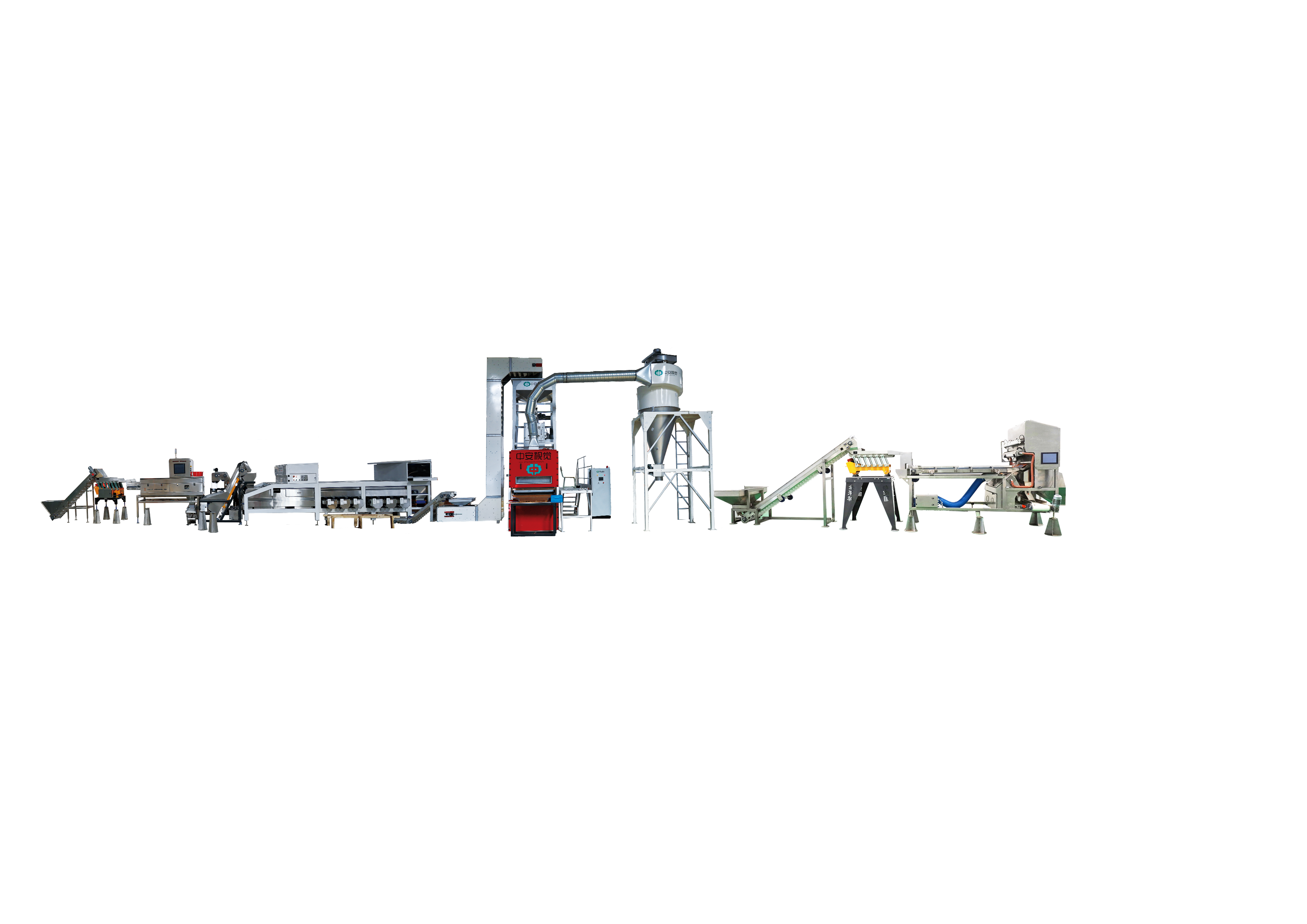

    Computer Control SS Nuts Processing Machine For Walnut Shelling Sorting

    SS Nuts Processing Machine Computer Control For Walnut Shelling Sorting

    Instead Of Manual Work,Walnut Shelling,Sorting, Artificial Intelligence Walnut Processling Line

    Product introduction

    According to the difference of the optical characteristics of the material, it uses the photoelectric detection technology to automatically sort out the damaged particles and the large and small particles in the granular material, and uses the mechanical means to break the walnut shell and separate the kernel.

    Model

    Walnut Processing Line

    Category

    walnut

    Sorting procedure

    Walnut materialRemove the empty and atrophied fruitSorting the walnut according to the sizeRemove the shellShell and kernels seperating

    Step 1: Pour in the walnut ingredients

    Step 2: The walnuts automatically enter the X-ray machine to remove the empty fruit and shrinking fruit in the raw walnuts

    Step 3: Walnuts enter the visual sorting machine to sort the walnuts by size automatically.

    Step 4: The walnuts enter the shelling machine for shelling processing

    Step 5: Walnuts enter the crawler for kernel shell separation

    Features

    1. One of the first companies in the industry to adopt the fifth-generation FPGA core processor.

    2. Based on AI technology combined with deep learning algorithm,Instad of the traditional visual sorting scheme, we use AI technology which greatly improves the sorting effect. At the same time, the machine can do multiple sorting and multiple results one time.

    3. With high-speed and high-resolution industrial digital cameras, the image is clear and stable.

    4. The materials would be rolling when sorting, no space would be ignored,then the sorting accuracy increased highly.

    5. 380V power supply, unique air circuit quick-connect connection, low power consumption of the whole machine

    ModelJSDX5T-HTJSDX6JSDX8T-HTJSDX8JSF6
    Standard Size2880*1360*2343 (2343=2208 main+335 light)2880*1360*2343 (2343=2208 main+335 light)2880*1360*2343 (2343=2208 main+335 light)
    X-ray Output350w(max)
    Transferring Speed10-120m/min
    Capacity50kg-5000kg50kg-5000kg50kg-7000kg50kg-7000kg50kg-5000kg
    Belt width710900710
    Power,<3kw,<3kw,<3.5kw
    Power SupplyMain engine single phase AC220
    Man machine surface17 inch led touch screen
    X-ray leakageEurope Union Standard
    Protection classtransferring part IP54, others IP53
    Woring environmentenvironment temperature 0-40, relative moisture 30-85%, but no condensation
    Best inspection accuracystainless steel ball 0.3mm, stainless steel filament 0.2*2mm
    Machne structure materialMain structure 304 stainless steel
    ModelChannelsCapacity(T/H)Voltage (V/Hz)Power(kw)Air Pressure(Mpa)Air Consumption(m3/min)Size(lengthmm*widthmm*heightmm)Weight(kg)
    HT04-0608A60.6-0.9380/506.3>0.61.28230*2027*16722242
    HT04-0808A80.8-1.2380/507>0.61.68230*2321*16722990
    HT04-1208A121.2-1.8380/507.8>0.62.48230*2960*16724485
    HT04-1608A161.6-2.4380/508.5>0.63.28230*3603*16725980

    ModelCapacity(T/H)Selection Ratio(%)Ratio(good:bad)Power(kw)Weight(kg)Voltage (V/Hz)Air Consumption(m3/min)Size(lengthmm*widthmm*heightmm)
    KS320-SA0.1-0.25>99.5%>8:12.8850220/500.5-15401*1360*1200
    K640-SA0.2-0.5>99.5%>8:13.9970220/501-25401*1680*1200
    K1280-SA0.5-1>99.5%>8:15.81200220/502-35401*2320*1200
    K1920-SA0.75-1.5>99.5%>8:16.92000220/503-55401*2960*1200
    K640-DA0.2-0.5>99.5%>30:17.12150220/502-35401*2320*2030
    K1280-SA0.5-1>99.5%>30:18.12450220/504-65401*2320*2030
    K1920-DA0.75-1.5>99.5%>30:19.32750220/506-85401*2960*2030

    NameQtyUnitPower(kw)Air Pressure(Mpa)Voltage (V/Hz)
    Shelling Machine1set70>0.5380/50
    Processing methodPeeling rateFirstSecondThridBrokenCapacity(T/H)
    mechanical processing98%56.49%24.47%14.15%4.35%0.6-1

    The effect of this machine would be differs according to the category and water inside, the data is only for reference.

    After-sale service:

    Free software upgrade service for our customers all life.

    Free maintenance.

    Packaging and Shipping:

    Delivery time: 15-30 working days after receiving the deposit.

    Quality: Quality as factory standard.

    Packing: Factory standard export plywood box packing, suitable for container shipment.


    FAQ


    Q: What are the advantages of your walnut shelling and processing line?
    A: After years of research and development, the walnut shelling and processing production line is an important technological product of our company. It can peel walnuts with one click and automatically take out the walnut kernels inside, without manual peeling, which reduces the cost of manual production.


    Q: What is the output of your company's walnut production line?
    A: The output of our walnut processing production line is related to the quality of walnut raw materials and moisture. The output of different types of products varies. You can consult our sales staff by telephone for the specific output.
