Four-way Shuttle Cart ASRS
——
Four-way shuttle is an intelligent handling device that can achieve
both vertical and horizontal walking. It has high flexibility, can
change the working lanes arbitrarily, and adjust the storage
capacity by increasing or decreasing the number of shuttles. If
necessary, the peak value of the system can be adjusted by setting
up a dispatching method of the operating fleet to solve the
bottleneck of the in and out operation.
Four-way shuttle can be replaced with each other. When a certain
shuttle or elevator fails, other shuttles or elevators can be
dispatched through the dispatching system to continue to complete
the operation, and the storage capacity is not affected. The
four-way shuttle is suitable for both low-flow and high-density
storage and high-flow and high-density storage. It can maximize
efficiency, cost, and resources.
Automated Storage and Retrieval System · Warehouse Storage Rack ·
Made In China
Four Way Pallet Shuttle Specification
—
| ITEM | Shuttle Body (L*W*H ) | Pallet Dimension |
| Standard Shuttle Dimension | 1100L*980W*150Hmm | 1200W*1000D |
| 1200L*980W*150Hmm | 1200W*1100D |
| 1300L*980W*150Hmm | 1200W*1200D |
| Self Weight | 450kg | |
| Loading Capacity | 1000kg | |
| Lifting Distance | 40mm, ≤5s | |
| Working Temperature | 0-40ºC | |
| Communication Mode | Wireless AP | |
| Power Supply | lithium battery, 48V36 /45 /60AH | ≥8H continuous work |
| Driving Speed (empty) | 1.5m/s | |
| Driving Speed (load) | 1.0m/s | |
| Acceleration | 0.3m/S2 | |
| Battery Service Life | 2000 charging times | 1.5-2H charging time |
| Addressing | Laser, ±2mm | |
Automated Storage and Retrieval System · Warehouse Storage Rack ·
Made In China
Characteristics
—
- Shelf height can reach 10 meters or higher, reducing land
occupation area
- Reduce warehouse land by more than 50% and reduce labor costs by
more than 30%
- Seamless data integration with ERP system and real-time intelligent
production scheduling
- Light weight, energy saving and high efficiency
- Flexible storage layout combination method, can realize
non-contiguous floors and multi-area interworking layout
Automated Storage and Retrieval System · Warehouse Storage Rack ·
Made In China

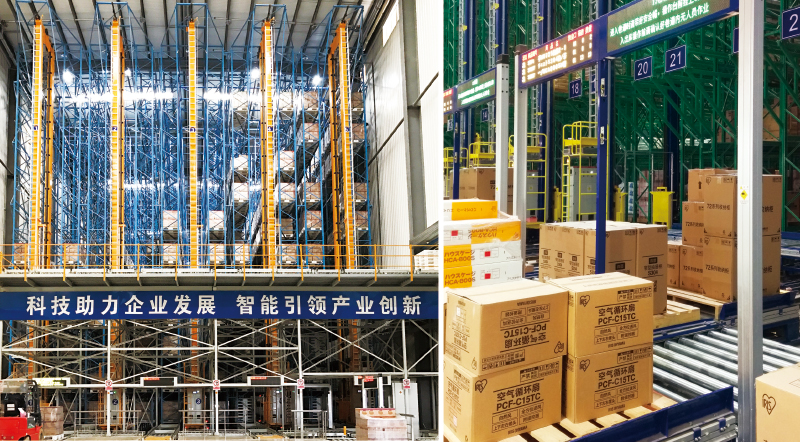

CASE
—
Automated Storage and Retrieval System · Warehouse Storage Rack ·
Made In China
Automated Storage and Retrieval System · Warehouse Storage Rack ·
Made In China
Automated Storage and Retrieval System · Warehouse Storage Rack ·
Made In China
Our Solutions
—
Automated Warehouse:Solutions vary by industry.
We know your business has specific needs. We also know material
handling solutions do not come in a one-size-fits-all package.
That's why we hold decades of experience in custom vertical
industry solutions. Our experts partner with you to engineer a
material handling system focused on your business objections.
AS/RS Stacker crane
Four Way Shuttle System
Clad Rack Warehouse
Mothe&Child Shuttle System
Automated Storage and Retrieval System · Warehouse Storage Rack ·
Made In China
Racking Production
—
Automation Equipment Assembly
—
Automated Storage and Retrieval System · Warehouse Storage Rack ·
Made In China
FAQ
—
Q. What we do ?
Pallet Type Automated Storage and Retrieval System (Unitload AS/RS)
Box/ Container/ Crate/ Case Type Automated Storage and Retrieval
System (Miniload AS/RS)
Shuttle Storage & Sequencing system
Rack-supported building type AS/RS
Semi-automated Radio Shuttle System
Electrical Mobile Racking System
Floor conveying & sortation system
Automatic Truck/Trailer Loading System
In HUAYIDE, you'll get turnkey solutions for engineering &
consulting , design & manufacturing, implementation & training,
commissioning & after-sale service. With the best throughput
capacity to really in-house all your warehousing requirements, grow
your business in a cost effective way.
Q. Why choose us?
Complete mastery of the process:Self-developed, engineered,
produced and installed;
Very competitive pricing:Manufacturing in Asia save you up to 50%!
Integrated by us save you up to 25% more!
Successful cases backup:Projects in various industries ready for
you to visit;We upgrade on existing successful experience;
High-efficient:Instant communication are available
24/7/365;Solutions for RFQ shall be obtainable within 36 hours;
Professional team work:We care and carry out your every single
requirement;We trained our engineers to speak English;
Reliable & Flexible:We study your market local regulations to
comply with;Credible backup documents for your evaluation;
Q. How we work?
Step 1 Define:HUAYIDE Solutions' engineers work with project
stakeholders to determine project objectives
Step 2 Measure:Information is collected to help our engineers
better understand your business.
Step 3 Analyze:Analyze data from your operating systems and create
models that predict future states
Step 4 Design:Analyze data from your operating systems and create
models that predict future states.
Step 5 Validate:System costs are estimated and a complete analysis
is done to determine feasibility of each alternative.
Step 6 Client Presentation:Client is given final presentation of
costs and best solution.
