U-Type 1t Electric Low Profile Lift Tables for Pallet Handling

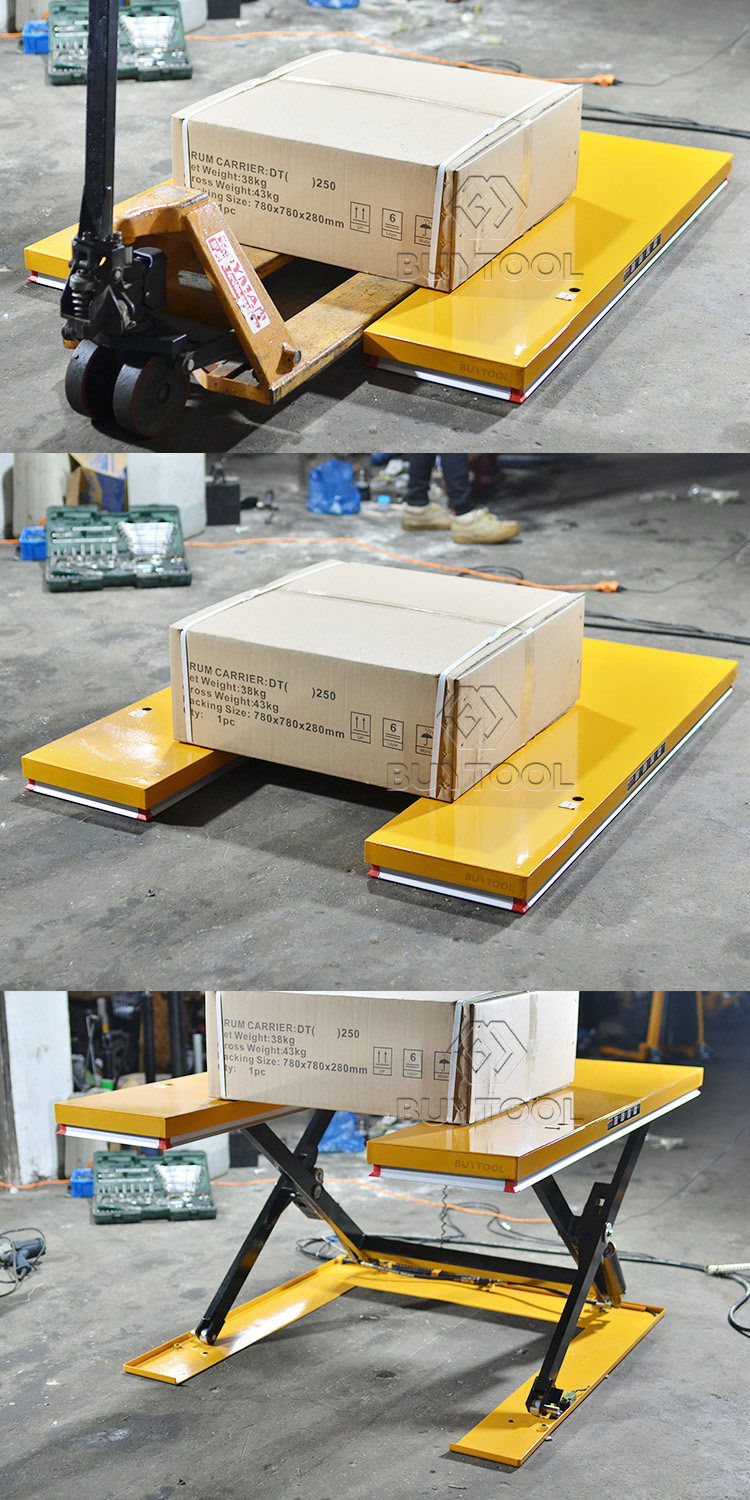

These tables achieve a low closed height,Pallet truck can be can be
directly into the middle of the table, so as to upper and lower the
tray.
They are manufactured to all European safety standards including
EN1570.
Remote power pack with pedestal and controls,pretected to IP54.
Upper platform fitted with safety perimeter to prevent descent on
contact with obstructions.
24V control box with UP and DOWN buttons and emergency stop.
External power pack equipped with a relief valve against
overloading and a compensated flow valve for controlling lowering
speed.
Hose burst safety valve to stop the lift table lowering in case of
hose breakage.
Removable lifting eyes to facilitate handling and installation of
the lift table.
Oiless bushing on pivot points.
- Model Number: HU
- Lift Mechanism: Scissor Lift
- Lift Drive / Actuation: Electric Motor
- Power: 2.2kw
- Rated Loading Capacity: 1000kg 1500kg
- Min. Lifting Height: 205mm
- Max. Lifting Height: 860mm or customerized
- Table Size: 1080*560mm
- Overall Dimensions: 1450*1140mm
- Weight: 240-400kg
- Certification: CE/TUV/SGS/ISO
- Warranty: 1 Year, 1year whole set
- After-sales Service Provided: Engineers available to service machinery overseas
- Product Name: U type lift table
- Load capacity: 1000kg, 1500kg
- u type lift table Color: yellow
- min.lifting height: 85/105mm
- u shape lift table Net Weight: 240-400kg
- Max Lifting Height: 860mm
- u shape lift table Rise time: 20~65s
- Packing Term: u shape scissor table 1pcs/pallet
- u shape scissor table Colored skill:Powder coating
| Model | | HU600 | HU1000 | HU1500 |
| Capacity | (Kg) | 600 | 1000 | 1500 |
| Platform Sizes (LxW) | (mm) | 1450×985 | 1450×1140 | 1600×1180 |
| Size A | (mm) | 200 | 280 | 300 |
| Size B | (mm) | 1080 | 1080 | 1194 |
| Size C | (mm) | 585 | 580 | 580 |
| Min./Max.Height | (mm) | 85/860 | 85/860 | 105/860 |
| Lift Time | (s) | 25-35 | 25-35 | 30-40 |
| Power Unit | | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Net Weight | (Kg) | 207 | 280 | 380 |
