    12.5mm 22mNm Nema 14 Stepper 2 Phase Hybrid Stepper Motor

    Ask Lasest Price
    Brand Name : Casun
    Model Number : 36SHD4001-11B
    Certification : CE,ROSH,ISO
    Price : $4.14-$6.98
    Payment Terms : D/A, T/T, L/C, D/P
    Supply Ability : 40000+PCS+Month
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    12.5mm 22mNm Nema 14 Stepper 2 Phase Hybrid Stepper Motor

    【36SHD4001】2 Phase 1.8 deg Nema 14 Stepping Motor Ultrathin 12.5mm body for Remote Control PTZ

    The 35mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

    Use with a microstepping driver to reduce vibration and achieve higher step resolution.

    Choose a baseline version or request your own customized configuration.


    Features:

    • Bipolar or unipolar versions available

    • Hybrid stepper construction

    • Available in single or double shaft versions

    • CE and RoHS approved

    • Customizations on request

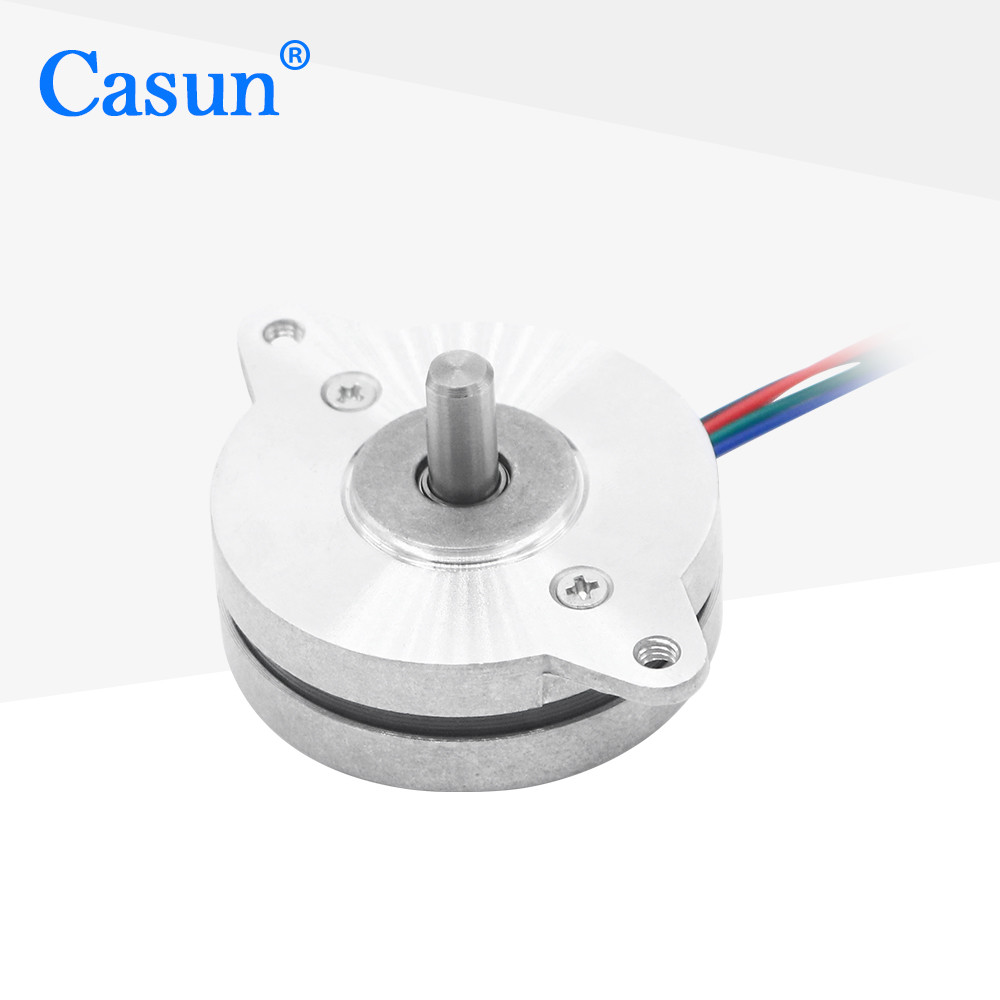

    Appearance


    Dimensions


    Motor Specifications

    Step Angel

    1.8 °

    Fram Size

    36 mm

    Number of Phase

    2 Phase

    Rated Current

    0.3 A

    Holding Torque

    22 mN.m

    Resistance

    20 ohm

    Inductance

    6.8 mH

    Rotor Inertia

    4 g-cm²

    Motor weight

    0.06 kg

    Number of leads

    4

    Connection

    Bipolar


    Torque Curves

    Download


    If our standard motor cannot meet your needs,

    we can customize the motor according to your needs


    Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

    Options:
    Encoder | Brake | Gearbox | Connector

    Please click the "Get a quote" button below to tell us your requirements.
