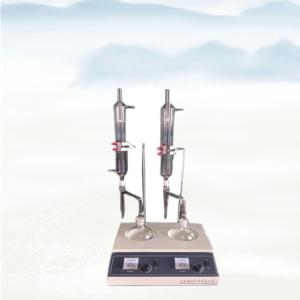

ASTM D95 Dean-Stark Lab Water Distillation Crude Oil Water Content
Tester(Double Units)
SD260B oil moisture meter is designed and manufactured according to
the requirements of GB/ T260 "Moisture Determination Method of
Petroleum Products" of the People's Republic of China. It conforms
to the requirements of G/JBJD6 "Technical Conditions of Moisture
Tester of Petroleum Products".
This instrument is suitable for the determination of moisture
content in petroleum products according to GB/T260 standard test
method, also suitable for the determination of moisture content in
grease according to GB/T512 standard test method for the
determination of moisture content in grease.
In line with the ASTM D95
ASTM D95 Dean-Stark Lab Water Distillation Crude Oil Water Content
Tester
Dean-Stark Distillation Tester (Water Content Tester)
Lab Distillation Dean Stark Apparatus Crude Oil Water Content
Tester
Distillation Method Petroleum Products Water Content Tester (Double
Units)
Main technical parameters and indicators
| Standard | ASTM D95 GB/T260 GB/T512 |
| working power supply | AC 220V±10%, 50Hz. |
| Heating power of electric furnace | 1000W |
| Ambient temperature | ≤35℃. |
| relative humidity | ≤85% |
| Power consumption of the whole machine | no more than 1100W.
|
| Instrument size: 47*36*29 cm Weight 10kg |
| Packing size: 50*38*32 cm Weight 13kg |
I. Main technical features
1. The design of the instrument fully conforms to the requirements
of GB/ T260, G/JBJD6 standard.
2, the test vessel holder design is reasonable, the condensation
pipe installation, disassembly is convenient.
3. Two groups of tests can be carried out at the same time, and
external circulation of cooling water is required.
4.Reagents:
Solvent (initial distillation point not less than 50 degrees DC
gasoline) oleic acid or stearic acid anhydrous calcium chloride:
chemically pure
Packing list:
| No. | Name | unit | Number | Note |
| 1 | Electric heating temperature control device | set | 1 | |
| 2 | post | piece | 2 | |
| 3 | Test the condenser gripper | piece | 2 | |
| 4 | Condenser pipe | piece | 2 | |
| 5 | Receiving tube | piece | 2 | |
| 6 | Round bottom flask | piece | 2 | |
| 7 | power cord | piece | 1 | |
| 8 | instructions | copy | 1 | |
| 9 | Certificate of conformity warranty card | copy | 1 | |
