Intelligent online/offline THT AOI AIS203B-HW AI data analysis AOI
MACHINE For Support Mixed PCB
Principle: :
It captures board image in real time by high precision color
industrial camera. Adopt Convolutional Neural Network (CNN)
algorithm to process images. Judge defects of components
AIS203 /AIS203P
• Spanning erection without change of production line

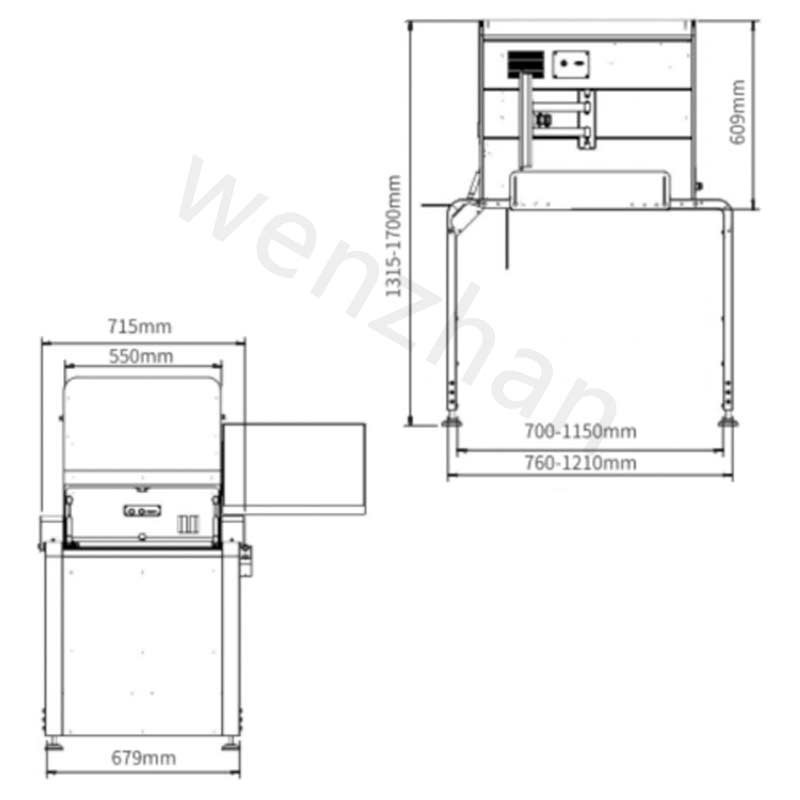

• Easy to move, adjustable height and width
• Real-time inspection without stopping the board
• PCBA dimensions: Maximum 400*300mm (12MP) / Maximum 520*380mm
(31MP)
AIS20X Series-DIP | Deep Learning Algorithm
By applying deep learning algorithm, big data optimization and
intelligent minimalist programming in industrial
inspection, MAKER-RAY enables intelligent judgment by one-click
automatic identification of components and solder, thus
addressing the two major pain points of traditional algorithms,
namely, long programming time and high false alarm rate.
Online THT AOI AIS203B-HW
Strong inspection of fuzzy features, easy and quick programming
Intelligent parameter adjustment
Easy installation across production line
Intelligent parameter adjus-
tment
Auto-identify components to match inspection
algorithm. Intelligent adjustment of parameters
to speed up programming
AI training tool
Model self-training for special components,
reduce false positive rate by continuous
learning to improve inspection accuracy
Support both online/offline
programming
Online/remote offline programming, without
stopping the production line
Support Mixed PCB
inspection
Support mixed PCB and multi-in-1 board
inspection by AI positioning algorithm
Centralized management
by remote control
Centralized management of multiple
production lines, remote control to save
maintenance costs
AI data analysis
Provide objective basis for process
improvement, recording to bad data in
multiple aspects
