320x480 SPI LCD Display ST7796 3.5 Inch Spi Tft Lcd TFT LCD Display Screen

    Buy cheap 320x480 SPI LCD Display ST7796 3.5 Inch Spi Tft Lcd  TFT LCD Display Screen from wholesalers

    Buy cheap 320x480 SPI LCD Display ST7796 3.5 Inch Spi Tft Lcd  TFT LCD Display Screen from wholesalers
    • Buy cheap 320x480 SPI LCD Display ST7796 3.5 Inch Spi Tft Lcd  TFT LCD Display Screen from wholesalers

    320x480 SPI LCD Display ST7796 3.5 Inch Spi Tft Lcd TFT LCD Display Screen

    Ask Lasest Price
    Model Number : JC3248A035N-1
    Price : ¥50/pcs
    Payment Terms : L/C, T/T
    Supply Ability : 5000pcs/day
    Delivery Time : 28day
    • Product Details
    • Company Profile

    320x480 SPI LCD Display ST7796 3.5 Inch Spi Tft Lcd TFT LCD Display Screen

    3.5 inch Without touch 320*480 ST7796 TFT LCD display screen 3.5" Display Screen SPI LCD

    Product Description

    • 3.5-inch 320x480 tft LCD display.
    • The sample is ready for shipment.
    • The touch panel is optional.
    • Good quality and low price, guaranteed quality.
    • The product line is complete with all kinds of sizes.
    • Long-term stable supply

    Product Parameters

    NameParameter
    SKUJC3248A035N-1
    Display ColorRGB 65K color
    Touch modeWithout touch
    Screen Size3.5(inch)
    TypeTFT
    Driver ICST7796
    Resolution320*480 (Pixel)
    Module Interface4-wire SPI
    Active Area73.44(L)X48.96(W)MM

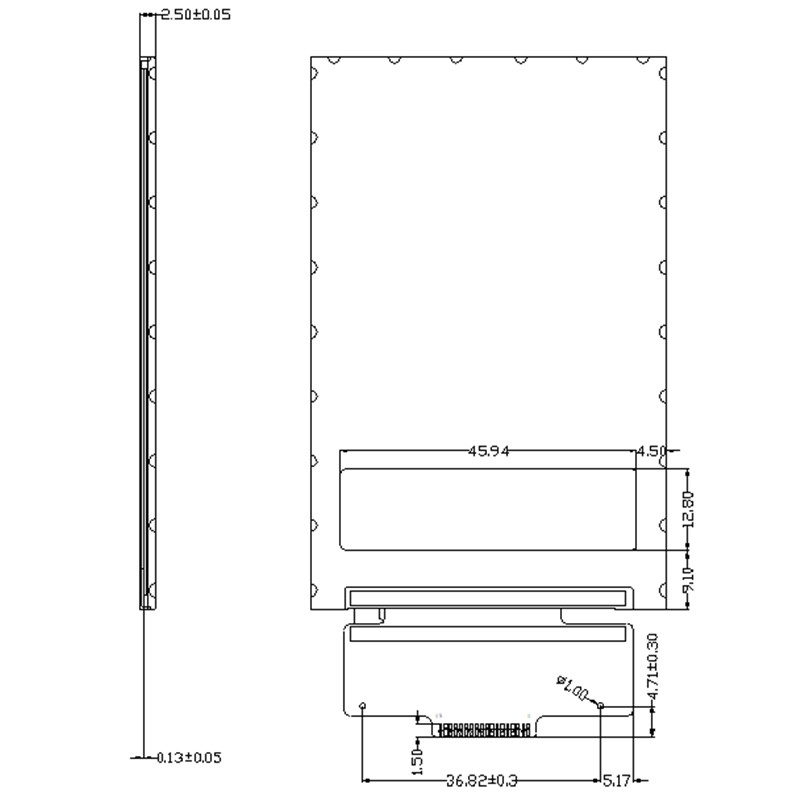

    External dimension85.5(L)X54.94(W)X2.50(H)MM
    Operating Temperature-20℃~60℃
    Storage Temperature-30℃~70℃
    Operating Voltage3.3V
    Visual angle12:00 o'clock
    Product Weight(Package containing)30(g)

    Interface Definition


    NumberPin LabelPin Description
    1GNDPower ground
    2RESETLCD reset signal, low level reset
    3SCLClock signal
    4RSInstruction Data Selection L: Instruction H: Data
    5CSLCD chip select signal, active low
    6SDAControl data transmission
    7SDOControl data output
    8GNDPower ground
    9VCC2.8~3.3V power input
    10LEDABacklight LED positive extreme
    11K1Backlight LED negative extreme
    12K2Backlight LED negative extreme
    13K3Backlight LED negative extreme
    14K4Backlight LED negative extreme
    15XLTouch x axis
    16YUTouch y axis
    17XRTouch x axis
    18YUTouch y axis
