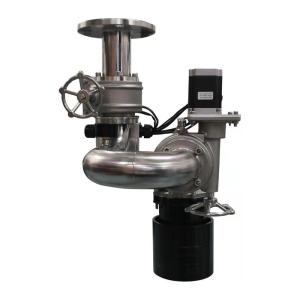

utomatic fire extinguishing system discharge large volumes of
suppression agent from a single fixed location, and at high
pressure to give it an excellent range of coverage.
Specifications:
| ZDMS0.6/5S-LZII | ZDMS0.6/10S-LZII | ZDMS0.8/20S-LZII | ZDMS0.9/30S-LZII | ZDMS0.8/40S-LZII | ZDMS0.8/50S-LZII | ZDMS1.0/60S-LZII |
Working Voltage | DC36V | DC36V | DC24V | DC24V | DC24V | DC24V | DC24V |
| Rated Pressure | 0.6MPa | 0.6MPa | 0.8MPa | 0.9MPa | 0.8MPa | 0.8MPa | 1.0MPa |
| Protection Radius | ≤30m | ≤35m | ≤50m | ≤55m | ≤60m | ≤65m | ≤70m |
| Rate of flow | 5L/s | 10L/s | 20L/s | 30L/s | 40L/s | 50L/s | 60L/s |
| Installation Height | 6~15m | 6~15m | 8~35m | 8~35m | 8~35m | 8~35m | 8~35m |
| Jet radius | ≤34m | ≤39m | ≤56m | ≤62m | ≤67m | ≤73m | ≤78m |
| Positioning time | ≤30s | ≤30s | ≤60s | ≤60s | ≤60s | ≤60s | ≤60s |
| Monitoring radius | 40m | 40m | 60m | 60m | 80m | 80m | 80m |
| Flange Connection | DN50 | DN50 | DN80 | DN80 | DN100 | DN100 | DN100 |
Notices:
1.The side of cannon with label”this side to wall” must be faced to
wall when installed.
2.Video line connected from DVR to cannon directly.
3.Signal lines must connect to signal lines of cannon where it is
2m from cannon.
4.Operation panel installed near the exit and 1.5m from ground,and
from where operator can see all cannnons controlled by this
operation panel.
5.Pls take care when handling cannon as there is UV detector at the
bottom of cannon.The UV detetor is fragile.
6.Make sure there is no barrier around the cannon to stop the
cannon 360 degree rotate.
7.The ground lead of DVR,earth wire and Lightning protection wire
of control console need be connected to your ground lead.
Applications:
Our automatic fire extinguishing system are wildly used in
Industrial,commercial and residential fields.Such as airport,
high-speed railway station, bus station, hotel atrium, museum,
library, TV studio, gymnasium, science and technology museum,
exhibition hall, convention center, theater, cinema, civic activity
center, industrial plant, chemical plant, gas station, oil
port,helicopter hangar, power plants, logistics centers, hospitals,
large shopping malls, commercial complexes, colleges and
universities, coal mines, warehouses and other places with large
space.
FAQ:
Q1: Are you a manufacturer?
A1: Yes. We are a professional manufacture of automatic fire water
monitor which has the most advanced technology.
Q2: What certificates do you have?
A2: We only have CCC and ISO at present. FM or UL will be got within next year.
Q3: What are the advantages of your Intelligent Fire Monitor|Fire Water
Cannon?
A3: Our Intelligent Fire Monitor adopt the Infrared thermal imaging
detecting and tracking technology. Our Fire Water Cannon integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire Extinguishing.
