Name: Straight Copper Nickel Pipe 71500 9010 6 STD Seamless Pipe Tube
Brand: TOBO
Price: 1 USD

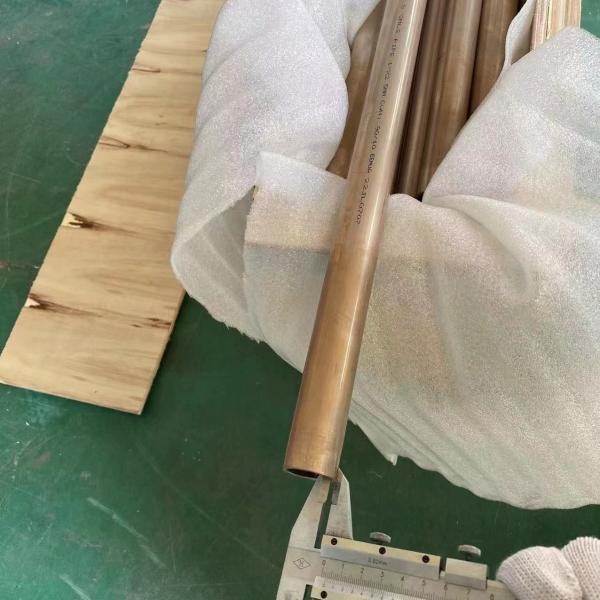

Straight Copper Nickel Pipe 71500 90/10 6" STD Seamless Pipe Tube

Ask Lasest Price

Brand Name :

TOBO

Model Number :

90/10

Certification :

API/ SGS

Price :

Negotiable according to quantity

Payment Terms :

L/C, T/T, Western Union

Supply Ability :

300000 tons per month

Delivery Time :

7-45 workdays

Straight Copper Nickel Pipe 71500 90/10 6" STD Seamless Pipe Tube

Products Specification

Copper Nickel Pipe Sch80 8" Seamless/ Welded Pipe C71500 70/30 Pipe

Seamless Pipes
Seamless pipes are in accordance with EEMUA 234/chapter 1. They are manufactured from hot extruded shells followed by cold work and annealing.

Welded Pipes
Longitudinally welded pipes are in accordance with EEMUA 234/chapter 2. They are manufactured from hot rolled or cold rolled and annealed sheet or plates in accordance with BS 2870, BS2875, ASTM B171 or ASTM B402. Mechanical testing is carried out in accordance with the standards above. The pipes are supplied in “as welded” condition.

Copper Nickel has a Yield Strength of 103 MPa (15000 psi). The Rockwell B Hardness of Copper nickel is 69. The Machinability of Copper nickel is 20. Copper Nickel 90/10 offers superb resistance to brackish water, biofouling in seawater, erosion and stress corrosion. It has superb welding and fabrication properties. As far as hydrogen embrittlement goes, 90/10 copper nickel has a very high resistance to this. Cu-Ni 90/10 is very popular for use in industrial, architectural and marine applications, as it has high ductility and toughness. The Elastic Modulus of Copper nickel is 152 GPa (22000 ksi). The Thermal Conductivity of Copper nickel is 32.9 W/mK (0.0900 BTU in/hr.ft². °F). 90/10 copper nickel has superb antimicrobial properties, which means that it has the capability to kill a huge range of microbes, up to 99.9%, including the likes of Clostridium difficile, E. coli, MRSA and influenza A (H1N1), within a span of just a couple of hours.

1. Certification: ISO, ROHS, SGS

2. Available Packing: Plastic bags+Chipboard Cartons+Plywood pallet with Belt &Film.

Dimensions (mm) Seamless Pipe
Size Nominal (in)	Size Specified (mm)	Specified Wall Thickness (mm) t		Theoretical Weight/Metre (kg)
Size Nominal (in)	Size Specified (mm)	16bar	20 bar	16bar	20bar
1/2	16	2.0	2.0	0.78	0.78
3/4	25	2.0	2.0	1.29	1.29
1	30	2.5	2.5	1.93	1.93
1 1/4	38	2.5	2.5	2.49	2.49
1 1/2	44.5	2.5	2.5	2.94	2.94
2	57	2.5	2.5	3.82	3.82
2 1/2	76.1	2.5	2.5	5.15	5.15
3	88.9	2.5	2.5	6.05	6.05
4	108	3.0	3.0	8.82	8.82
6	159	3.0	3.5	13.10	15.24
8	219.1	4.0	4.5	24.10	27.04
10	267	4.5	5.5	33.10	40.27
12	323.9	5.5	7.0	49.05	62.10
14	368	6.5	8.0	65.80	80.64
16	419	7.0	9.0	80.75	103.32

Trade Name	UNS	Copper Nickel Industry Specifications	Chemical Composition	Min.Tensile (KSI)	Min.Yield (KSI)	Elongation %
CuNi 90/10	UNS C70600 UNS C70620	ASME SB111, SB171, SB359, SB395, SB466, SB467, SB543 ASTM B111, B122, B151, B171, B359, B395, B432, B466, B467, B543, B608 DIN 2.0872 MIL C-15726, T-15005, T-16420, T-22214 SAE J461, J463	Cu 88.6 min Pb .05 max* Fe 1.8 max Zn 1 max* Ni 9-11 max Mn 1.0 max	38	15	30
CuNi 90/10	UNS C7060X	EEMUA 144 90/10, 145 90/10, 14 90/1	Cu rem. Pb .01 max Fe 1.5-2.0 Zn 0.2 max P 0.2 max S 0.2 max Ni 10-11 Mn 0.5-1.0	40	15	30
CuNi 70/30	UNS C71500 UNS C71520	ASME SB111, SB171, SB359, SB395, SB466, SB467, SB543 ASTM B111, B122, B151, B171, B359, B395, B432, B467, B543, B552, B608, F467, F468 DIN 2.0882 MIL C-15726, T-15005, T-16420, T-22214 SAE J461, J463	Cu rem (65.0 min) Pb .05 max* Fe 0.4-1.0 Zn 1 max* Ni 29-33 Mn 1 max	52	18	45
CuNi 70/30	UNS C71640	ASTM B111, B543, B552	Cu rem Pb .05 max* Fe 1.7-2.3 Zn 1 max* Ni 29-32 Mn 1.5-2.5	63	25	–

Packing & Shipping

Product Show

FAQ

1.How do you let me trust you?
We are a Golden supplier in Alibaba who do business for more than 5 years. You can make an order by Alibaba to us directly.

2.How about your price?
High-quality products with a reasonable price suitable for your market.

3.How do you control your quality?
We request a QC inspection for each batch of goods. And we can provide you inspection report and mill certificate if you want..

4.Could you provide free samples?
For new customers, We can provide free samples for standard fasteners. But the clients will pay the express charges. For regular customers, We will send you free samples and pay express charges by ourselves.

5.How about your delivery time?
Generally speaking, All the goods have stock with little quantity, we can delivery them with one week. If the quantity is 1-2container, we can give you with 30-45days.

7.What is your payment term?
We can accept T/T,LC for general order. For new customer, we request 20%-50% T/T in advance, and balance payment should against B/L copy. For regular customer, we can provide delay payment after B/L date about 30-90 days.
