    430mm Overarm Travel Metal Turret Milling Machine Vertical 1270*254 Table

    Ask Lasest Price
    Model Number : WC-WL4BS
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 30set/month
    Delivery Time : negotation
    • Product Details
    • Company Profile

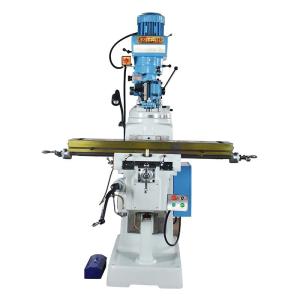

    430mm Overarm Travel Metal Turret Milling Machine Vertical 1270*254 Table

    430mm Overarm Travel Metal Turret Milling Machine Turret Vertical Milling Machine 1270*254 Table Length X Table Width


    Y-axis slide rail is parallel slide rail, and the bed platform is stable and can withstand heavy cutting.

    The X-axis and Y-axis slideways are subject to high frequency heat treatment and grinding, and the slideway surface is attached with a wear-resistant sliding plate (TURCITE-B) to reduce the friction coefficient of the contact surface. It is more wear-resistant and can ensure excellent accuracy even after long time use.


    Item No.WC-WL4BS
    Spindle speedR.P.M75~4630(16)
    Spindle taper R8 or NT30 or NT40
    Head tilt(right-left) 45 degree
    Table length x table widthmm1270*254
    Table load(Max.)kg300
    X-axis manual travelmm760
    Y-axis manual travelmm350
    Z-axis manual travelmm350
    Spindle nose to Tablemm75-460
    Overam travemm430
    Spindle Z-axis manual travelmm127
    Quill feed feedsmm/rev0.04/0.08/0.15
    Machine size(LxWxH)mm1750*1700*2100
    X.Y.Z.Guiding tracksmm▲ ■ ▲
    Net weight (approx.)kg1050

    Standard Configuration:


    Drive screw (Taiwan)

    Electrical Box

    Powerful end mill head 16-segment speed change (A type belt vertical steel head)

    Spindle tie rod

    Spindle motor 380V-50HZ-3PH-2P/4P

    Abrasion resistant plate (X,Y Axis)

    Manual lubrication system

    Heat treatment grinding (X,Y Axis)

    Working lamp

    Toolbox



    Company Information:


    ASLT(Zhangzhou) Machinery Technology Co., Ltd. is located in Zhangzhou, Fujian, China. Our company is a Scientific and Technological Enterprises specializing in CNC machine research and development, manufacturing and sales. With over 20 years of CNC machine manufacturing experience, ASLT has accumulated strong technical force and has many professional and technical personnel.



    If you are interested in any items, please feel free to contact us. Thank you!
