    3D Manual Optical Measuring Machine High Resolution Color Digital Camera

    Ask Lasest Price
    Brand Name : Sinowon
    Model Number : iMS-2010P
    Certification : CE
    Payment Terms : 100% T/T In Advance
    Supply Ability : 100 sets per month
    Delivery Time : 25 work days
    • Product Details
    • Company Profile

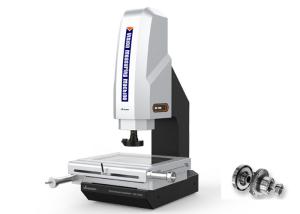

    3D Manual Optical Measuring Machine High Resolution Color Digital Camera


    3D Manual Optical Measuring Machine High Resolution Color Digital Camera


    Application :


    This Optical Measuring Machine is used to measure different types of precision finishing industries, such as gears, electronic parts, precision mold, watch, plastic, precision tool, spring, screw processing, plastic, rubber, camera parts, motor part and conductive rubber.


    Product Characteristic:

    • High precision Jinan Qing marble base and pillar, to ensure high stability and accuracy;

    • High precision light pole toothless and fast moving locking device, to ensure the error of return travel is within 2um;

    • High accuracy A class optical linear scale with precision working stage, to ensure the accuracy is within 3+L/200mm;


    Technical Specification:

    Mode

    iMS-2010P

    Code#

    521-140P

    Metal Table

    408x308mm

    Glass Table

    306x198mm

    X/Y-axis Travel

    200x100mm

    Z-axis Travel

    High-precision linear guide , working travel 200mm

    X/Y/Z-axis Travel

    0.0005mm

    X/Y-axis Accuracy

    ≤3+L/200(um)

    Repeatability

    3um

    Base and Pillar

    High Accuracy Jinan Qing Marble

    Illumination System(Software Adjustment)

    Surface: Stepless Adjustable 3-ring 8-division LED Cold Illumination

    Contour: LED Parallel Illumination

    LED Laser Navigation Lights

    CCD Camera

    High Resolution 700TV Color CCD Camera

    Zoom lens

    6.5:1 High Resolution Detented Zoom Lens

    Magnification:0.7X~4.5X;Video Magnification:24.5X~156X

    Working Environment

    Temperature:19°~24°

    Humidity:45% ~75%RH

    Vibration<0.002g,<15Hz

    Measuring Software

    iMeasuring 3.1

    Operation System

    Support XP,WIN7,WIN8.1,32/64 operating system

    Language

    English, Simplified Chinese, Traditional Chinese, other language versions can be added

    Dimension(W*D*H)

    790x617x1000mm

    Net Weight

    175Kg


    Standard Delivery:


    Product Name

    Code#

    Product Name

    Code#

    3D Measuring Software

    IM3.1

    Video Capture Card

    527-130

    Contour LED Parallel Illumination

    425-100

    DELL PC System

    581-960

    Surface 3R/8D LED Illumination

    425-130

    AV Video Cable

    581-940

    Laser Positioning System

    581-330

    RS232 Data Cable

    581-930

    6.5X Detented Zoom Lens

    421-100

    Optical Calibration Block

    581-800

    HD700TVL Color Camera

    484-130

    Operation Manual

    /


    Optional Accessories:


    Product Name

    Code#

    Product Name

    Code#

    Electronic Zoom Lens

    421-140

    Rotary Tables RT 2

    581-520

    12.5X Detented Zoom Lens

    421-100

    Rotary Tables RT 3

    581-530

    Coaxial Detented Zoom Lens

    421-120

    Working Cupboard ST 05

    581-650

    0.5X Auxiliary Objective

    423-050

    Swivel Center Support

    581-850

    2X Auxiliary Objective

    423-200

    Foot Switch

    581-350
