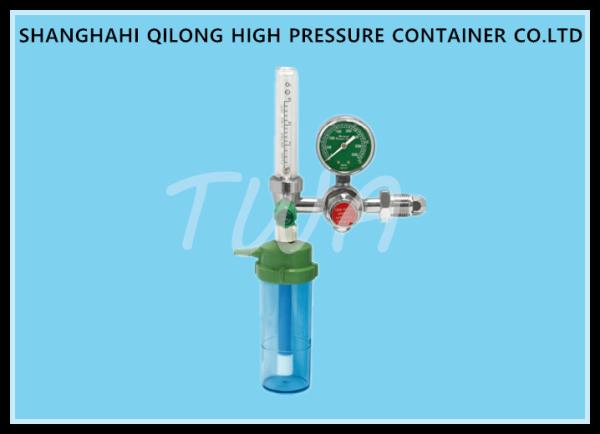

Accuracy Grade 4 Medical Oxygen Regulator , High Pressure Oxygen Gas Regulator

Accuracy Grade 4 Medical Oxygen Regulator , High Pressure Oxygen Gas Regulator

specifications:

Application:

Medical regulator is used for oxygen breathing in hospital

Product Description:

◆The flowmeter with humidifier is used in reducing gas pressure and adjusting the gas volume, which rescue patient and treat as oxygen therapy by hospital.Also may make using of other gas reduced pressure and the control flow.
Product main feature:
◆The product has artistic outlook, and flow control comfortable and stable.
◆The reductor is adjustable;The structure is unique, and the performance is reliable.
◆The stainless steel floater and the orange substrate flowmeter have a especially visual effect;
◆The international standard connect way, is suitable for all kinds of gas bottle installation.
Range of application
◆Give oxygen for first-aid or oxygen uptake for the people who are lack of oxygen.
◆Chrome plated brass body regulator
◆Back pressure compensated flowmeters
◆3000 psi maximum inlet pressure
◆For use with oxygen cylinder

Mainly function :
Oxygen flow range:1-10L/Min 1-15L/Min
Pressure reducing range:2.0-3.0kg
Relief valve pressure range :(3.5kg+0.5kg
Appliance introduction :
1.Before using ,please fill pour clear water into moisture bottle about one third reaching water
ine site.
2.DF-2 blind nut straw into bolt head ,make the pipe of flow meter square water line.
3.Put off regulator (9),put on oxygen tube switch ,so you will the data from needle position of pressure gauge (2).At last ,straw flow on/off at anti-clock wise accroding to patients need,
adjust switch.
4.If patient need oxygen for a long time ,can use nose pipe to help patient absorb oxygen.
5.Moisture bottle(20) circles at clockwise,adjust (17)oxygen hole to other site.
Attention point :
1.Before using the suction ,you will check all parts bad or good and clean it by drying choth .
2.Pressure gauge (2),regulator(3) no oil ,otherwise explode.
3.Clearwater in moistyre bottle keeps clean.
4.There is adjustable nut(6) in the front of plunder shall be straw at clockwise .
5.Relief value(7)(15) keeps out of danger.
6.Oxygen dosage is decided by doctor.
7.After using suction,put off the oxygen tube switch,make rest oxygen out,pressure gage to
zero site,last put off flow switch if using again,first put on the oxygen tube switch,avoid
exploding.
8.The product must be examined periodical,at least once every 6 month.

Packaging & Shipping:
About packing: Annual package
About our shipping:
1.The parts normally will be shipped out within 30 working days after the payment
confirmed.
2.The parts can also be shipped by DHL/TNT/UPS/EMS/FedEx, you are welcome to
choose the way you like.
3.We are not responsible for any accidents, delays or other issues caused by the forwarder.
4.Any import fees or charges are afforded by buyers.

Advantage:

1.Low MOQ: It can meet your promotional business very well.
2.OEM Accepted: We can produce any your design.
3.Good Service: We treat clients as friend.
4.Good Quality: We have strict quality control system .Good reputation in the market.
5.Fast & Cheap Delivery: We have big discount from forwarder (Long-term Contract).

    Shanghai Qilong High Pressure Container Co.,Ltd. was set up in 2003. Speializing in a wide range of gas cylinders, medical regulator, gas valve products.

    Shanghai Qilong High Pressure Container Co.,Ltd. is a global corporation integrating production, sales and service.

    We specialize in the import and export of gas cylinders including steel gas cylinders, aluminum cylinders used in industry and medical field; gas cylinder vavles; medical oxygen regulators and central oxygen-supplying systems.

    Our products are in accordance with the ISO, BS, EN, DOT, JIS and Chinese GB standards.

    We enjoy a great reputation in the international market. Our products have been exported to Europe, America, South-Africa, North America, the Middle East and Asia.

    Customers worldwide are warmly welcomed to contact us for more imformation.

    We are looking forward to making an establishment of corrprative business relationship with you.
