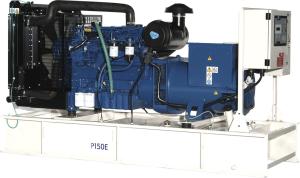

    200KW 300KVA Diesel Generator Set Convenient Soundproof

    Ask Lasest Price
    Brand Name : GSKA
    Model Number : Genset Diesel Generator
    Price : Negotiable
    Payment Terms : T/T L/C, 30% deposit,70% before delivery
    Supply Ability : 100 units/ Per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    200KW 300KVA Diesel Generator Set Convenient Soundproof

    200KW 300KVA Genset diesel generator set convenient generator



    The crankshaft of the diesel engine rotates the generator, which has DC generator and AC generator.


    Dc generator is mainly composed of generator housing, magnetic pole core, magnetic field coil, armature and carbon brush. Working power generation principle: When the diesel engine drives the armature of the generator to rotate, because of the remanent magnetic core of the magnetic pole of the generator, the armature coil will cut the magnetic force line in the magnetic field. According to the principle of electromagnetic induction, the magnetic induction generates current and output current through the carbon brush.


    The alternator consists of a permanent magnet (called a rotor) made of magnetic material with alternating north and south poles, and an armature coil (called a stator) made of silicon cast iron and wound with multiple sets of series coils. Working power generation principle: the rotor is driven by the diesel engine to cut the axial magnetic force line, the stator alternately arranged magnetic poles in the coil core to form an alternate magnetic field, the rotor rotates a circle, the direction and size of the flux change many times, due to the transformation of the magnetic field, the size and direction of the induction current will be generated in the coil and the current is conveyed by the stator coil.


    In order to protect the electrical equipment and maintain its normal operation, the current from the generator needs to be adjusted and controlled by the regulator.


    Engine Data:


    Manufacturer / Model:

    DCEC Cummins 6CTA8.3-G2, 4-cycle

    Air Intake System:

    Turbo, Water/Air Cooling

    Fuel System:

    PB/W type fuel pump

    Cylinder Arrangement:

    6 in line

    Displacement:

    8.3L

    Bore and Stroke:

    114*135(mm)

    Compression Ratio:

    17:1

    Rated RPM:

    1500rpm

    Max. Standby Power at Rated RPM:

    180KW/244HP

    Governor Type:

    Electronic

    Exhaust System

    Exhaust Gas Flow:

    34.7m3/min

    Exhaust Temperature:

    570℃

    Max Back Pressure:

    10kPa

    Air Intake System

    Max Intake Restriction:

    6kPa

    Burning Capacity:

    12.4m3/min

    Air Flow:

    238m3/min

    Fuel System

    100%( Prime Power) Load:

    215 g/Kw.h

    75%(Prime Power) Load:

    211 g/Kw.h

    50%(Prime Power) Load::

    216 g/Kw.h

    100%( Prime Power) Load:

    39.7L /h

    Oil System

    Total Oil Capacity:

    23.8L

    Oil Consumption:

    ≤4g/kwh

    Engine Oil Tank Capacity:

    18.9L

    Oil Pressure at Rated RPM:

    276-414kPa

    Cooling System

    Total Coolant Capacity:

    34L

    Thermostat:

    82-95℃

    Max Water Temperature:

    104℃


    Alternator Data

    Number of Phase:

    3

    Connecting Type:

    3 Phase and 4 Wires, “Y” type connecting

    Number of Bearing:

    1

    Power Factor:

    0.8

    Protection Grade:

    IP23

    Altitude:

    ≤1000m

    Exciter Type:

    Brushless, self-exciting

    Insulation Class, Temperature Rise:

    H/H

    Telephone Influence Factor (TIF):

    <50

    THF:

    <2%

    Voltage Regulation, Steady State:

    ≤±1%

    Alternator Capacity:

    182KVA

    Alternator Efficiencies:

    92.4%

    Air Cooling Flow:

    0.514m3/s
