    Red Light Positioning Metal Laser Cutting Machine Computer Control Technology

    Ask Lasest Price
    Brand Name : DXH Laser
    Model Number : DXH-FC3015
    Certification : CE,FDA,ISO9001
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50 sets per day
    Delivery Time : 7 work days
    • Product Details
    • Company Profile

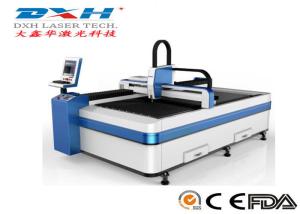

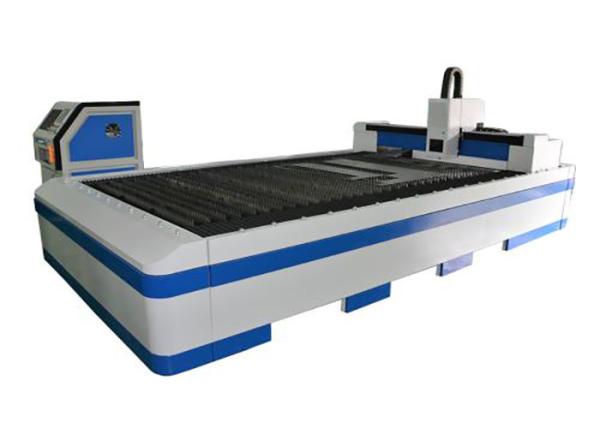

    Red Light Positioning Metal Laser Cutting Machine Computer Control Technology


    DXHFC3015 500 Watt Fiber Laser Cutting Machine For Tubes Pipes Automatic Cutter System PC Controller



    CNC LASER METAL CUTTING MACHINE INTRODUCE


    Laser Cutting Machine integrates optical, mechanical and electrical technology into one machine, which adopts laser technology, computer control technology and high-performance CNC (computer numerical control) laser power system. Laser Cutting Machine is capable of processing all kinds of sheet metal with high speed and efficiency.

    Laser Cutting Machine is applied in both metallic sheet and pipes cutting. The maximum size of sheet it can cut is that 3000mm×1500mm, the maximum size of pipes is that thickness 3mm, length 6000mm, round pipe Ф25-Ф160mm, square pipe 25mmx25mm-100mmx100mm (diagonal 30mm-160mm). The products will have smooth edge with high quality surface finish, small kerf width and little heat effect. The machine is especially suitable for cutting metal sheet or pipe.


    Technology Specification
    TypeDXH-FC3015
    Processing Area( Long*Weight)3000*1500mm(Optional)
    X Axle Travel1525mm
    Y Axle Travel3025mm
    Z Axle Travel10mm
    X/Y Axle Positioning Accuracy±0.03mm
    X/Y Axle Repeat Position Accuracy±0.02mm
    Max Acceleration0.5G
    Cutting Thickness≤20mm
    Laser Power500-3000W
    Control SystemPC
    PositioningRed Light
    Total Power8-20kw
    Power Supply380V/50HZ

    Machine parts list
    NoItemBrandOrigin
    1MachineQiaolianChina
    2ACQiaolianChina
    3Laser brandIPG/TrumpfGermany
    4Laser headRaytools/PrecitecSwiss/Germany
    5ChillerHansChina
    6CNC controllerCypcut/BeckhoffChina/Germany
    7Gear rackAtlanta/AlphaGermany
    8Linear guideBosch RexrothGermany
    9ServoYaskawa/BeckhoffJapan/Germany
    10Pipe nestingLantekSpain
    11GearboxShimpo/StoberJapan/Germany
    12Proportional valveSMCJapan
    13Pressure valveBurkert/LaneyGermany
    14Auto height controllerBCS100/PrecitecChina/Germany
    15RelaySchneiderFrance
    16Solenoid valveSMCJapan




    RFQ

    Question 1: I want to buy this machine,what suggestion can you give?

    Answer:What material do you processing? What's the size of your material?(Better show me your product picture)


    Question 2: What about the delivery time?

    Answer: We are the manufacturer,for standard machines, about 7-10 working days.


    Question 3: Where's your factory located? How can I visit there?

    Answer: Our factory is located in Kunshan City,China. If you want to visit us, we will arrange to pick you up at airport or station.


    Question 4: This is the first time I use this kind of machine, is it easy to operate?

    Answer: There are english manual or guide video that show how to use machine.


    Question 5: If machine have any problem after I using, how can I do ?

    Answer: The warranty is one year.Within the warranty period if machine have any problem we will supply the accessories free.




    For more machine information, Please contact with Lucky at any time.

    All our staffs sincerely invite you and your team visit our company at any time.
