Line Array Sound System , 2x1"+10" 400W Line Array Speaker For
Living Event, Nightclub, Disco, Church, Conference, Auditorium,
Wedding, DJ And Party
Quick Detail:
Multipurpose line array speaker system. LA-110 fixed with Neodymium
drivers, light weight, sound direction adjustable. Single 18" horn
loaded subwoofer LA-110S has big interior space to hold 2pcs LA-110
to avoid damage during transport and save sea freight charge.
Description:
LA-110 + LA-110S line array speaker system is designed for small
and mid living event, outdoors and indoors applications with high
requirements on SPL, sound quality, stability, and dispersion.
LA-110 is fixed with 2pcs 1" HF and 1pcs 10" LF neodymium drivers.

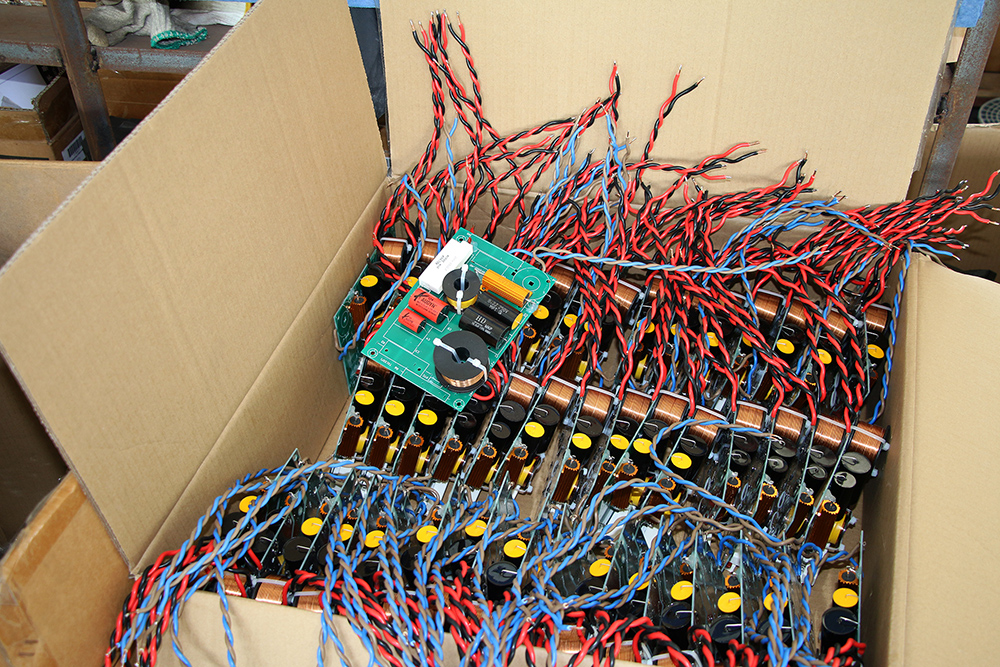

Crossover mode: PASSIVE(wth built in crossover, and the crossover
is fixed with AUDYN capacitors-the one d&b, CODA, TW AUDIO and
other big brands use in their loudspeakers). Each LA-110 is
400W@8ohm. Parallelly connect 2pcs LA-110, you get 4ohm. As shown
in the picture, every LA-110 is fixed with 2pcs NL4MPR metal
connectors at the rear panel. These connectors ensure high
durability and make the speaker look higher end and more beautiful.
LA-110S is one big horn-loaded subwoofer with single 18" LF neodymium
driver with power handling capacity 600W (rms). The cabinet is
fixed with 4 castors, easy for transport during events. In order to
save space during transport and avoid damage, the big interior
space of each LA-110S can hold 2pcs full range speakers LA-110. For
single 18" subwoofers, you have another two options: LA-210S(BANDPASS design) and M-618B(Direct reflex design).

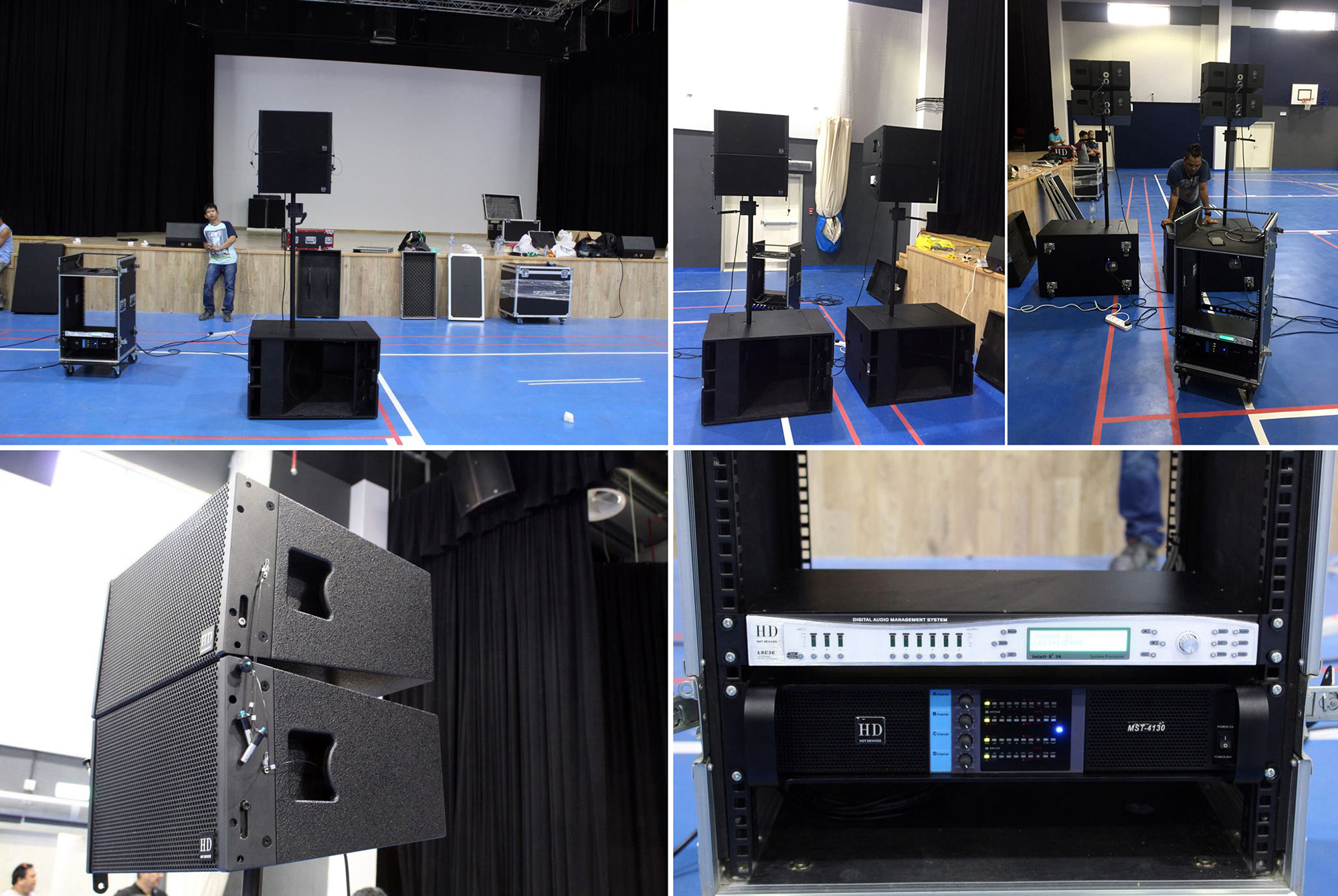

System configuration: LA-110 can be pole mounted on subwoofer LA-110S,and sound direction
can be adjusted via the two mount hole at cabinet bottom or the
hardware at cabinet rear panel. For fixed installation, you can fly
LA-110 with T-Bar and put subwoofer LA-110S on the ground. To set
up LA-110 + LA-110S line array speaker system + M4 coaxial stage
monitors, you can use our 4 channel switching amplifier FP 10000Q(Also model MST-4130: 4*1300W@8ohm and 4*2200W@4ohm) and LSC36(or LSC48)signal processors.
Black/White/Gray/Purple finish available for options to meet the
requirements for different venues.
Want high resolution pictures, have further questions and want to
know prices? For a fast and easy communication, please contact us
at Whatsapp and our number for Whatsapp is +86 13512754579. Our FACEBOOK page: MasterSound.GuangZhou. Or you can send your detailed requirements to
our mailbox info@master-sound.cn.
Applications:
Living Event, Nightclub, Disco, Church, Conference, Auditorium,
School, Background Music, DJ And Party
Specifications:
| LA-110 (Crossover Mode: PASSIVE) | LA-110S |
| Components: | 2x1"+10"(All Neodymium Drivers) | 1x18"(Neodymium driver) |
| Nominal Impedance: | 8 ohm | 8 ohm |
| RMS Power Handling: | 400 W | 600 W |
| Frequency Response: | 60-18KHz | 35-180Hz |
| Crossover Point: | 2 KHz | ------- |
| Sensitivity(1W/1M): | 100 dB | 100 dB |
| Max. SPL: | 123 dB(continuous), 129 dB(peak) | 126 dB(continuous), 132 dB(peak) |
| Dispersion(HxV): | 120°x15 ° | ------- |
| Dimensions(HxWxD): | 298x532x426mm | 612x950x652mm |
| Packing Dimensions: | | 920(with cover&castors)x950x600mm |
| Net Weight(Kg): | 20.5 | |
| Connector: | NL4MPR | NL4MP |
Competitive Advantage:
Neodymium HF and LF drivers, PASSIVE crossover mode, high power
handling capability, good sound quality, light weight, easy to set
up the system, economic package for so many applications
