3 Axis Milling Machine computer numerical controller With Tool
Magazine Function
SZGH-CNC1000MDcb-3 is specialized in 3 aixs CNC milling machine
center application , Which can control 3 feeding axes,&support
incremental & absolutely servo system. .It supports Macro function
& PLC function.specailly applied to big type CNC milling machining
center, be able to support arm type tool , line type and dis , and
umbrella type tool magazine.
Feature
1) The three axes of X,Y,Z control,three axes linkage movement.
2) 2ms interpolation cycle,1um precision.
3) 5MHz Output Pulse Frequency,Maximum speed: 300m/min,Feeding
speed: 150m/min
4) Multiple function,it can realize the drilling/boring,roughing of
roun groove/rectangle groove,finishing of full
circle/rectangle,continous drilling of straight line/rectangle/arc
etc.
5) Built-in standard PLC program,and can be customized edited
according to customer's askes.
6) Memory Capacity: 128MB,User Store Room: 110MB.
7) 8.4 inches(800*600) real colour LCD displayer.
8) Support Metric system/Inch System,with function of auto
charfering.
9) Display in Chinese and English,which can be selected by
paramter.
10) With USB interface,support USB file processing,software
upgrade.
11) DNC in high speed,realize part program real-time transmission
processing.
12) Analog voltage output of 0V~10V in two channels,support
two-spindle control.
13) Support external MPG.
14) Basic I/Os: 56*40, 40*32 can be edited freely.
15 )cutter offset : C
16) English menu, program and interface, full screen edition
Application : CNC wooding progressing equipment,CNC milling
machinery , CNC drilling machinery ,
CNC router machine, and CNC engraving machine

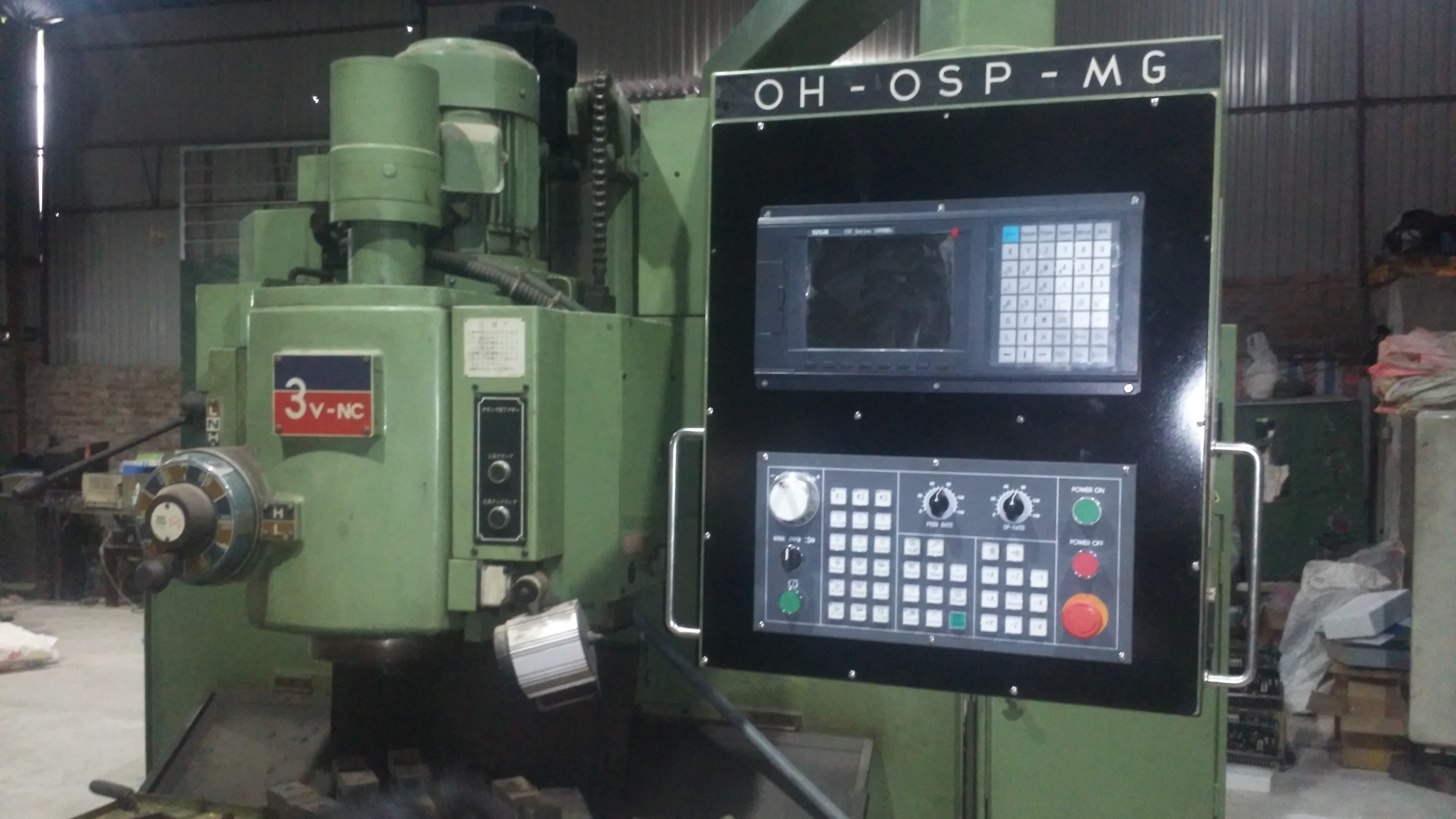

Our Cooperation Partner Application Machine:
Technical Specifications
Number of control axes
• Number of control axes: 3 axes ( X Y Z )
• Number of linkage axes: 3 axes ; Interpolation Axes: X Y Z ;
Linear Interpolation: X Y Z ; Arc Interpolation: 2 axes.
• Number of PLC control axes: 3 axes
Feeding axes function
• Minimum command unit: 0.001mm
• Position command range: +/- 99999.999
• Max speed: 300 m/min ; Feeding speed:0.001-150m/min
• G00 rapid override: Total 8 levels: 0~150%,real-time adjusting
• Feeding override: Total 16 levels: 0~150%,real-time adjusting
• Spindle override: Total 16 levels: 5%~150%,real-time adjusting
• Interpolation mode: Interpolation of linear ,arc ,spiral and
rigid tapping
• Auto chamfering
Acceleration and deceleration function
• Cutting feeding: Acceleration and deceleration
• Rapid traverse: Acceleration or deceleration
• Tapping
• The starting speed,finishing speed and time of acceleration and
deceleration are set by parameter
Spindle function
• Analog voltage 0~10V output in two channels ,support two-spindle
control
• Spindle encoder feedback in one channel,the resolution of spindle
encoder can be set
• Spindle speed: It is set by speed parameter,max spindle speed
also coressponding to 10V
• Spindle override: Total 16 levels: 5%~150%,real-time adjusting
• Spindle constant surface speed control
• Tapping cycle/ Ragid tapping
Tool Function
•Tool length compensation
• tool nose radius compensation (C type)
• Tool wearing compensation
Precision compensation
• Backlash compensation/Pitch error compensation in memory type
PLC function
• The refresh cycle: 8ms
• PLC program download by USB interface
• PLC program can be customized edited
• I/Os : 56*32, 40*24 I/Os can be edit freely
Man-machine interface
• 8.4'' large screen real-color LCD , the resolution is 480 000
• Display in English
• Display in two-dimensional tool path
• Real-time clock
We Can Support Total CNC Solution!!!
