Stacked Magnetic RJ45 Jack Modular 1G 2x6 Supports UPoE+ With Bi Color LED

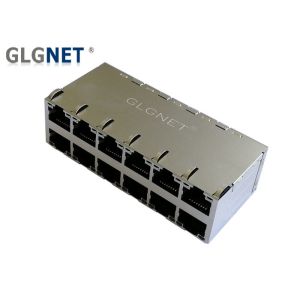

1G 2x6 Stacked Magnetic RJ45 Modular Jack with Bi Color LED supports UPoE+

1. Magnetic RJ45 Jack Product Structure​

• 2 x 6 Prots
• With LED Lights
• With Shield Shell
• With Transformer
• With Latches
• Height ( mm ) : 25.27
• Length (mm) : 41.33
• Supports 1000 BASE - T Transmission Speed
• Supports POE + Function ( 90 W )

2. Magnetic RJ45 Jack Materials

• Housing: Class Filled PBT UL94V-0 (ROHS)
• Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 30 Microinches Gold At Mating Interface;
• Shield: 0.2mm Thickness With Brass
• Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
• The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
• Operating Temperature: 0 ℃ to +70 ℃, Storage Temperature : -40 ℃ to +85 ℃

3. Magnetic RJ45 Jack Attributes

• Place of Origin: Guangdong, China (Mainland)
• Brand Name: GLGNET
• Model Number: JDEA6E1001-D1D1 ( Stacked RJ45 Connectors with POE + )
• Type: RJ45
• Applications: 1000 BASE - T
• Gender: Female
• Speed: 100OBASE
• Number of Ports: 2 X 6
• Application - LAN: Power Over Ethernet
• Latch: DOWN
• Pin Type: THT SOLDER
• LED Option: Green/Yellow
• Shield EMI Tabs: Yes
• Transformer: YES
• POE: YES
• Name: Stacked RJ45 Connectors with POE +

4. Magnetic RJ45 Jack Electrical Specification

5. Magnetic RJ45 Jack Applications

• Internet of Things (Ethernet)
• IP cameras, surveillance, and phones
• Access points
• Network interface cards (NIC)
• Industrial process control
• Networking and communications
• Broadcast video
• Storage
• Set-top boxes and video
• Power over Ethernet (PoE)
• Test and measurement
• Multifunction printers (MFP)

6. Magnetic RJ45 Jack Mechanical Drawing

7. Our Advantages:

• 20 years experiences in Magnetic RJ45 Connector
• 1500 Employees
• 58 R&D Engineers.
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
• 20KK Prots / Month Capacity
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification

8. Customization Services

• 90 ° or 180 ° Orientation
• Single Port or Multiple Port, Ganged structure or Stacked Structure;
• With or without POE function;
• Supports to custom different structure, Tab - up or Tab - Down, Different size, Different Color, With or without Transformer;
• Supports to custom different Pin Length;
• LED color can be green, yellow, orange, red and so on;
• Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
• Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
• Being with or without EMT TAB ( EMI Spring , EMI Finger );
• Being with or without lightpipes;
• Printing LOGO
