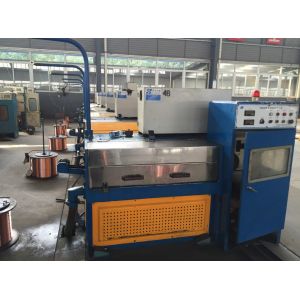

HXE-24DW Copper fine wire drawing machine
I. Quick Details
24DW Copper fine wire drawing machine is used to drawing copper
wire from 0.6mm-1.2mm to 0.08mm-0.5mm.
II. Specifications
1. Inlet wire diameter: 0.6mm-1.2mm
2. Outlet wire diameter: 0.08mm-0.5mm
3. Speed: 2500mpm, Capacity: 0.2mm, 30kg/h; 0.3mm, 37kg/h; 0.4mm,
46kg/h; 0.5mm, 52kg/h.
4. Dies number: 24
5. Slip ratio (Area reduction) : 13%+ 8%
6. Wire drawing mode: horizontal-mode and 4 axes
7. Driver: by dual Inverters control, Brand: Inovance,Chinese
famous brand, 15kw+3.7kw.
8. Main motor: 15KW AC 3 phase motor
9. Spooler motor: 3.7KW AC 3 phase motor
10. Motor brand: Wan Nan motor, China classical brand
11. Capstan: Ceramic plasma
12. Max capstan diameter: 242mm
13. Max fix speed capstan: 207mm
14. Machine structure: Cast iron
15. Reverse system: PID synchronous control spool
16. Transmission: Flat belts
17. Pay-off method: Over-head
18. Tension control: Weight balance by swing arm
19. Lubrication type: spray, Grade 2.5%-3%, Capacity 40L/min,
20. Bobbin size: 300mm, material steel, 17kg.
21. Take up: Shaft type
22. Bobbin capacity: 50-60kg/max
23. Brake: Magnetic brake
24. Power source: Customize
25. Machine dimension: L2550mm*W1600mm*H1590mm, Machine weight:
2500KG
III. Advantage and after-sale service
A: Advantage
(1). HENGXIE has some world famous parts suppliers, has special
lubrication system for the gears and bearing.
(2). Body and other key components and parts are produced by our
own factory , quality is reliable.
(3). Our company’s developing process in more than 10 years.
B: After-sale service
Our company for all machine product, since the shipment date, our
company free after sale maintenance service guarantee period is:
(1) 1 year for mechanical part.
(2) 6 month for electrical part.
Under these situation mentioned, the Seller will not take
responsibility, but if the Buyer agree, will charge fees
accordingly to repair the machine.
A. Due to wrong operation while shipping.
B. Due to Buyer`s wrong preparation that may cause damage to the
machine.
C. Due to Buyer`s wrong operation that may cause damage to the
machine.
D. Not in the consuming part list.
E. After agreement are made for the shipping, for any damage, Buyer
should inform Seller in letter form to repair in seven days, If
beyond the dare, Seller shall take no responsibility.
F. For any other failures due to acts of God (such as lightning,
typhoon, earthquake, riots, war, fire or flood) and other factors
that will cause damage, Seller shall take no responsibility.
G. Seller guarantee provide long term support regarding the parts
and teach. After warranty, will charge accordingly.
IV. Components
| Name | Quantity |
| 1. Pay-off shelf | 1 set |
| 2. HXE-24DW Fine copper wire drawing machine | 1 set |
| 3. Bobbin Unloading device | 1 set |
| 4. Spare parts | As per List |
| 5. Operation manual | |
V. Operation details
1. Open the power switch of the electrical cabinet.
2. Use the Foot-switch while make the wire through the dies.
3. After make the wire through some dies, should open the
lubrication oil to make sure no wire break.
4. Make the wire through the take-up part well arranged, then close
the door.
5. According to the user`s require to set the Length-counter,
adjust the balance arm.
6. If wire breaks, will stop automatically, and the Fault Indicator
light will open.
After connect the wire, press the Fault Reset button(Yellow button)
and the On button (Green button), to run the machine again.
7. Press Emergency Stop button(Red button) to shut down the machine
immediately.
After solve, press the button again to run the machine.
8. After set the Length-counter, the machine will stop
automatically when reach the length set.
After change the Spool, please press the Length Reset button(Yellow
button) and the Spool Reset button(Yellow button) to run the
machine again.
9. After the machine stop(no running at all), then switch the Pump
switch to stop the lubrication.
