    Automatic Radiator Wavy Fin Making Machine PLC / Inverter / AC Servo Control

    Ask Lasest Price
    Brand Name : WONDERY
    Model Number : BWJ
    Certification : CE
    Price : TO BE NEGOTIATED
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 1000 SETS PER MONTH
    Delivery Time : 60 WORKING DAYS
    • Product Details
    • Company Profile

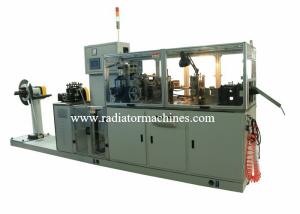

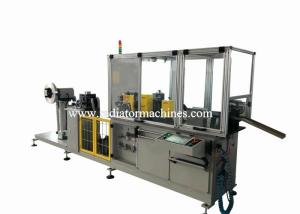

    Automatic Radiator Wavy Fin Making Machine PLC / Inverter / AC Servo Control

    Automotive Automobile Radiator Side Plate Fin Tube Install Assembly Machine


    This fin roll forming machine is suitable for the production of high-precision fins for heat exchange systems in industries such as automobiles, household air conditioners, and power stations.

    High Quality Automatic Radiator Wavy Fin Making Machine is used to produce heat exchange wavy fins with or without windows.The machine is equipped with the following devices: decoiler, tensioning device, feeding, interval oil lubrication, fin forming, correction and cuttig function, strip run-out detection, blockage detection device, cutting fault indicator, fin forming unit overloading protection device, and fault indication light.

    The fin making machine adopts PLC, inverter, AC servo control, and touch screen control. The parameters are easily set through the touch screen.


    2. Technical Parameters


    ItemParameters
    Tubes to be bended one time4 pcs, 6pcs or 8 pcs
    AdvantageCombination of copper tubes with 2 different center distance; combination of different diameter copper tubes with same center distance
    Copper/aluminum tube diameterDia 5-15.88mm
    Long U tube length200-4000mm

    3. Structure Characters:

    3.1 The hairpin tube bending machine for HVAC industry has the features of compact design, Servo motor driving, Manual feeding, Operation in

    manual or automatic mode For option

    3.2 Process of automatic operation mode is material feeding by manual →mould tooling clamping→ oil spraying → bending → mandrel back → clamp loose → unloading → unloading home → bending tooling home

    3.3 Hairpin Leg difference in length less than 0.5mm

    3.4 No obvious clashing, abnormal “bump”, corrugation neither other

    deficiency. Ellipse less than 8%

    3.5 Roundness tolerance of bend area <±.012”;

    3.6 Parallel tolerance for the two straight legs ≤3%;

    3.7 Running and operating smoothly.
