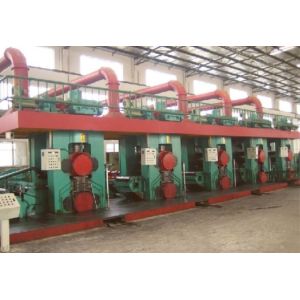

0.8-1.5 X 600mm 4 High Tandem Cold Mill With Spiral Accumulator 700

Tandem 4 High Cold Rolling Mill Line With Spiral Accumulator ( 700 )

Spiral accumulator in tandem cold rolling mill line accumulates 2 or 3 coils in loop to ensure the tandem mill line continuously work. The continuous rolling output large scale cold rolled coils production. The tandem cold rmill line with accumulator specially suit plain carbon steel coil cold rolling.

Plain carbon steel coil processing plant witness tandem cold rolling mill who continuously reduce steel plate thickness at hundreds of meters per minute, the tandem rolling mill can give multiple production.

The competition of the tandem mill is continuous rolling: one way from uncoiling to coiling and working without stop, so, automatic shear and welding machine, strip accumulator and double recoilers are on the rolling line.

Automatic shear & welding and spiral accumulator keep uncoiling and strip feeding continuous, double coilers are good way to keep continuous coiling. These characters of tandem rolling machine make automation and production go to huge scale.

Tandem cold mill requires:

• Huge power supply and consumption, high efficiency cold mill can save power and control rolling process cost.
• Emulsified water for rolling process cooling needs a big pool with filtering system to keep enough clean coolant.
• Electrc control cabinets and panels are high precision programming and reaction system to ensure high speed precision rolling.
• Tension cell synchronize the rolling speed and tension between two mills.
• Operator must be skilled to run the mill
• Thickness gauges are necessary to control sheet gauge.
• Thin oil lubricating system for gearboxes of mill and recoiler.

For non pickled black Hot Rolled mild steel strip cold rolling, two heads tandem mill is popular, because it reduces thickness two passes continuously to reach the required 50 -60% gauge reduction.

The rolling process includes uncoiler, shear welder, accumulator, two heads mill and recoiler. hydraulic system, electric control system, lubricating system are the indispensible conditions for the tandem cold mill smooth running.

Composition and Parameters:

We are metal coil sheet processing machine manufacturer and supplier, we dedicate to supply of good quality machines and provision of complete services.

We work in the coil processing machine field for over 20years, we design and make each machine customized. From machine parts materials selection, each part machining and treatment, whole machine assembly and surface painting, we carefully note each detail of whole production process to achieve good quality machine result.

Rich Experiences:

Our people witness the developing process of sheet processing machines and develop ourselves with market, thus able to supply customers good machines at competitive prices.

Efficient Responses:

Investment of metallurgical equipment is a system engineering, which requires comprehensive plan and successive execution. The efficient responses of the equipment suppliers are very important. We did well in this and cooperate with customers for long time.

Senses of Mission:

Nothing proceeds smoothly without any problem, the important is to face and solve the problem. We put problem solution in priority, never escape responsibilities. Supply of good machines creating profit for customers is our mission, the most profitable equipment is the best. Customer is the King, we must provide him the most suitable machine to return his trust.

After-sale Services:

We can send engineers to customer plant to do machine installation and commissioning; we provide hydraulic schematic drawing, electric principle diagrams, mechanic spare parts drawings, civil works drawing; We always listen and give consultation.

Welcome to inquire us! welcome to visit our plants!
