Wifi Outdoor Pole fixed Advertising Scrolling Led Advertising Light
Box Video advertising Display
1. 4 layers PCB and copper plating thickness > 18mil
2. Stainless steel screws when assembly
3. Disassembly and assembly are quick and easy
4. 3 to 5 years warranty
5 .Energy-saving 60% : driving with low frequency current,
heat-dissipated roller fans with automatic temperature-controlling
device.
6. With pure golden wire connection in LED
7. layers PCB and copper plating thickness > 18mil
8. Grand A row material for module frame and mask
Brief introduce:
1. The first level LED chip from Taiwan Epistar
2. High brightness:Above 5500 nits/sq.m
3. High Refresh Rate:≥1920Hz,Take clear picture with mobile phone
4. Ultra Thin Design:the thickness of cabinet with backdoor is only
17cm
5. Fast and easy to assemble:There have fast lock between cabinet
side
Advantages:
P4 P5 P6 P8 pole led display signs wifi 3G outdoor advertising
street led display
Remoted control led banner screen pole fixed
Indoor or outdoor appication in Shopping mall, high way, Street
advertising
Remote control any time and any where.No area limited.
Vivid video, pictures, texts rolling advertising Led banner screen
Nationstar Lamp SMD3535 PCB 4 layers 1.6mm MBI5124
Several methods to control (Offline-USB, 3g,4g, wifi, cloud cluster
group, remote)
HD advertising video dazzle coming to your life and your
buisness,flouring everythere.

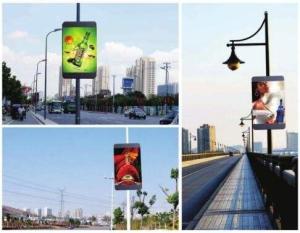

Currently Led pole screen is popular in outdoor digital media
application. It has advantages like customized display sizes, high
definition, friendly user interface and multi-functional control
methods.
Led pole screen can be designed as front open, front access screens
to make the maintanance easy.
Outdoor LED Display P6
| Pixel Pitch | 4mm | 5mm | 6mm | 8mm |
| LED Configuration | Epistar SMD2121 | EpistarSMD2727 | EpistarSMD3535 | EpistarSMD3535 |
| Pixel Density | 62500dot/m2 | 40000dot/m2 | 27778dot/m2 | 15625dot/m2 |
| Module Size | 256x128mm | 160x160mm | 192x192mm | 256x128mm |
| Module Resolution | 64x32dot | 32x32dot | 32x32dot | 32x16dot |
| Display Size | 768x1536mm | 800x1600mm | 768x1536mm | 768x1536mm |
| Cabinet Size | 768x1740x80mm | 800x1850x80mm | 768x1740X80mm | 768x1740X80mm |
| Cabinet Resolution | 192x384dot | 160x320dot | 128x256dot | 96x192dot |
| Cabinet Weight | 55kg | 60kg | 55kg | 55kg |
| Maintenance | Rear | Rear | REAR | Rear |
| Scanning Mode | 16S | 16S | 8S | 8S |
| Brightness Intensity | ≥2000CD/m2 | ≥5500CD/m2 | ≥7000CD/m² | ≥6500CD/m² |
| Viewing Angle (H/V) | 120° | 120° | 120° | 120° |
| Warranty | 3 years | 3 years | 3 years | 3 years |
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, wireless,
internet etc. |
Pre-sale service:
1. Reply enquiries in 16 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's
requirement.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance
guidance and problem solution supplied in 48 hours.
For fast response, Whats app: +86 17080340059 / Skype: hustchen0426
