    RS232 RS485 7 Inch TFT Panel Smart HMI Display Touch Screen Small Size

    Ask Lasest Price
    Brand Name : LONGYU
    Model Number : HMIAT3070L
    Certification : CE RoHS
    Price : TBA
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000PCS/Month
    Delivery Time : 7-10 Work Days
    • Product Details
    • Company Profile

    RS232 RS485 7 Inch TFT Panel Smart HMI Display Touch Screen Small Size

    Product Description


    Smart RS232 RS485 Display Programmable Small Size PLC Display Touch HMI

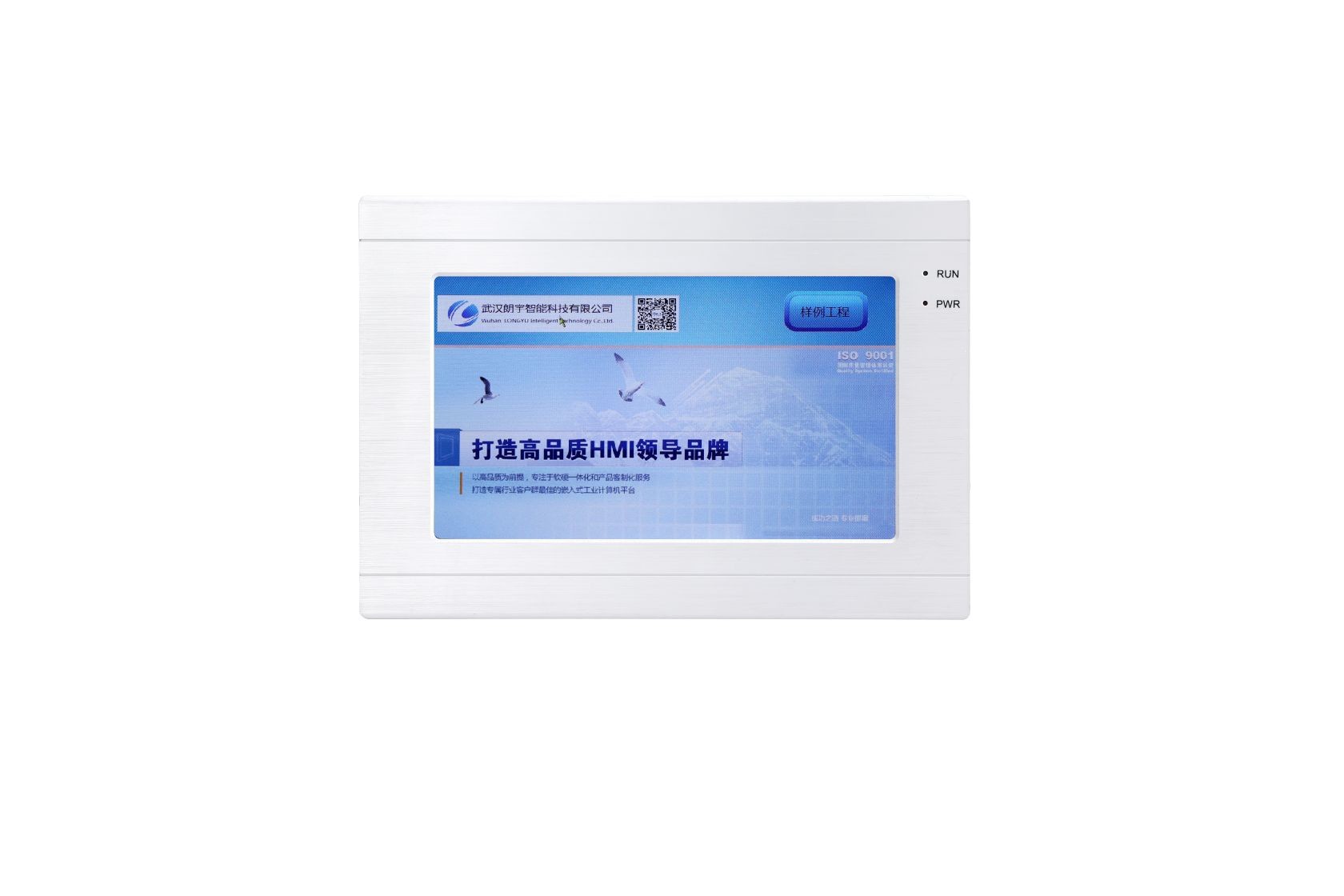

    HMIAT3070L is a high-performance embedded integrated man-machine interface with industrial grade cortex A7 (dual core dominant frequency 1.2 GHz) CPU as the core. The product is designed with 7-inch LED LCD (resolution 800 * 480) and four wire resistive touch screen. CrossWin industrial configuration software is preinstalled at the same time.


    Specifications:

    LCD screen:7-inch TFT LCD, LED backlight, color 65536 bits

    Resolution:800*480

    Display brightness:300cd/m2

    C P U:Cortex A7,dual core 1.2 Ghz

    Memory:128M DDR2

    Touch screen:Four wire resistive, click more than 1 million times

    Storage device:128M NAND FLASH

    SD card extension:Optional, Max scalability 64G


    Product Performance:


    ·LCD screen::7-inch TFT LCD, LED backlight, color 65536 bits
    ·Resolution:800*480
    Display brightness:300cd/m2
    ·C P U:Cortex A7,dual core 1.2 Ghz
    ·Memory:128M DDR2
    ·Touch screen:Four wire resistive, click more than 1 million times
    ·Storage device:128M NAND FLASH
    ·SD card extension:Optional, Max scalability 64G
    ·Interface:1*RS232,2*RS485,1*LAN
    ·Extension interface:2*USB 2.0(HOST)
    ·WIFI interface:None
    ·GPIO interface:8 GPIO interface
    ·Communicationisolation:None
    ·Real time clock:Available
    ·Buzzer:Available
    ·Operational temperature:-10℃ to +50℃
    ·Degree of protection:IP 65( operating surface)
    ·Input voltage:12V to 30V Wide range input voltage
    ·Anti interference:Power frequency magnetic field interference level 5,Magnetic field strength 100A / M
    ·Product Size:W206mm×H142mm×D34mm
    ·Opening size:W192mm×H134 mm
