Model name: HNS255DL DALI-2 multi-sensor input device
D4i microwave motion sensor for indoor lighting
HNS255DL feature
1, 5.8GHz C-band microwave motion sensor.
2, Operating voltage: 220-240V AC, 50/60Hz.
3, Stand-by power: <1w.
4, Stand-by current consumption: max. 2mA from DALI Bus.
5, Daylight sensor lux setting: 10-2000lux.
6, Individual adjustment of parameters with configuration software.
7, DALI-2 multi-sensor input device.
8, D4i approved, fully compatible with DALI Part 351(Type B).

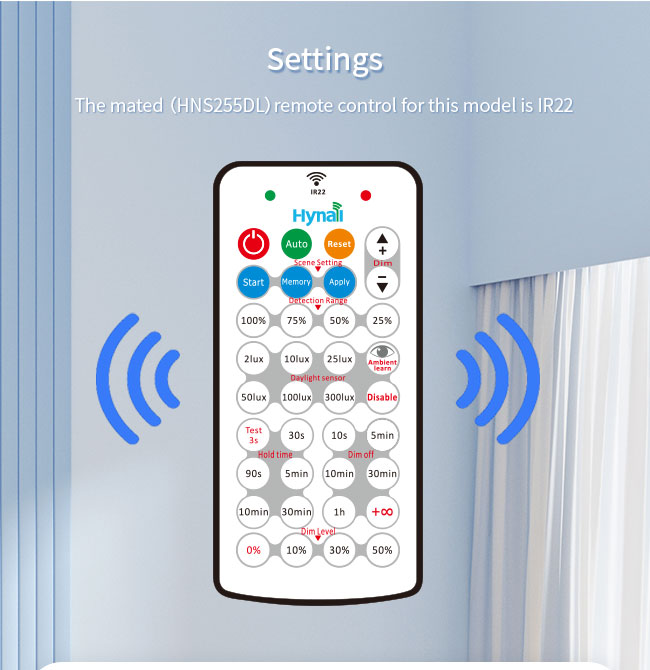

9, Settings via both DALI Bus and remote control.
10, Detection range up to 12m in diameter.
11, Mounting height: 3-6m.
12, Operation temperature: -20°C ~ +70°C.
13, RoHS compliant
DALI-2 & D4i standards
1, EN62386-101 Ed.2
2, EN62386-103 Ed.1
3, EN62386-303
4, EN62386-304
5, EN62386-351 Type B
Specification of dali light sensor

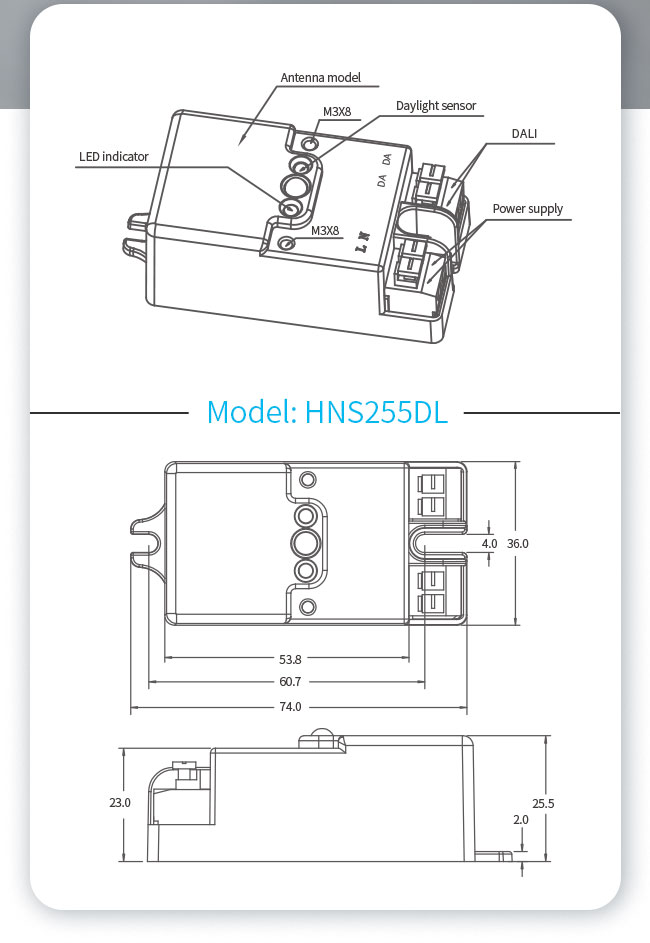

| Small size | 74*36*25.5mm |
| Type | DALI-2 multi-sensor input device |
| Grouping | YES |
| Input voltage | 220-240V AC |
| Output signal | DALI |
Why Choose Us:
| 1. R&D strength: | publish new items per 2 months,10+ year experience,alomost 100%
success rate |
| 2. Sales strength: | Professional sales,long term after-sale service promised. |
| 3. Complete&strict QC system | many years experienced officers,complete QN system including
IQC,IPQC,FQC,QN AND QE |
| 4. Product quality | Under 0.1% defected rate. 5 years warranty |
| 5. Certification: | CE,ROHS, ETL, FCC, RED |
| 8. OEM/ODM ability: | Over 5 years OEM/ODM experience |
FAQ:
Q1, Do you provide OEM/ODM services?
A: We have specialized R&D teams focusing on design,
engineering, electronics, optics and processing,
as well as lighting solutions, so definitely we can provide OEM and
ODM services.
Q2, How can I obtain a sample?
A: Contact us and we will handle it.
Q3, What is the production lead time?
A: We keep a ready to ship stock level on certain product lines,
others usually take 3-4 weeks.
Q4, What is the delivery time?
A: We offer shipping via air. The shipment time depends on the
choice of transportation.
