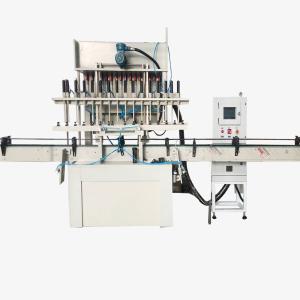

The disinfectant filling machine is specifically designed for filling highly corrosive liquids and cosmetic products that must not come into contact with metals. To address the evolving needs of various industries, we have developed high-quality automatic filling machines for disinfectants. All machine parts are constructed from anti-corrosion materials to ensure resistance to corrosion.
Key features include a conveyor, control box, PLC control, and touch screen operation, allowing for easy adjustment of size and parameters. All pneumatic components are imported for durability and stability. The machine also features pneumatic linkage control with a photoelectric sensor and automatic protection against bottle shortages. Its user-friendly design accommodates bottles of various shapes and sizes, making management easy.
Main Features:
1. Widely used for filling various types of liquids, including those prone to foaming and easy-flowing, in industries such as medicine, daily chemicals, food, pesticides, and specialized sectors. Examples include disinfectant water, vehicle urea, bubble water, detergent, glass cleaner, liquid fertilizer, and more.
2. The fully automatic self-flowing filling machine operates on a time quantification principle. It features PLC control and touch screen operation, utilizing reliable electrical and pneumatic components from domestic and international sources.
3. Supports submerged filling, where the filling head can be inserted into the bottle. It includes a special leak-proof device on the filling head, enhancing safety during the filling process.
4. Features a novel design with a user-friendly interface, strong adaptability, simple operation, accurate filling volume, easy maintenance, and stable performance.
5. Can be integrated with additional equipment such as an automatic bottle unscrambler, automatic capping machine, aluminum foil sealing machine, and automatic labeling machine to form a complete assembly line.
6. Convenient measurement adjustment with an automatic continuous adjustment device for high precision. Electrically controlled, it is easy to operate and provides a digital display of the filling volume for accurate adjustments.
7. For highly corrosive materials, the machine can be constructed with special materials to ensure durability and safety.
Main parameter
| | | | | | | | NP-VF-16 |
| | | | | | | | 16 |
| | 100-500,100-1000,1000-5000 |
Capacity(bpm)base on 500ml | 12-14 | 24-28 | 36-42 | 48-56 | 60-70 | 70-80 | 80-100 |
| | |
| | |
| | 220VAC SINGLE PHASE 1500W | 220VAC SINGLE PHASE 3000W |
Applications
Ideal for use with various types of plastic bottles in the daily chemical industry, including bottles for disinfectants, cleaners, medical alcohol, bleaching water, corrosive liquids, and more.
Product Details

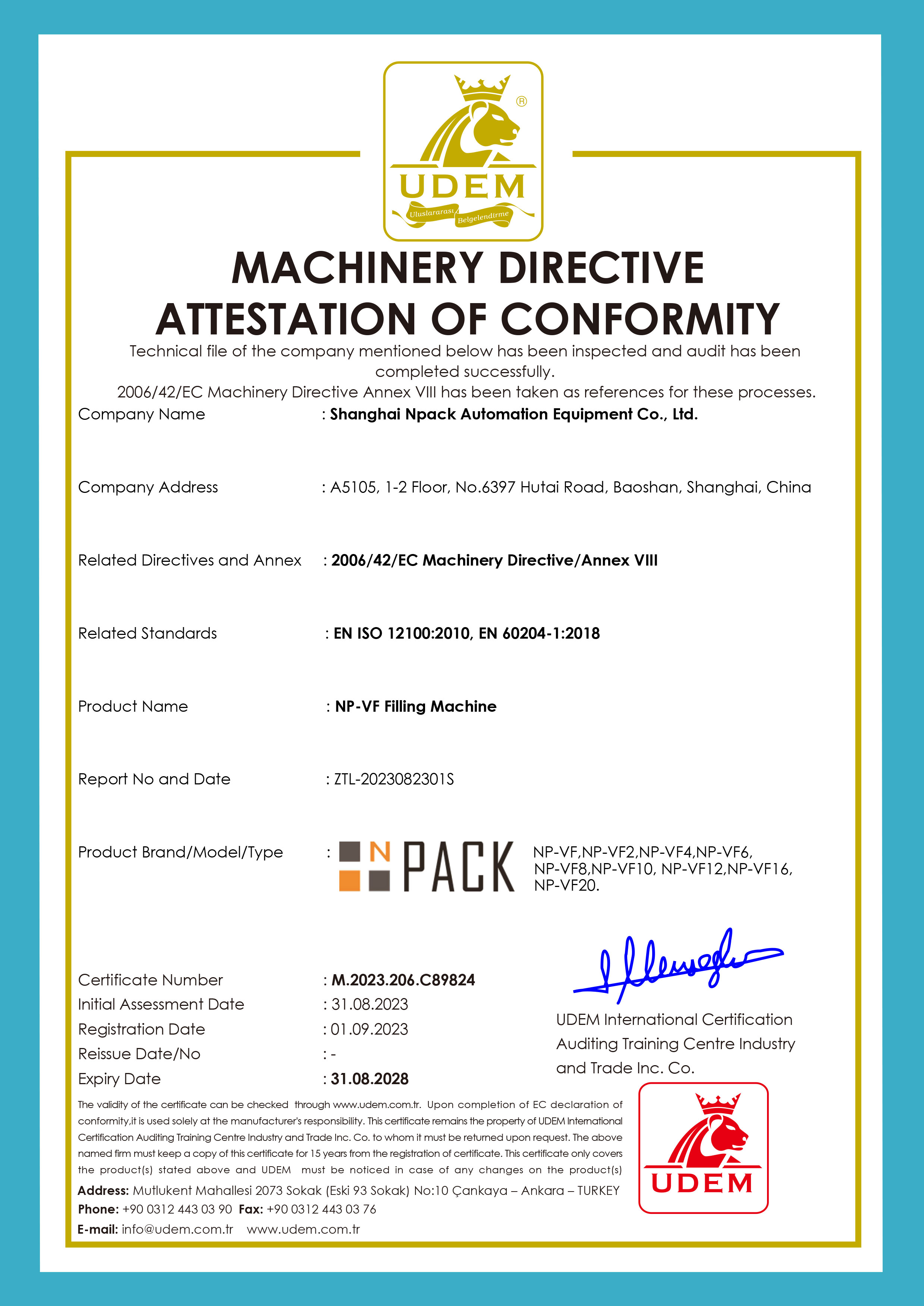

CE Certificate
Post-Purchase Support
1. Installation Service:
Our skilled technical team is ready to assist with the setup of your filling machine, offering a comprehensive package that covers installation fees, travel, meals, and any additional costs.
2. Training Programs: We ensure optimal performance of your filling machine through extensive training for distributors, operators, engineers, and technicians, available either on-site or at our manufacturing facility.
3. Warranty Service:
Demonstrating our dedication to quality, we provide effective repair services accompanied by a one-year warranty. Quick part replacements and fast troubleshooting responses are part of our commitment.
4. Consultation Services:
Take advantage of our no-cost consultation service to identify the ideal setup for your requirements. Our knowledgeable sales team will support you with detailed CAD drawings for the filling machine configuration.
5. Technical Assistance:
Benefit from our continuous, comprehensive technical support throughout the year. We offer quick feedback via email or phone to ensure your operation remains uninterrupted.
6. Spare Parts Provision:
To prevent any damage during shipping, a set of critical spare parts for the automatic filling machine is included free of charge. An extensive selection of high-quality spare parts is also available for purchase at any time.
