Carbon Steel Blacked Spring Lock Washers DIN 127 With Square Ends - B Type

DIN 127 Spring Lock Washers, With Square Ends -B Type Carbon Steel 70# Blacked

Characteristics:

Spring-loaded design: These washers feature a built-in spring mechanism that provides constant preload force after installation, effectively locking the shaft or bolt in place.
Square ends: The square-end design increases the friction between the washer and the contact surface, further enhancing the locking effect.
Material diversity: DIN 127 spring lock washers can be made from various materials such as stainless steel, carbon steel, etc., to suit different working environments and load requirements.
Standardized design: Adhering to the DIN 127 standard ensures that the washers' dimensions, shapes, and performance meet internationally recognized standards.

Advantages:

High reliability: The spring-loaded design and square-end structure ensure that the washers provide reliable locking effects under various working conditions, maintaining stability even in vibrating or impact environments.
Ease of installation: These washers can typically be installed by simple compression or expansion, without the need for special tools or complex installation processes.
Strong adaptability: Due to the elasticity of the spring, these washers can adapt to different diameters of shafts or bolts, providing wide applicability.
Reusable: With proper use and maintenance, DIN 127 spring lock washers can be reused multiple times, reducing maintenance costs.

Applications:

Shaft locking: In mechanical equipment, shafts are crucial rotating components. Using DIN 127 spring lock washers can effectively lock the shaft, preventing axial movement or rotation, ensuring the stable operation of mechanical equipment.
Bolt fixation: In applications requiring bolt fixation, such as bridges, buildings, and mechanical equipment, these washers ensure bolt tightness, preventing loosening and falling off.
Vibration and impact environments: In equipment operating in vibrating and impact environments, such as vibrating screens and crushers, DIN 127 spring lock washers ensure the stability and reliability of critical components.
High-precision equipment: In equipment requiring high-precision positioning and stability, such as precision machine tools and measuring instruments, these washers ensure the accuracy and reliability of the equipment.

Nominal Diameter		Φ2	Φ2.2	Φ2.5	Φ3	Φ3.5	Φ4	Φ5
d	min	2.1	2.3	2.6	3.1	3.6	4.1	5.1
d	max	2.4	2.6	2.9	3.4	3.9	4.4	5.4
n	Nominal Size	0.9	1	1	1.3	1.3	1.5	1.8
	max	1	1.1	1.1	1.4	1.4	1.6	1.9
	min	0.8	0.9	0.9	1.2	1.2	1.4	1.7
h	Nominal Size	0.5	0.6	0.6	0.8	0.8	0.9	1.2
	max	0.6	0.7	0.7	0.9	0.9	1	1.3
	min	0.4	0.5	0.5	0.7	0.7	0.8	1.1
H	min	1	1.2	1.2	1.6	1.6	1.8	2.4
H	max	1.2	1.4	1.4	1.9	1.9	2.1	2.8
per 1000 units ≈ kg		0.033	0.05	0.053	0.11	0.12	0.18	0.36
Nominal Diameter		Φ6	Φ7	Φ8	Φ10	Φ12	Φ14	Φ16
d	min	6.1	7.1	8.1	10.2	12.2	14.2	16.2
d	max	6.5	7.5	8.5	10.7	12.7	14.7	17
n	Nominal Size	2.5	2.5	3	3.5	4	4.5	5
	max	2.65	2.65	3.15	3.7	4.2	4.7	5.2
	min	2.35	2.35	2.85	3.3	3.8	4.3	4.8
h	Nominal Size	1.6	1.6	2	2.2	2.5	3	3.5
	max	1.7	1.7	2.1	2.35	2.65	3.15	3.7
	min	1.5	1.5	1.9	2.05	2.35	2.85	3.3
H	min	3.2	3.2	4	4.4	5	6	7
H	max	3.8	3.8	4.7	5.2	5.9	7.1	8.3
per 1000 units ≈ kg		0.83	0.93	1.6	2.53	3.82	6.01	8.91
Nominal Diameter		Φ18	Φ20	Φ22	Φ24	Φ27	Φ30	Φ36
d	min	18.2	20.2	22.5	24.5	27.5	30.5	36.5
d	max	19	21.2	23.5	25.5	28.5	31.7	37.7
n	Nominal Size	5	6	6	7	7	8	10
	max	5.2	6.2	6.2	7.25	7.25	8.25	10.25
	min	4.8	5.8	5.8	6.75	6.75	7.75	9.75
h	Nominal Size	3.5	4	4	5	5	6	6
	max	3.7	4.2	4.2	5.2	5.2	6.2	6.2
	min	3.3	3.8	3.8	4.8	4.8	5.8	5.8
H	min	7	8	8	10	10	12	12
H	max	8.3	9.4	9.4	11.8	11.8	14.2	14.2
per 1000 units ≈ kg		9.73	15.2	16.5	26.2	28.7	44.3	67.3
Nominal Diameter		Φ39	Φ42	Φ45	Φ48	Φ52	Φ56	Φ60
d	min	39.5	42.5	45.5	49	53	57	61
d	max	40.7	43.7	46.7	50.5	54.5	58.5	62.5
n	Nominal Size	10	12	12	12	14	14	14
	max	10.25	12.25	12.25	12.25	14.25	14.25	14.25
	min	9.75	11.75	11.75	11.75	13.75	13.75	13.75
h	Nominal Size	6	7	7	7	8	8	8
	max	6.2	7.25	7.25	7.25	8.25	8.25	8.25
	min	5.8	6.75	6.75	6.75	7.75	7.75	7.75
H	min	12	14	14	14	16	16	16
H	max	14.2	16.5	16.5	16.5	18.9	18.9	18.9
per 1000 units ≈ kg		71.7	111	117	123	182	193	203
Nominal Diameter		Φ64	Φ68	Φ72	Φ80	Φ90	Φ100
d	min	65	69	73	81	91	101
d	max	66.5	70.5	74.5	82.5	92.5	102.5
n	Nominal Size	14	14	14	14	14	14
	max	14.25	14.25	14.25	14.25	14.25	14.25
	min	13.75	13.75	13.75	13.75	13.75	13.75
h	Nominal Size	8	8	8	8	8	8
	max	8.25	8.25	8.25	8.25	8.25	8.25
	min	7.75	7.75	7.75	7.75	7.75	7.75
H	min	16	16	16	16	16	16
H	max	18.9	18.9	18.9	18.9	18.9	18.9
per 1000 units ≈ kg		218	228	240	262	290	318

Product Tags:

Spring Lock Washers DIN 127

B Type Spring Lock Washers

Carbon Steel DIN 127 Washer

Carbon Steel Blacked Spring Lock Washers DIN 127 With Square Ends - B Type

Galvanization Plain Lock Washer Types Carbon Steel Q235 DIN 9021 ISO 7093-1

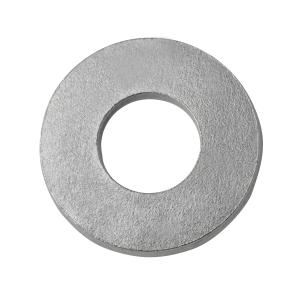

Polishing Plain Washers DIN 9021 ISO 7093-1 Stainless Steel SUS304

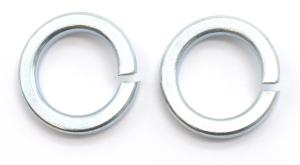

DIN 127 Spring Lock Washer Types Carbon Steel 70# With Square Ends
