High Speed Single Flute End Mill / Wood Cutting Solid Carbide End Mill Cutter

Ask Lasest Price
Model Number :	SF600
Brand Name :	KTC
Certification :	CCC
Price :	Negotiation
Delivery Time :	1-35days
Payment Terms :	T/T, L/C,Paypal...
Supply Ability :	10000pcs/week

Add to Cart

Product Details
Company Profile

High Speed Single Flute End Mill / Wood Cutting Solid Carbide End Mill Cutter

High Speed Single Flute End Mill / Wood Cutting Solid Carbide End Mill Cutter

KTC Single Flute End Mill

Single flute acrylic end mill is available in square end and ball end mill geometries. They are also available in 1, 2 and 3 flute end mill designs. These are the best carbide bits for aluminum milling! ShengWei offers a variety of performance carbide end mills designed for milling aluminum. Single flute acrylic end mill is available in a wide variety of diameter sizes.

A square end milling cutter is also known as a “flat end mill”. The corners of these mills are sharp and generate a 90° angle. They can be single end or double end and they can be made from solid carbide or various compositions of high speed steel. They can be general purpose or high perfomance geometries. They can be used used for plunging, grooving, side milling, face milling, and counter boring. These are the most popular milling cutters in the industry. They are available in a wide variety of diameter sizes.

Specifications:

SF600 Single flute tungsten steel milling cutter adopts domestic high-quality tungsten steel material, bending strength: 3900mpa, particle size: 0.8μm. The cutter adopts special angle design and strict quality control with 100% of self inspection rate and more than 96% of qualified rate. It can be used for ultra deep milling of materials with high speed. The large-scale chip removal groove can ensure the best chip removal effect. Especially suitable for wood, copper, aluminum and other non-ferrous metals.

Material	YL10.2 / K30
WC	90%
Co	10%
TRS	>3900N/mm2
Hardness	>91.5HRA
A.O.L	38.5mm-100mm
Grain size	0.8μm
Upto	HRC55
Flutes No	1 Flute
Suitable for	wood, copper, aluminum, plastic and other materials

Single Flute End Mill Standard Sizes

No.	Name	Edge Dia(mm)	Flute Length(mm)	Shank dia(mm)	Overall Length(mm)
1	Right Hand Helix	0.4	1,1.5,2	3.175	38.5
2		0.5	1.5,2,2.5,3	3.175	38.5
3		0.6	1.5,2,3.0,3.5	3.175	38.5
4		0.8	2 3 4.5	3.175	38.5
5		1.0	1,1.2,3,4,5,6,7	3.175	38.5
6		1.5	3,4 ,6, 8 ,10, 12	3.175	38.5
7		2.0	3,4, 6,8,10,12,17	3.175	38.5
8		2.0	22	3.175	45
9		2.5	3,4,6,8,10,12,17	3.175	38.5
10		2.5	21,22	3.175	45
11		3.0	4,6,8,10,12,15	3.175	38.5
12		3.175	6,8,10,12,15,17	3.175	38.5
13		3.175	22	3.175	45
14		3.175	25,26	3.175	50
15		3.175	32	3.175	55
16		3.175	35	3.175	60
17		3.175	42	3.175	70
18		4	4,6,8,12,15	4	45
19		4	17,22	4	45
20		4	25	4	50
21		4	28	4	55
22		4	32	4	55
23		4	35	4	60
24		4	42	4	70
25		5	17,22,25	5	60
26		6	12,15,17,22,25	6	50
27		6	28	6	55
28		6	32	6	55
29		6	35	6	60
30		6	42	6	70
31		6	52	6	75
32		6	62	6	100
33		8	17,22,25	8	60
34		8	28	8	60
35		8	32	8	65
36		8	37	8	65
37		8	42	8	75
38		8	52	8	100
39		10	25	10	75
40		10	30	10	75
41		10	35	10	75
42		10	42	10	75
43		10	52	10	100
44		10	62	10	100
45		12	25	12	75
46		12	30	12	75
47		12	35	12	75
48		12	42	12	75
49		12	52	12	100

No.	Name	Edge Dia(mm)	Flute Length(mm)	Shank dia(mm)	Overall Length(mm)
1	Left Hand Helix	0.4	0.5,1.2,1.5,2	3.175	38.5
2		0.5	1.1,1.5,2	3.175	38.5
3		0.6	1.5,2,3	3.175	38.5
4		0.8	1.5,2,3,4	3.175	38.5
5		1.0	1,1.5,2,3,4,5	3.175	38.5
6		1.5	1.5,2,3,4,5,6	3.175	38.5
7		2.0	3,4, 6,8,10,12,17	3.175	38.5
8		2.5	3,4,6,8,12,16	3.175	38.5
9		3.0	4,6,8,12	3.175	38.5
10		3.175	8,10,12,15,17	3.175	38.5
11		3.175	22	3.175	45
12		3.175	25	3.175	50
13		4	12,15,17	4	45
14		4	22	4	45
15		4	25	4	50
16		4	20	4	60
17		4	30	4	60
18		5	17,22,25	5	60
19		6	12,15,17,22,25	6	50
20		6	28	6	55
21		6	32	6	55

Product Tags:

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Send your message to this supplier

*From:
Your email address is incorrect!
To: Changzhou Xinpeng Tools Manufacturing Co.,Ltd
*Subject:
Your subject must be between 10-255 characters!
*Message:
For the best results, we recommend including the following details: --Self introduction --Required specifications --Inquire about price/MOQ Your message must be between 20-3,000
Yes! I would like your verified suppliers matching service!

All Categories

High Speed Single Flute End Mill / Wood Cutting Solid Carbide End Mill Cutter

High Speed Single Flute End Mill / Wood Cutting Solid Carbide End Mill Cutter

High Speed Single Flute End Mill / Wood Cutting Solid Carbide End Mill Cutter

one flute end mill

single flute cutter

High Speed Single Flute End Mill / Wood Cutting Solid Carbide End Mill Cutter

You May Like

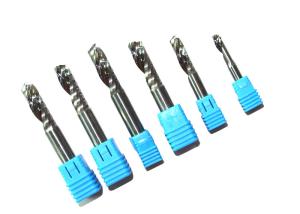

Solid Carbide Single Flute End Mill / One Flute Milling End Mill Cutter

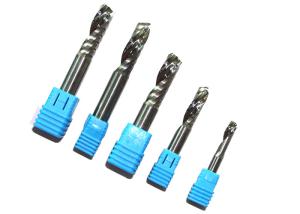

Single Flute Cutter Suitable For Wood Copper Aluminum 0.8μM Grain Size

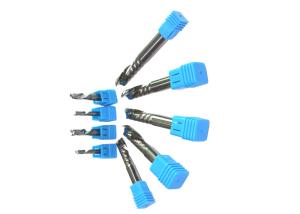

High Speed Single Flute Carbide End Mill Large Scale Chip Removal Groove

10mm 12mm Carbide End Mill Cutter One Flute Non Ferrous Metals Support

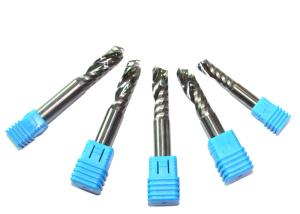

Single Flute High Performance End Mills For Aluminum Copper 0.8μM Grain Size
