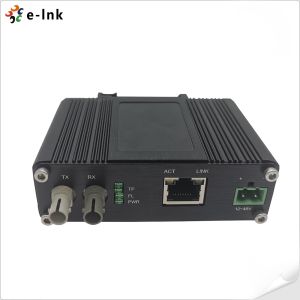

Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter
Model : LNK-IMC10FST-MM
Overview
E-link Mini Industrial 10Base-T Ethernet to 10Base-FL fiber optical
media converter converts your existing
10Base-T Ethernet to a 10Base-FL network with single mode or
multimode fiber optic cable up to 20,000 meters.
It’s a hardened product with wide operating temperature range from
-40°C to 75°C, and ruggedized aluminum
housing. The Ethernet port supports both half-duplex and
full-duplex mode. The rugged hardware design ensures
that your Ethernet equipment can withstand demanding industrial
conditions. The LNK-IMC10FST Series are easy
to mount on a DIN rail or in distribution boxes.
Connect 10 Mbps Ethernet segments to fiber segments without using
crossover cables. With a E-link 10Mbps Media
Converter, you no longer have to deal with mismatched transmit and
receive cable pairs. This converter contains
a switch that senses the type of circuit connected to the UTP port
and automatically configures the port to match.
Because the UTP side is autosensing to MDI/MDI-X, you can use
either a straight or crossed cable to connect a
switch or NIC.
Features
► Auto-MDI/MDIX
► Complies with 802.3 10Base-T and 10Base-FL standards
► Extends network span from up to 2km(Multi mode)
► Interoperable with other 10Base media converters, 10Base,
10Base-T NICs, hubs or switches
► Provides LEDs for easy network monitoring
► Supporting Quality of Service (QoS), ensuring the transmission of
VoIP packets
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature.
Technical Indexes
| Ethernet |
| Standards: | IEEE 802.3 |
| 10 Base-T |
| 10 Base-FL |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| IEEE802.3x Full duplex and flow control |
| Conversion Means: | Store and Forward mode or Cut-Through mode |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| Wavelength: | 850nm |
| Buffer Space: | Built in 128Kb RAM for data buffer |
| Flow Control: | Full duplex: flow control; Half duplex: back pressure |
| Cable Length: | 50/125um or 62.5/125um Multi-mode duplex fiber optic cable for
10Base-FL 100 meters max. for UTP 2000 meters max. for fiber optic Multi-mode |
| Transmission type: | Base band |
| Connection switch: | 2-position 10Base-T switch on RJ-45 side (hub or W/S) |
| Interface |
| Connector: | 1x RJ45 10Base-T |
| Optical Port: | 1 x ST 10Base-FL |
| Electrical and Mechanical |
| Input Power: | 12~48VDC, 2-pin terminal block |
| Power Consumption: | 5W Max. |
| LED Indicators: |
| PWR: | Power Status |
| ACT: | Data LINK Status |
| TP: | Ethernet Status |
| FL: | Fiber LINK Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Environmental |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Regulatory Approvals |
| ISO9001, CE, FCC, RoHS |
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
Ordering lnformation
| Model | Description |
| LNK-IMC10FST-MM | Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter,
multi-mode, 2km, 850nm, ST |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is
included. |
| Power Options | ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
