Product Description:

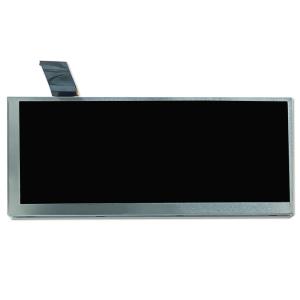

3.99 Inch Bar Type LCD Display 400*960 Pixels IPS LCD Display With
30K LED Lifetime
This Industrial LCD Display Panel is ideal for use in a wide range
of applications, thanks to its impressive features. First, it has
an operating temperature range of -20℃ to 70℃, which means that it
can function optimally in harsh conditions. This makes it an ideal
choice for use in industrial environments where the temperature can
be extreme.
Another impressive feature of this Bar Type LCD Display is its
luminance. With a luminance of 350, it delivers clear and bright
images even in environments with high ambient light. This makes it
an ideal choice for use in outdoor applications where visibility is
critical.
The contrast ratio of this BOE LCD Display is also impressive,
standing at 1500:1. This ensures that the display delivers sharp
and crisp images with accurate color reproduction. This makes it an
ideal choice for use in applications where image quality is
critical.
The view direction of this Industrial LCD Display Panel is IPS,
which means that it offers a wide viewing angle. This makes it
possible for multiple people to view the display from different
angles without experiencing any distortion or loss of image
quality.
Lastly, this Bar Type LCD Display has a screen size of 3.99 inches,
which makes it perfect for use in applications where space is
limited. This makes it an ideal choice for use in equipment with
limited space, such as handheld devices and medical equipment.
In conclusion, the Bar Type LCD Display is an outstanding product
that is designed to meet the needs of the Industrial LCD Panel
Display market. With its impressive features, including its
operating temperature range, luminance, contrast ratio, IPS view
direction, and screen size, it is an ideal choice for use in a wide
range of applications.
Features:
- Product Name: Bar Type LCD Display
- Active Area(mm): 22.7*42.72
- Luminance: 350
- Operating Temp: -20℃ To 70℃
- Module Size(mm): 25.8*49.72*1.4
- Connection: FPC-Connector
Technical Parameters:
| Product Name | Bar Type LCD Display |
| Screen Size | 3.99 Inch |
| Physical Resolution | 400*960 |
| Module Structure | LCD |
| Module Size(mm) | 25.8*49.72*1.4 |
| Active Area(mm) | 22.7*42.72 |
| Luminance | 350 |
| Contrast Ratio | 1500:1 |
| Operating Temperature | -20℃ To 70℃ |
| Storage Temperature | -30℃ To 80℃ |
| LED Lifetime (hrs) | 30K |
Applications:
This Bar Type LCD Display is a TFT display with an IPS panel that
provides clear, crisp images and vibrant colors. The RGB LCD
display has a module size of 25.8*49.72*1.4 mm, making it a
versatile display for a variety of applications. The display has a
luminance of 350, which allows it to be easily read in a variety of
lighting conditions. The LED lifetime is 30K hours, ensuring a
long-lasting display.
The FPC-connector connection makes it easy to install and integrate
into your existing system. The display is suitable for use in a
variety of scenarios, such as advertising displays, public
transportation displays, and industrial displays. The IPS display
is particularly useful for applications where the viewing angle is
critical, such as in medical devices, automotive displays, and
gaming displays.
The Bar Type LCD Display is designed to operate in a wide range of
temperatures, with a storage temperature range of -30℃ to 80℃. This
makes it suitable for use in harsh environments, such as outdoor
displays or in industrial settings. The display is also
energy-efficient, making it an environmentally-friendly choice for
your display needs.
Customization:
Size: From 1.77 inch to 17 inch
Imteraface: SPI ；MCU; RGB; MIPI; LVDS; EDP
Brightness: 200-1000 nits
Lifetime: 10k-50k
Touch Screen: PCAP; Capacitive touch screen, Resistive Touch screen
Wide Temperature: -40℃~85 ℃
Support and Services:
Our Bar Type LCD Display product comes with a comprehensive
technical support and services package, including:
- Product installation and setup guidance
- Product troubleshooting and issue resolution
- Product repair and maintenance services
- Product warranty and replacement services
- Technical documentation and training materials
- 24/7 customer support and assistance
Our team of experienced technicians and support staff are dedicated
to helping you get the most out of your Bar Type LCD Display.
Whether you need help with initial installation or ongoing
maintenance and support, we are here to assist you every step of
the way.
Some Classic Products in our company for reference( All products
can be tailored according to your requirements)
Size
(inch) | P/N | Resolution | Viewing
angle | Active Area
(mm) | Module Size
(mm) | Interface | OP℃ | Luminance(nit) |
| 2 | 90-02005-001 | 480*360 | IPS | 40.8*30.6 | 46.1*40.96*2.54 | RGB | -20~70 | 200-500 |
| 2 | 90-02009-001 | 240*320 | IPS | 30.6*40.8 | 36*51.6*2.45 | MCU/RGB | -20~70 | 200-500 |
| 3.5 | 90-03507-001 | 320*480 | IPS | 48.96*73.44 | 60.2*97.7*3.39 | MCU | -20~70 | 200-500 |
| 3.5 | 90-03521-BH1 | 1240*800 | IPS | 74.4*48 | 78.15*56.05*3.75 | MIPI | -20~70 | 200-500 |
| 4.3 | 90-04304-001 | 480*272 | TN | 95.04*53.86 | 105.5*67.2*3 | RGB | -20~70 | 300-600 |
| 5 | 90-05024-001 | 720*1280 | IPS | 61.78*109.82 | 65.35*118.80*1.65 | MIPI | -20~70 | 300-600 |
| 7 | 90-07018-IH2 | 1024*600 | IPS | 154.21*85.92 | 164*97*2.6 | MIPI | -20~70 | 300-600 |
| 7 | 90-07005-001 | 800*480 | TN | 154.08*85.92 | 164.9*100*5.7 | RGB | -20~70 | 300-600 |
| 8 | 90-08004-BS1 | 800*1280 | IPS | 107.64*172.22 | 114.60*184.10*2.60 | MIPI | -20~70 | 300-600 |
| 9 | 90-09001-BH1 | 1024*600 | IPS | 196.608*114.15 | 210.7*124.6*5 | LVDS | -20~70 | 300-600 |
| 9.7 | 90-09701-001 | 1024*768 | TN | 196.61*147.46 | 210.2*164.2*4.9 | LVDS | -20~70 | 300-1000 |
| 10.1 | 90-10116-IH1 | 1280*800 | IPS | 216.96*135.6 | 229.46*149.1*2.5 | LVDS | -20~70 | 300-1000 |
| 10.3 | 90-10301-BS3 | 720*1600 | IPS | 106.92*237.6 | 115*250.8*4.6 | MIPI | -20~70 | 300-1000 |
| 10.25 | 90-10251-001 | 1280*480 | IPS | 243.84*91.44 | 255.6*105.82*1.254 | LVDS | -20~70 | 300-1000 |
| 10.4 | 90-10402-001 | 1024*768 | IPS | 211.2*158.48 | 225.8*174.3*5.6 | LVDS | -20~70 | 300-1000 |
| 12.1 | 90-12101-HH1 | 1024*768 | IPS | 245.76*184.32 | 260.5*202*10.5 | LVDS | -20~70 | 300-1000 |
| 13.3 | 90-13301-BH1 | 1920*1080 | IPS | 293.8*165.2 | 305.2*178.2*2.6 | LVDS | -20~70 | 300-1000 |
| 15 | 90-15001-AH1 | 1024*768 | TN | 304.128*228.096 | 326.5*253.5*12 | LVDS | -20~70 | 300-1000 |
| 15 | 90-15002-BH1 | 1600*1200 | IPS | 304.88*228.5 | 326.58*252.98*11 | LVDS | -20~70 | 300-1000 |
| 15.6 | 90-15601-AH2 | 1920*1080 | IPS | 344.16*193.59 | 350.70*205.27*3.00 | EDP | -20~70 | 300-1000 |
| 17.3 | 90-17301-BH1 | 1920*1080 | IPS | 381.888*214.812 | 389.888*227.012*3.5 | LVDS | -20~70 | 300-1000 |
