2.0" inch TFT LCD QVGA 240x320 ST7789V IC with SPI 4 BIT interface TFT LCD display module
TXW200055S0 is a 2.0-inch IPS TFT LCD display with a resolution of
240 * 3RGB (H) X320 (V) pixels. Among similar products, it is a
very cost-effective LCD module.
Product Quick Details:
1. LCD Size: 2.0” inch TFT
2. Resolution: 240x320 QVGA
3. Viewing Angle: 12:00
4. Outline Dimension: 34.6*47.83*2.1mm
5. LCD Driver IC: ST7789V
6. LCD Interface Type: SPI 4 BIT Interface
7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
8. Touch Panel: Without Touch Screen (Customizable)
| Product: | 2.0"inch TFT LCD | Touch Screen: | Without Touch Screen (Customizable) |
|---|
| Resolution: | 240x320 Dots | Cover Glass Dimension: | Without (Customizable) |
|---|
| Viewing Direction: | 12:00 | Interface: | SPI 4 BIT Interface |
|---|
| Pin Number: | 10 Pins | Connection: | Plugging (customizable) |
|---|
| Surface Luminance: | 600 Cd/m²(nits) | LED Lifetime: | 30,000 Hours |
|---|
| Driver IC: | ST7789V | Compliance: | CE & FCC & RoHS Compliant |
|---|

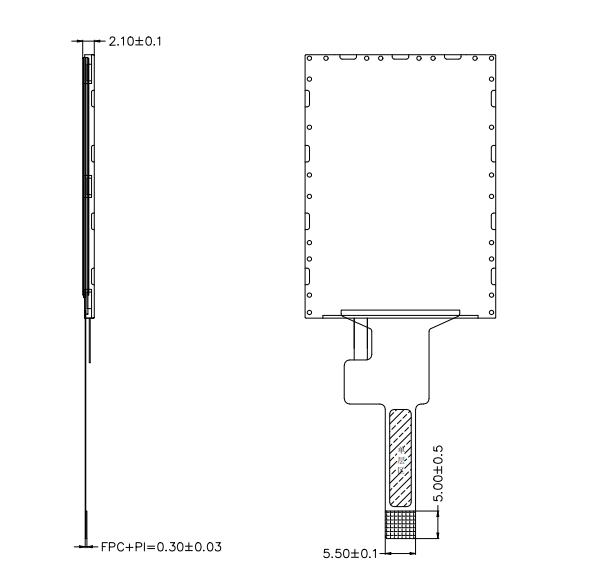

2.0" inch TFT LCD Display Drawing
Module Function Description
| Pin No. | Symbol | Functional |
| 1 | GND | Power Ground |
| 2 | VCC | power supply for DC/DC circuit |
| 3 | RESET | Reset signal input terminal. Active at ‘L’. |
| 4 | CS | Chip select signal input pin |
| 5 | DC | Register selection signal. |
| 6 | WR | Write strobe signal. |
| 7 | RD | Read strobe signal. |
| 8 | SDA | Serial data input/output pin. |
| 9 | LEDA | Power supply for backlight anode input terminal. |
| 10 | LEDK | Power supply for backlight cathode input terminal. |
Absolute Maximum Rating
| Characteristics | Symbol | Min. | Max. | Unit |
| LCM Operating Temperature | TOPR | -20 | +60 | °C |
| LCM Storage Temperature | TSTG | -30 | +70 | °C |
| Humidity | RH | -- | 90 | % |
Back-Light Unit Characeristics
The back-light system is an edge-lighting type with 3 white LEDs.
The characteristics of the back-light are shown in the following
tables.
| Characteristics | Symbol | Min. | Type | Max. | Unit | Notes |
| Forward Voltage | VF | 2.8 | -- | 3.0 | V | - |
| Forward current | IF | -- | 60 | -- | mA | - |
| Luminance(With LCD) | Lv | -- | TBD | -- | cd/m2 | - |
| LED life time | N/A | -- | 30,000 | -- | Hr | Note 1 |
Note:
- The “LED life time” is defined as the module brightness decrease to
50% of original brightness at IL=20mA/LED. The LED life time could be decreased if operating IL is larger than 25mA/LED.
Reliability Test Item
| No. | Test Item | Test Condition | Notes |
| 1 | High Temp. Storage | +70°C / 96H | 1. Functional test isOK. Missing Segment,short, unclear segment non-display,display
abnormally and liquid crystal leakare un-allowed. 2. No low temperature bubbles,end seal loose andfall, frame rainbow.
|
| 2 | Low Temp. Storage | -30°C / 96H |
| 3 | High Tempe. Operating | +60°C / 96H |
| 4 | Low Tempe. Operating | -20°C / 96H |
| 5 | High Temperature /Humidity storage | 50°C x 90%RH /96H |
| 6 | Thermal and cold shock | Static state, -20℃(30min) ~60℃ (30min),10 cycles |

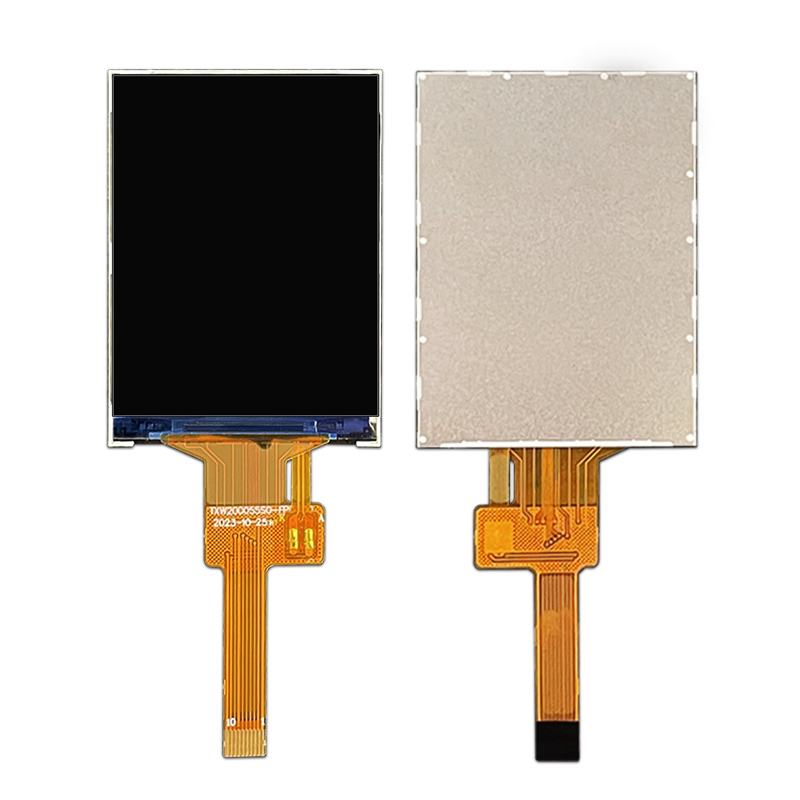

2.0" inch TFT LCD Display Real Product Image
Projected Capacitive (PCAP) touch screen
Projected Capacitive (PCAP) touch technology offers a fast and
sensitive response and professional-grade reliability combined. The
SAEF
technology projected capacitive touch screen is designed for strict
industrial, medical, and automotive applications. We can also
combine PCAP touch screens with liquid crystal displays (LCDs),
which is an integrated embedded solution that helps simplify the
supply chain and assembly.
Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF
Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232

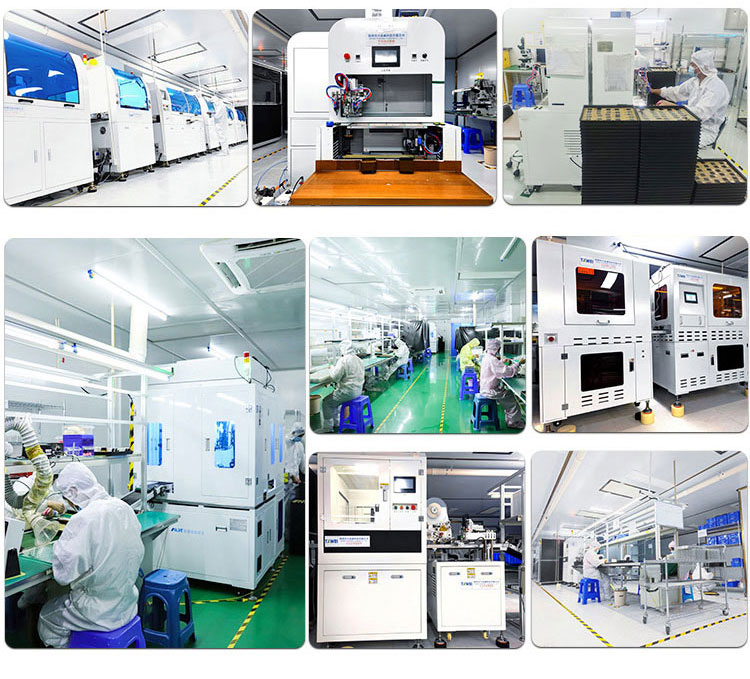

Factory Facilities and Certificates
Why Choose us
1. We provide LCD Display custom solution
Does your product have special application requirements, electrical
specifications, optical specifications, touch features, or
mechanical dimensions that require customized displays? Tian Xianwei can meet your custom LCD requirements.
2. Total solutions for Touch screen and display
Are you worried about assembling the touch screen and display
screen? Tian Xianwei can provide custom and standard touch screen including Resistive
and Capacitive multi-touch solutions including air & optical
bonding service as well.
3. Commitment to quality reliability
Tian Xianwei is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, CE,FCC
and other environmental rules in global markets. We ensure quality
through the manufacturing IQC,PQC and OQC management, reliability
and aging testing.
4. Long-term supply
Under normal circumstances, the products we recommend can be
supplied for more than 5 years. If there are special needs, we will
make alternative plans in advance to ensure your long-term supply
requirements.
Search keyword: tft 2.0", 2.0 tft lcd, 2.40" tft lcd, 2.0 inch tft
lcd, tft lcd 2.0, 2.0 tft display, 2.0" tft display, 2.0 inch tft
display, tft display 2.0 inch, tft display 2.0", 2.0 inch tft lcd
display, 2.0" tft screen, 2.0 inch tft screen, tft screen 2.0 inch,
tft screen 2.0", 2.0 inch tft lcd screen
The TFT LCD Screen is a cutting-edge display module that offers
exceptional visual performance and advanced technology for a wide
range of applications. This high-quality display screen is designed
to provide users with an unparalleled viewing experience, featuring
a number of impressive attributes that make it stand out from other
LCD screens on the market.
Superior Display Quality
The TFT LCD Screen boasts a high resolution of 240*3RGB(H)X320(V),
ensuring that every image and video displayed is crystal clear and
sharp. With this display, users can enjoy vivid and lifelike
colors, making it perfect for viewing high-definition content. The
TFT Active Matrix drive element ensures that the screen maintains
its high-quality display, even during fast-moving scenes.
Enhanced Visuals with TFT Technology
The TFT LCD Screen utilizes advanced TFT (thin film transistor)
technology, which allows for faster response times and better
contrast and color accuracy. This results in a more realistic and
dynamic visual experience, making it ideal for gaming, video
editing, and other graphics-intensive tasks.
User-friendly Design
The TFT LCD Screen has been designed with the user in mind,
offering a user-friendly interface and simple controls for easy
navigation. The 10 Lcm pin n count allows for easy connectivity and
compatibility with a variety of devices, making it a versatile and
convenient display option for any setup.
High Brightness and Wide Viewing Angle
Featuring a brightness of 600cd/m², the TFT LCD Screen ensures that
images are always bright and clear, even in well-lit environments.
Additionally, the screen offers a wide viewing angle, meaning that
colors and details remain consistent, no matter where you are
viewing the screen from.
Energy Efficient and Environmentally Friendly
The TFT LCD Screen is designed to be energy efficient, consuming
less power than traditional LCD screens, making it an
environmentally friendly choice. This not only helps reduce energy
costs, but also reduces the carbon footprint of your setup.
Conclusion
The TFT LCD Screen is a top-of-the-line display module that offers
exceptional visual performance, advanced technology, and
user-friendly design. With its high resolution, advanced TFT
technology, and energy efficiency, this display is perfect for a
wide range of applications, from gaming and entertainment to
professional and industrial use. Upgrade your viewing experience
with the TFT LCD Screen today.
Features:
- Product Name: TFT LCD Screen
- Lcm pin n count: 10pin
- Backlight current: 3
- Brightness: 600cd/m²
- Viewing direction: ALL O'CLOCK
- IC/LCM Driver IC: ST7789V
- TFT Display
- LCD Display module
- TFT Screen Display
Technical Parameters:
| ITEM | Sandard value | Unit |
| Model Number | TXW200055S0 | |
| size | 2.0 | Inch |
| LCD Type | Normally black | -- |
| Drive element | TFT active matrix | -- |
| Number of pixels | 240*3RGB(H)X320(V) | Dots |
| Pixel arrangement | RGB stripe | -- |
| Pixel Pitch (W*H) | 0.1275*0.1275 | mm |
| Active area | 30.6(H) *40.8 (V) | mm |
| Mechanical OutlineSize(W*H*T) | 34.6*47.83*2.1 | mm |
| Viewing direction | ALL O’CLOCK | - |
| LCM Driver IC | ST7789V | - |
| LCM interface | SPI 4 BIT Interface | - |
| Lcm pin n count | 10 | |
| Backlight leds | 3 | pcs |
| Backlight current | 60 | mA |
| Backligh voltage | 2.8-3.3 | V |
| operating temperature | -20+70 | ℃ |
| storage temperature | -30+80 | ℃ |
| Lumens degrees | 600 | cd/㎡ |
Applications:
TXWEI TFT LCD Screen
