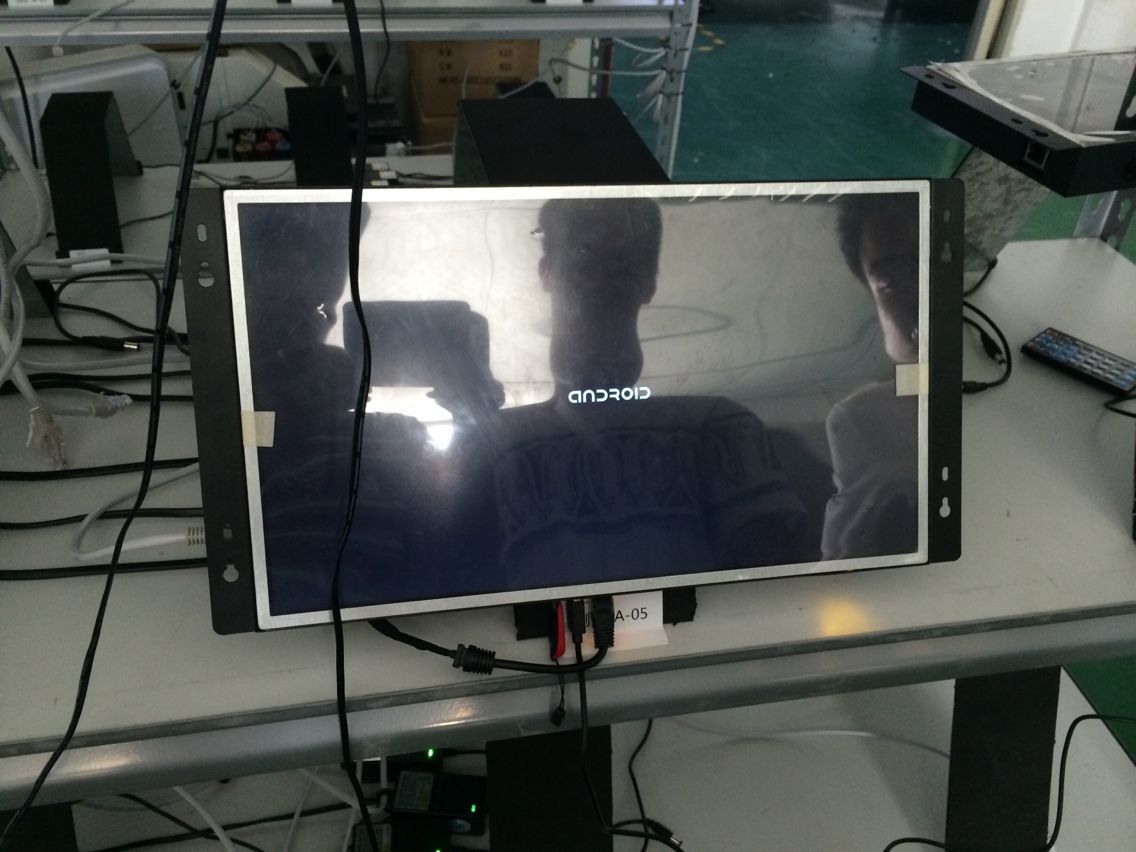

10inch POE WIFI AD Player Monitor High Resolution Support 3G
Specifications:
Technical Parameter for LCD Panel | Panel Size | 10 POE WIFI Digital Signage |
Aspect Ratio | 16:9 |
Active Area | 186.08mm(H) x 178.80mm(V) |
Max. Resolution | 1280*800 |
Dot Pitch | 0.0745mm(H) x 0.2235mm(W) |
Number of Color | 16.7M |
Brightness | 350cd/m2 |
Contrast Ratio | 300:1 |
Responsive Time | 8ms |
Panel Life | above 50000 hours |
Storage Medium | Flash memory card | 2gb to 36gb for the capacity |
Support Ad files | Video formats | MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1) |
Audio formats | MP3 |
Photo formats | JPG |
OSD Language | English, Chinese, French, German, Italian, Spanish,Arabic |
Audio output | stereo L/R, 5W*2, 8Ω |
Power supply | AC 110V - 240V, 50/60HZ |
Storage Temperature | -7 to 65 Celsius degree |
Normal Working Temperature | -5 to 65 Celsius degree |
10inch POE Digital Signage Player : POE Digital Player ; POE WIFi
Monitor
Functional description:
1. Support PAD LAN or Wan in real-time monitoring and operation;
2. Real-time MMS streaming media television, RSS news feeds: Stock,
The exchange rate, Cars, Women, Entertainment, Finance, Military,
Sports, Science and technology news;
3. B/S structure: HTTP web browser/server architecture, all
operations are based on cloud computing, the server software is
powerful;
4. Layout template: provide the layout of the various areas and
automatic information area, including images, video and subtitles,
weather forecast, news area;
5. Programming: support program editing, Support Random,inter-cut
and as per demand broadcasting;
6. Terminal management: support equipment grouping function, can be
unified control according to the terminal and grouping;
7. Configuration management: according to the grouping or terminal
set the configuration of the terminal, such as network connections,
time of shutup or shutdown, volume, what time to upgradeupgrade,
etc;
8. The system state: can record abnormal alarm information, provide
the system monitoring information;
9. Playing status: can examine a file within a certain time period
in a group or a terminal playing number and detailed information;
10. Safety management, can be set up a role permissions, can give a
account set up multiple roles;
11. Terminal software is based on Microsoft winCE operating system
6.0, support for almost all the multimedia video and image format,
support 1080p video decoding,video output 480p/720p/1080p/2160p;
12. Terminal can display abundant multimedia elements, including
video, music, pictures, scrolling marquee, weather forecasting, RSS
news, FLASH, PPT, WORD, EXCEL, etc.;
13. According to a server-side program, automatically set into a
landscape or portrait;
14. Support time-sharing volume, period of time to set the volume;
15. Support time switch machine and the time switch panel, can be
set switch machine time, and only switch screen time each day;
16. Support regular upgrade, according to the time period,can
download program and system application;
17. Support infrared remote operation;
18. Material: tempered glass + wood frame + Metal plate;
19. Built-in speaker: 5w * 2;
Note: before using the machine, please ensure that the local
network has covered or normal.
Applications:
Business Organizations | supermarket, large-scale shopping malls, exclusive agency, chain
shops, large-scale sales, star-rated hotels, restaurants, travel
agencies, pharmacy. |
Financial Organizations | Banks, negotiable securities, funds, insurance companies,
pawnshops;
Non-profit Organizations: Telecommunications, post offices,
hospital, schools; |
Public Places | subway, airports, stations, gas stations, toll stations,
bookstores, parks, exhibition halls, stadiums, museums, convention
centers, ticket agencies, HR market, lottery centers; Real Estate
Property: Apartments, villas, offices, commercial buildings, model
rooms, property brokers; |
Entertainments | Movie theaters, fitness halls, country clubs, clubs, massage rooms,
bars, cafes, Internet bars, beauty shops, golf course |
Competitive Advantage:
Skyvision ,a experienced digital photo frame ;video card ;acrylic
product manufacture , with acrylic Carve, LOGO print , assemble
coordinated process
All digital photo frame has single color box (can
customized),screen start image can be customized by your company
logo, easy fixed displayer by vesa hole 75*75mm,all kind of acylic
display can be customized with screen
LCD AD player
