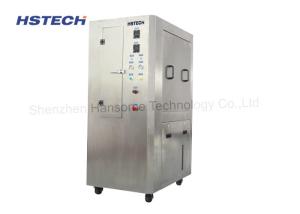

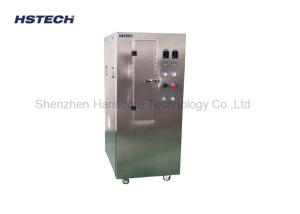

Pneumatic SMT Stencil Cleaning Machine with Adjustable Cleaning and
Drying Time
Introduction
This machine used to cleaning stencil, steel mesh, copper screen,
gule screen, etc SMT process screens.
Features
1, Full pneumatic power, connect with the air compressor, don't
need connect the 200V or 110V voltage.
2, The whole process including cleaning and drying.
3, The machine has the timer to set the show the cleaning and
drying time, also has the pressure gauge to show the cleaning and
drying pressure.
4, The machine also equipped with a counter, can counting the
cleaning screen quantities.
5, Easy operation, after setting the cleaning and drying, press the
start to begin the process.
6, Equipped with a emergency stop button, press the button, the
machine will stop working if any error.
7, Whole machine made of stainless steel, much durable, resist hurt by acid and alkali cleaning chemistry.
8, Using high quality bump and air source filter, the air won't
dmage the stencils.
9, 3 Level high precision filter system, the cleaning solvent can
reuse many times without damage.
Specification
| Model | HS-600 |
| Product name | Screen printer stencil cleaner |
| Machine metarial | Stainless steel, anti-fire, explosion-proof |
| Power | Pneumatic |
| Application | Stencil,cooper screen,gule screen |
| Stencil size | standard 29inch and below |
| Cleaning solvent | Alcohol |
| Cleaning liquid capacity | Max 45L,Min20L |
| Best cleaning fluid using volume | 40L |
| Liquid consumption | 120ml/pc |
| Cleaning method | Rotary double side pressure injection and high pressure air |
| Cleaning time | 2~4 Min |
| Drying time | 2~5 Min |
| External air supply | 0.4Mpa~0.6Mpa |
| Consumer air quantity | 400~600L/Min |
| Air outlet size | φ125*25mm |
| Solder dross filter mode | 3 level filter(10um,5um,1um) |
| Weight | 250kg |
| Machine dimension | 980MM(L)*700MM(W)*1730MM(H) |
