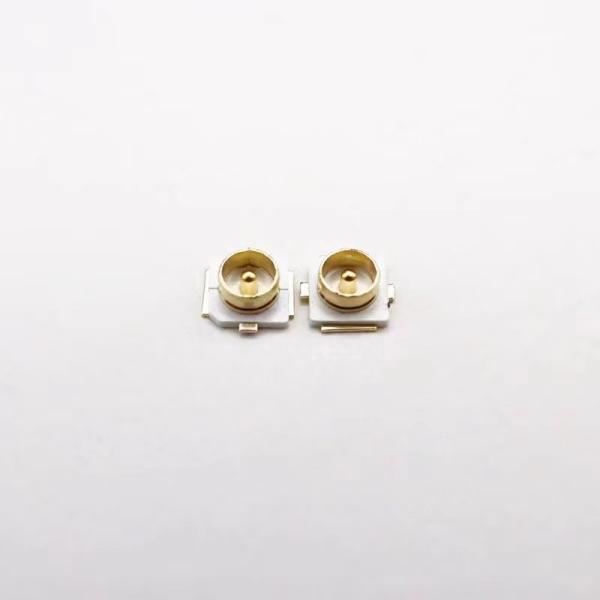

One generation High Power RF Connectors IPEX/MHF/UFL SMD RF Coaxial
For PCB
Product Details:
| Product name: | DALEE RF Connector |
| Secification: | one generation |
| Type : | Female |
| Certification: | ISO9001,UL,ROHS and the latest REACH |
| Voltage Rating: | 60 VAC |
| Operating Temprature: | -40℃ - +85 ℃ |
| Nominal Characteristic Impedance: | 50 ohm |
| Applicable Frequency: | DC~6 GHz |
| Vspr: | 1.3 MAX.(DC~3GHz). 1.5 MAX.(3~6GHz) |
| Contact plating : | 1u’’/1.5u’’ |
| Grounded plating: | 50u’’ MIN.Nickel underplating |
| Application: | Routers |
Application:
This SMT type micro coaxial RF Rec .products are designed for
mobile phones ,Wireless LAN ,Mini –PCI ,Bluetooth , PDA ,GPS
,electronic measuring instruments,etc.
Technology parameters :
1, Voltage Rating : 60VAC(R,M.S)
2 Frequency Range: DC-6G HZ
3 Nominal characteristic impedance :50+/- Ohm
4 Operating temperature range : -40°C~+90°C
5 Operating Humidity :95%R.H.MAX
Rating :
1, Initial Insulation Resistance : 500M ohm
2, Contact Resistance :
inner contact : 20 -25 milliohm Max.(Inial )
outer contact 10 -15 milliohm Max.(Inial )
3, Withstand Voltage : 200V AC 1 MIN
4, V.S.W.R: : 1.3 Max (0-6GHz)
Payment term and delivery:
1. MOQ:1000pcs.
2. Trade Terms: FOB Shenzhen or EXW.
3. Payment term: 100% T/T in advance before production.
4. Payment way: T/T, Paypal , Western Union or others method.
5. Samples: Samples is avaliable to check the quanltiy &
specification,and it is free for 1-30 pcs.
Dalee Connector Advantages:
1, One stop service of connectors with high quality and best service
after sales .
2, Strong R&D team specialized in connector and model design.
3, Quality certification ,including ROHS,SGS,ISO9001 and UL
certification.
4, More than 10 year's experience in the electronic business.
5, Strict shipping ,100% tested before the delivery
6, we also can provide the customized products as the request of
clients
